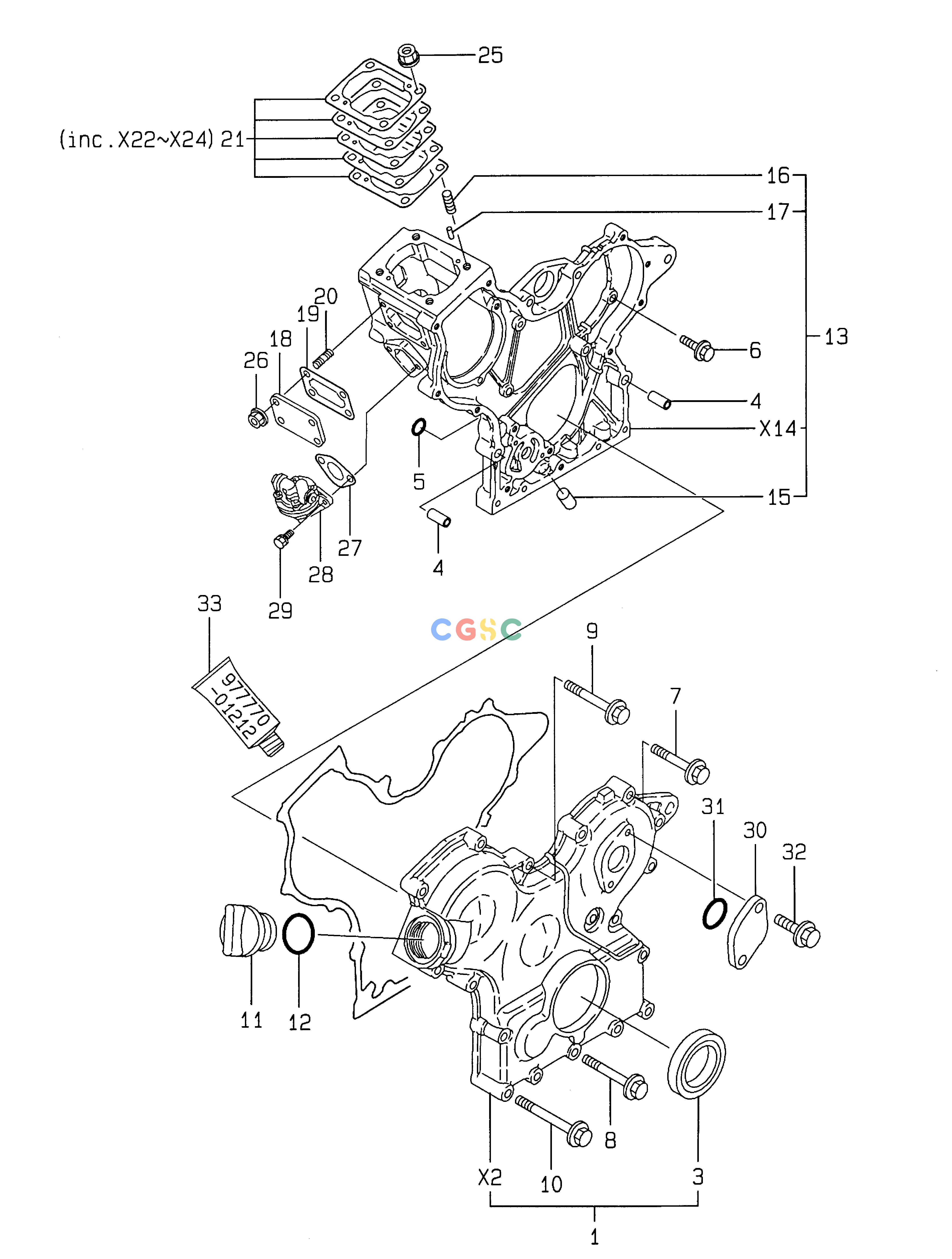

斗山零件查询TIMING GEAR HOUSING SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
119260-01590
|
[1] |
GEAR CASE COVER ASS'Y
|
|
| 10. |
26106-060652
|
[6] |
BOLT M6X65
|
|
| 11. |
124160-01751
|
[1] |
COVER;FILLER
|
|
| 12. |
24311-000320
|
[1] |
O-RING
|
|
| 13. |
119305-01490
|
[1] |
HOUSING;GEAR
|
|
| 14. |
119305-01500
|
[1] |
HOUSING;GEAR
|
|
| 15. |
119260-01510
|
[1] |
PLUG
|
|
| 16. |
121450-01560
|
[4] |
STUD M8X22
|
|
| 17. |
22351-040010
|
[2] |
PIN;SPRING
|
|
| 18. |
119660-01551
|
[1] |
COVER
|
|
| 19. |
119660-01562
|
[1] |
GASKET
|
|
| 2. |
119260-01520
|
[1] |
COVER;GEAR HOUSING
|
|
| 20. |
119660-01570
|
[4] |
STUD M6X12
|
|
| 21. |
119305-01950
|
[1] |
PACK;SHIM
|
|
| 22. |
119305-01930
|
[2] |
SHIM T=0.2
|
|
| 23. |
119305-01940
|
[2] |
SHIM T=0.3
|
|
| 24. |
119305-01960
|
[1] |
SHIM T=0.5
|
|
| 25. |
194990-22050
|
[4] |
NUT;WASHER
|
|
| 26. |
26366-060002
|
[4] |
NUT M6
|
|
| 27. |
121520-01851
|
[1] |
GASKET
|
|
| 28. |
119600-52021
|
[1] |
PUMP ASS'Y;FUEL FEED
|
|
| 29. |
26014-060202
|
[2] |
BOLT M6X20
|
|
| 3. |
119620-01800
|
[1] |
SEAL;OIL
|
|
| 30. |
121023-01550
|
[1] |
COVER;BLIND
|
|
| 31. |
24341-000240
|
[1] |
O-RING
|
|
| 32. |
26106-060182
|
[2] |
BOLT M6X18
|
|
| 33. |
977770-01212
|
[1] |
GASKET;LIQUID
|
|
| 4. |
119660-01911
|
[4] |
PIPE;KNOCK
|
|
| 5. |
24311-000120
|
[2] |
O-RING
|
|
| 6. |
26106-060162
|
[5] |
BOLT M6X16
|
|
| 7. |
26106-060302
|
[5] |
BOLT M6X30
|
|
| 8. |
26106-060402
|
[3] |
BOLT M6X40
|
|
| 9. |
26106-060502
|
[4] |
BOLT M6X50
|
|
![]()
