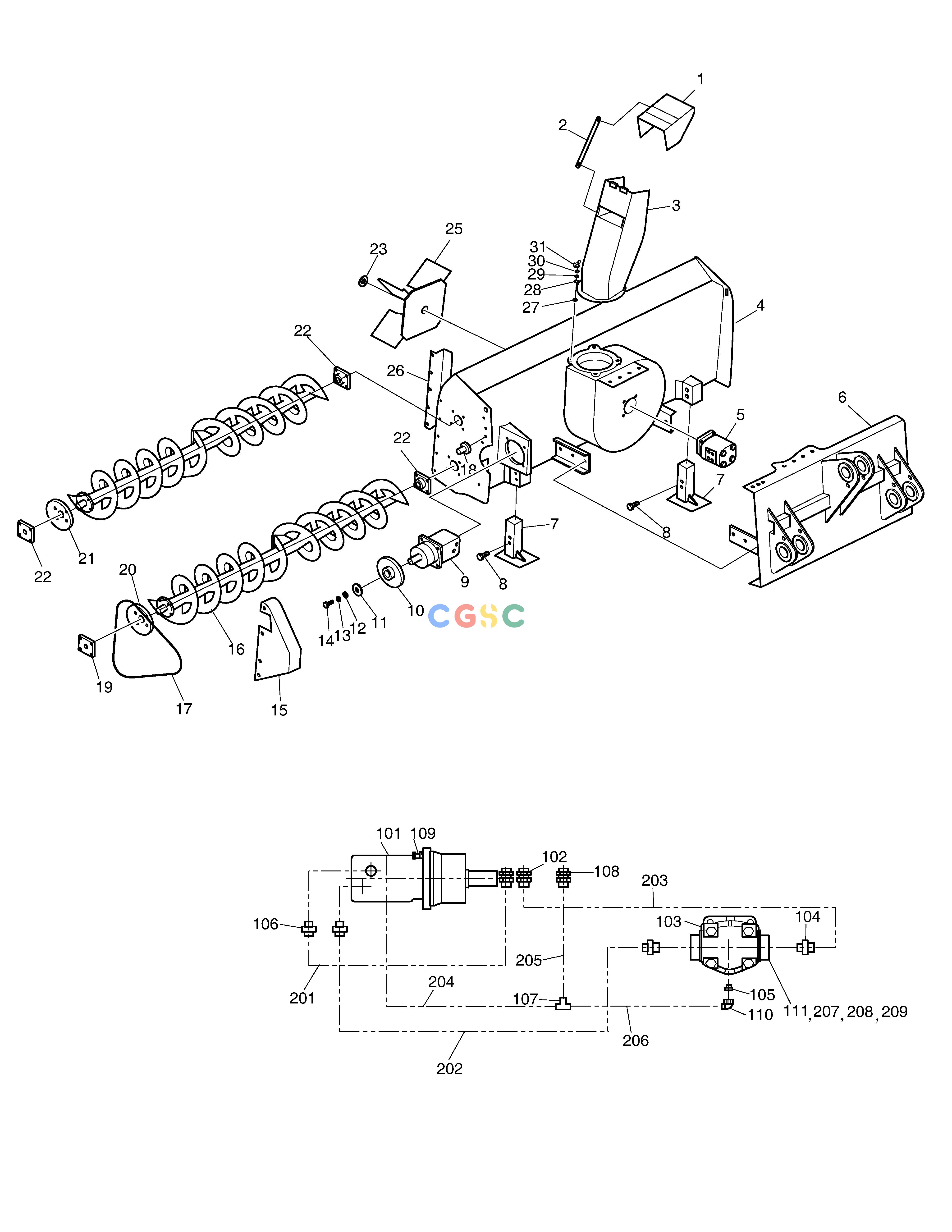

斗山零件查询SNOW BLOWER-DUAL SHAFT SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230101-00264
|
[1] |
SNOW BLOWER
|
|
| 1. |
110508-20631
|
[1] |
COVER,UPPER
|
|
| 10. |
200108-00256
|
[1] |
SPROCKET
|
|
| 101. |
300506-00427
|
[1] |
MOTOR
|
|
| 102. |
430216-00399
|
[2] |
JOINT
|
|
| 103. |
300506-00426
|
[1] |
MOTOR
|
|
| 104. |
430216-00400
|
[2] |
JOINT
|
|
| 105. |
430216-00401
|
[1] |
JOINT
|
|
| 106. |
430216-00402
|
[2] |
JOINT
|
|
| 107. |
430216-00403
|
[2] |
JOINT
|
|
| 108. |
430216-00404
|
[4] |
JOINT
|
|
| 109. |
430216-00405
|
[2] |
JOINT
|
|
| 11. |
250201-03311
|
[1] |
PLATE
|
|
| 110. |
430206-00011
|
[1] |
BEND
|
|
| 111. |
430215-01115
|
[1] |
FLANGE
|
|
| 12. |
S5010813
|
[1] |
WASHER;PLAIN
|
|
| 13. |
S5102803
|
[1] |
WASHER
|
|
| 14. |
S0562766
|
[1] |
BOLT
|
|
| 15. |
110508-20632
|
[1] |
COVER
|
|
| 16. |
850224-00144
|
[2] |
REAMER
|
|
| 17. |
130301-00585
|
[1] |
CHAIN
|
|
| 18. |
130206-00021
|
[1] |
TENSIONER
|
|
| 19. |
130712-01711
|
[3] |
SHAFT
|
|
| 2. |
250115-00108
|
[1] |
PLATE,CONNECTING
|
|
| 20. |
200108-00257
|
[1] |
SPROCKET
|
|
| 201. |
420108-01232
|
[6] |
HOSE
|
|
| 202. |
420108-01233
|
[6] |
HOSE
|
|
| 203. |
420108-01234
|
[2] |
HOSE
|
|
| 204. |
420108-01235
|
[2] |
HOSE
|
|
| 205. |
420108-01236
|
[1] |
HOSE
|
|
| 206. |
420108-01237
|
[2] |
HOSE
|
|
| 207. |
120106-00707
|
[8] |
BOLT,HEX
|
|
| 208. |
120810-00234
|
[8] |
WASHER,PLAIN
|
|
| 209. |
120810-00235
|
[8] |
WASHER,REBOUND
|
|
| 21. |
200108-00258
|
[1] |
SPROCKET
|
|
| 22. |
130712-01712
|
[1] |
SHAFT
|
|
| 23. |
250201-03312
|
[1] |
PLATE
|
|
| 25. |
150111-00254
|
[1] |
FLYWHEEL
|
|
| 26. |
250201-03313
|
[1] |
PLATE
|
|
| 27. |
250121-00108
|
[4] |
PLATE,SHIM
|
|
| 28. |
250121-00109
|
[4] |
PLATE,SHIM
|
|
| 29. |
S5010616
|
[4] |
WASHER
|
|
| 3. |
420202-00405
|
[1] |
PIPE,CONNECTION
|
|
| 30. |
S5102606
|
[4] |
WASHER,SPRING
|
|
| 31. |
120318-00002
|
[4] |
NUT,BUTTERFLY
|
|
| 4. |
110506-00269
|
[1] |
COVER,ENGINE
|
|
| 5. |
300506-00426
|
[1] |
MOTOR
|
|
| 6. |
110406-03462
|
[1] |
BRACKET
|
|
| 7. |
101534-00426
|
[2] |
LEG
|
|
| 8. |
120501-03207
|
[2] |
PIN
|
|
| 9. |
300506-00427
|
[1] |
MOTOR
|
|
![]()
