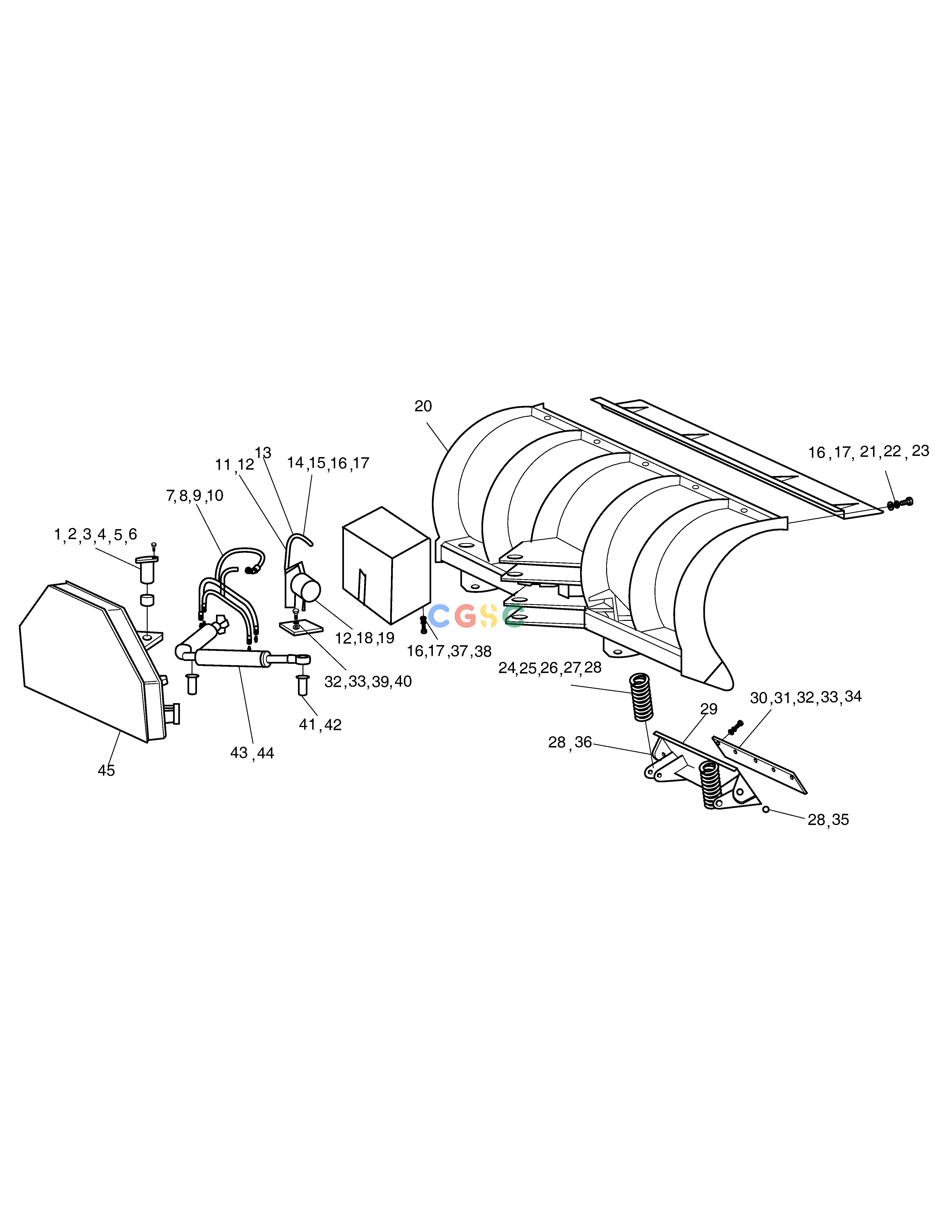

斗山零件查询SNOW BLADE-ELECTRIC & QC SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230101-00280
|
[1] |
SNOW BLADE;QC ELE;5T
|
|
| 1. |
120501-03322
|
[2] |
PIN
|
|
| 10. |
420108-01285
|
[1] |
HOSE
|
|
| 11. |
100201-02285
|
[1] |
BLOCK;V
|
|
| 12. |
S0558266
|
[4] |
BOLT
|
|
| 13. |
401107-01548
|
[1] |
SEAL
|
|
| 14. |
120203-00649
|
[1] |
CLAMP
|
|
| 15. |
S0555966
|
[2] |
BOLT
|
|
| 16. |
S5102506
|
[15] |
WASHER,SPRING
|
|
| 17. |
S5010513
|
[15] |
WASHER
|
|
| 18. |
300507-00043
|
[1] |
MOTOR,POWER
|
|
| 19. |
430216-00415
|
[2] |
JOINT
|
|
| 2. |
140105-00823
|
[2] |
BEARING
|
|
| 20. |
160601-01276
|
[1] |
BODY;BUCKET
|
|
| 21. |
930301-00103
|
[1] |
BOARD;SNOW
|
|
| 22. |
S0556566
|
[9] |
BOLT
|
|
| 23. |
S4012536
|
[9] |
NUT
|
|
| 24. |
110302-00982
|
[6] |
BAR,GUIDE
|
|
| 25. |
111601-00825
|
[6] |
SPRING
|
|
| 26. |
400602-00774
|
[6] |
GASKET
|
|
| 27. |
120501-03269
|
[6] |
PIN
|
|
| 28. |
110971-00032
|
[13] |
COTTER
|
|
| 29. |
110406-03588
|
[3] |
BRACKET
|
|
| 3. |
S0521263
|
[2] |
BOLT M16X2.0X30
|
|
| 30. |
250201-03399
|
[3] |
PLATE
|
|
| 31. |
S0560766
|
[15] |
BOLT M12X1.75X50
|
|
| 32. |
S5102705
|
[19] |
WASHER,SPRING
|
|
| 33. |
S5010713
|
[19] |
WASHER;PLAIN
|
|
| 34. |
S4012762
|
[15] |
NUT M12X1.25
|
|
| 35. |
120501-03270
|
[5] |
PIN
|
|
| 36. |
120501-03271
|
[2] |
PIN
|
|
| 37. |
110931-01311
|
[1] |
HOUSING
|
|
| 38. |
S0509063
|
[4] |
BOLT M8X1.25X25
|
|
| 39. |
110406-03530
|
[1] |
BRACKET
|
|
| 4. |
2114-1816A
|
[2] |
WASHER
|
|
| 40. |
S0560566
|
[4] |
BOLT
|
|
| 41. |
120501-03272
|
[4] |
PIN
|
|
| 42. |
110971-00031
|
[4] |
COTTER
|
|
| 43. |
400323-00396
|
[2] |
CYLINDER
|
|
| 44. |
430216-00416
|
[4] |
JOINT
|
|
| 45. |
120204-00088
|
[1] |
HITCH,QUICK;QC
|
|
| 5. |
S5010913
|
[2] |
WASHER
|
|
| 6. |
101552-00415
|
[2] |
NIPPLE,GREASE
|
|
| 7. |
430201-01398
|
[2] |
ADAPTER;T
|
|
| 8. |
420108-01283
|
[4] |
HOSE
|
|
| 9. |
420108-01284
|
[1] |
HOSE
|
|
![]()
