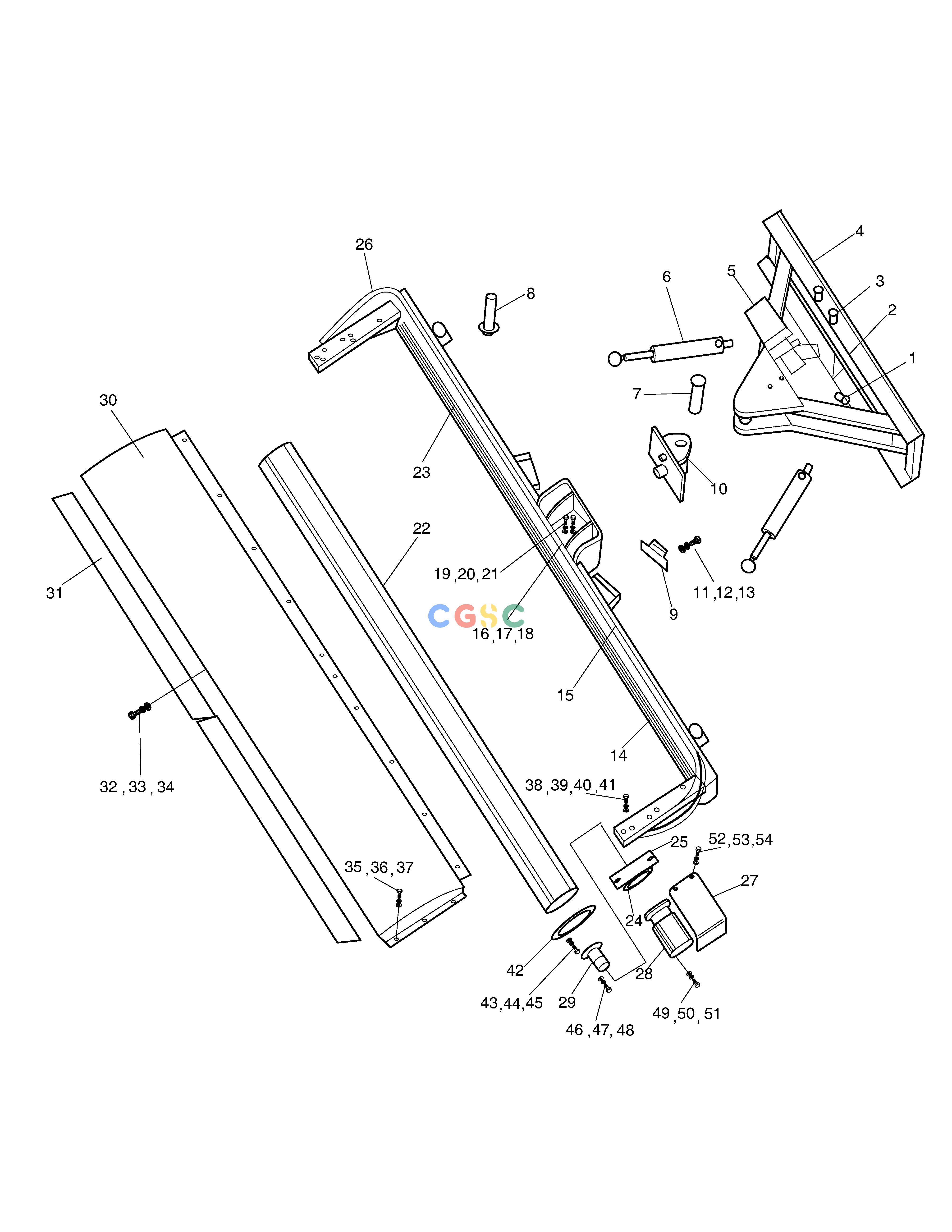

斗山零件查询ANGLE BLADE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230101-00260
|
[1] |
ANGLE BROOM
|
|
| 1. |
120501-03256
|
[2] |
PIN
|
|
| 10. |
101539-00332
|
[1] |
LINK
|
|
| 11. |
S0560466
|
[8] |
BOLT
|
|
| 12. |
S5010713
|
[8] |
WASHER;PLAIN
|
|
| 13. |
S5102705
|
[8] |
WASHER,SPRING
|
|
| 14. |
120203-00644
|
[8] |
CLAMP
|
|
| 15. |
420210-01811
|
[3] |
PIPE
|
|
| 16. |
S0521363
|
[1] |
BOLT
|
|
| 17. |
2114-1816A
|
[1] |
WASHER
|
|
| 18. |
250117-00143
|
[1] |
PLATE,FIXED
|
|
| 19. |
S5011813
|
[2] |
WASHER;PLAIN M39
|
|
| 2. |
300404-00012
|
[2] |
BOARD,COMMUNICATION
|
|
| 20. |
2114-1961D3
|
[2] |
WASHER;SPRING M20
|
|
| 21. |
S4013136
|
[2] |
NUT
|
|
| 22. |
140103-00125
|
[1] |
BEARING,MAIN
|
|
| 23. |
110406-03521
|
[1] |
BRACKET
|
|
| 24. |
110508-20954
|
[2] |
COVER
|
|
| 25. |
140105-00821
|
[2] |
BEARING
|
|
| 26. |
420108-01267
|
[6] |
HOSE
|
|
| 27. |
110508-20955
|
[2] |
COVER
|
|
| 28. |
300506-00428
|
[2] |
MOTOR
|
|
| 29. |
130712-01740
|
[2] |
SHAFT,SPLINE
|
|
| 3. |
101539-00330
|
[2] |
LINK
|
|
| 30. |
110508-20956
|
[1] |
COVER
|
|
| 31. |
250117-00144
|
[2] |
PLATE,FIXED
|
|
| 32. |
S0555753
|
[12] |
BOLT M8X1.25X25
|
|
| 33. |
S5010513
|
[12] |
WASHER
|
|
| 34. |
S4012536
|
[12] |
NUT
|
|
| 35. |
S0508863
|
[15] |
BOLT;M8X20
|
|
| 36. |
S5010513
|
[15] |
WASHER
|
|
| 37. |
S5102506
|
[15] |
WASHER,SPRING
|
|
| 38. |
S0567061
|
[4] |
BOLT M16X2.0X150
|
|
| 39. |
S5010913
|
[4] |
WASHER
|
|
| 4. |
110405-00039
|
[1] |
BRACKET,CABINET
|
|
| 40. |
2114-1816A
|
[4] |
WASHER
|
|
| 41. |
S4012933
|
[4] |
NUT
|
|
| 42. |
250201-03364
|
[2] |
PLATE
|
|
| 43. |
S0558166
|
[6] |
BOLT
|
|
| 44. |
S5010616
|
[6] |
WASHER
|
|
| 45. |
S5102606
|
[6] |
WASHER,SPRING
|
|
| 46. |
S0565166
|
[12] |
BOLT M16X2.0X45
|
|
| 47. |
S5010913
|
[12] |
WASHER
|
|
| 48. |
2114-1816A
|
[12] |
WASHER
|
|
| 49. |
S0560666
|
[8] |
BOLT
|
|
| 5. |
410135-01000
|
[1] |
VALVE,SOLENOID
|
|
| 50. |
S5010713
|
[8] |
WASHER;PLAIN
|
|
| 51. |
S5102705
|
[8] |
WASHER,SPRING
|
|
| 52. |
S0508863
|
[4] |
BOLT;M8X20
|
|
| 53. |
S5010513
|
[4] |
WASHER
|
|
| 54. |
S5102506
|
[4] |
WASHER,SPRING
|
|
| 6. |
400323-00395
|
[2] |
CYLINDER
|
|
| 7. |
120501-03321
|
[1] |
PIN
|
|
| 8. |
101534-00430
|
[2] |
LEG
|
|
| 9. |
101539-00331
|
[2] |
LINK
|
|
![]()
