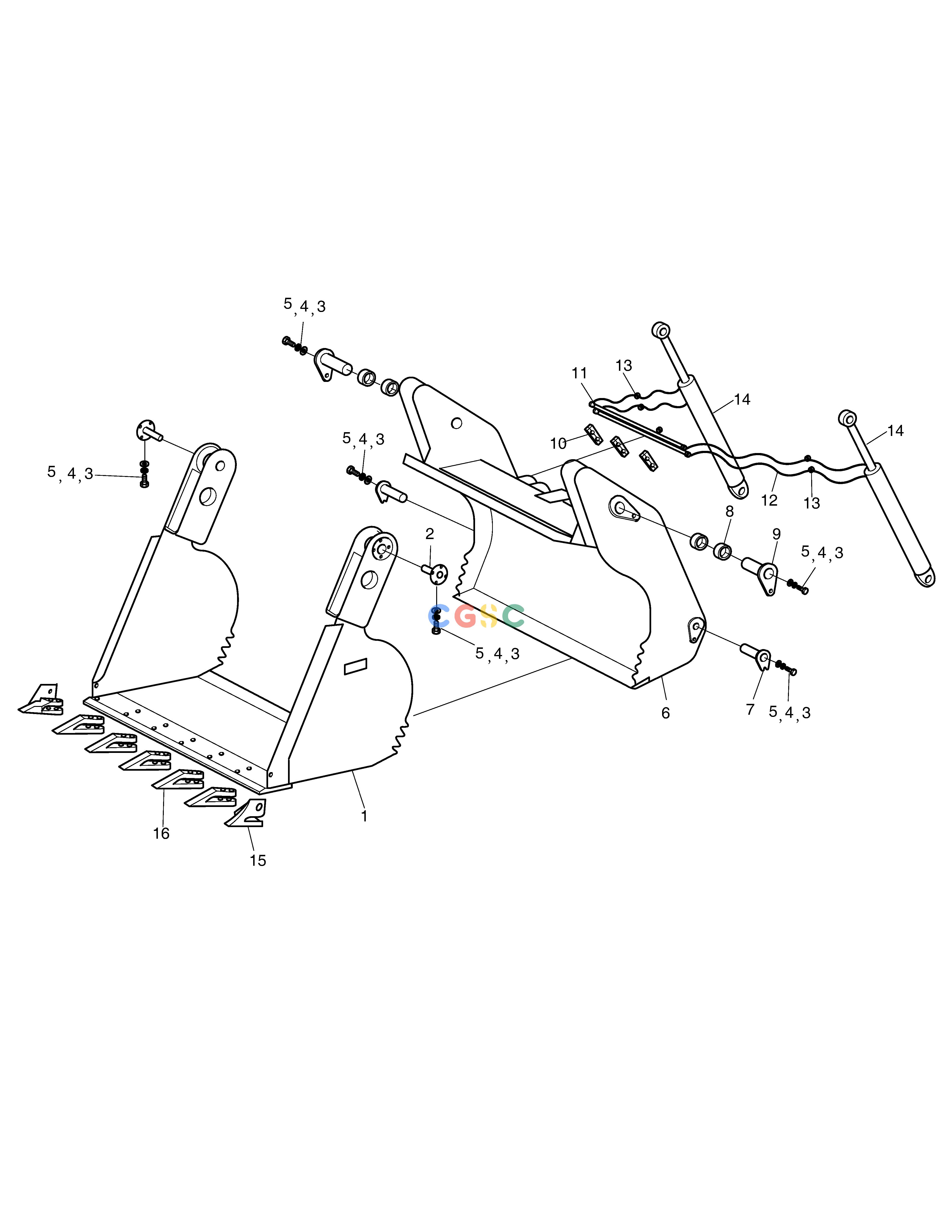

斗山零件查询4 IN 1 BUCKET-QC SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-01978
|
[1] |
BUCKET ASSY;4IN1B QC 5T
|
|
| 1. |
230104-01981
|
[1] |
BUCKET;FRONT
|
|
| 10. |
120203-00642
|
[3] |
CLAMP
|
|
| 11. |
420210-01845
|
[2] |
PIPE
|
|
| 12. |
420108-01313
|
[4] |
HOSE
|
|
| 13. |
101552-00412
|
[6] |
NIPPLE
|
|
| 14. |
400323-00431
|
[2] |
CYLINDER
|
|
| 15. |
230111-00122
|
[2] |
TOOTH;RIGHT
|
|
| 16. |
230111-00123
|
[7] |
TOOTH
|
|
| 2. |
120501-03324
|
[2] |
PIN
|
|
| 3. |
S0515263
|
[6] |
BOLT;HEX
|
|
| 4. |
S5102705
|
[6] |
WASHER,SPRING
|
|
| 5. |
S5010713
|
[6] |
WASHER;PLAIN
|
|
| 6. |
230104-02224
|
[1] |
BUCKET;REAR
|
|
| 7. |
120501-03325
|
[2] |
PIN
|
|
| 8. |
140105-00846
|
[4] |
BEARING
|
|
| 9. |
120501-03326
|
[2] |
PIN
|
|
![]()
