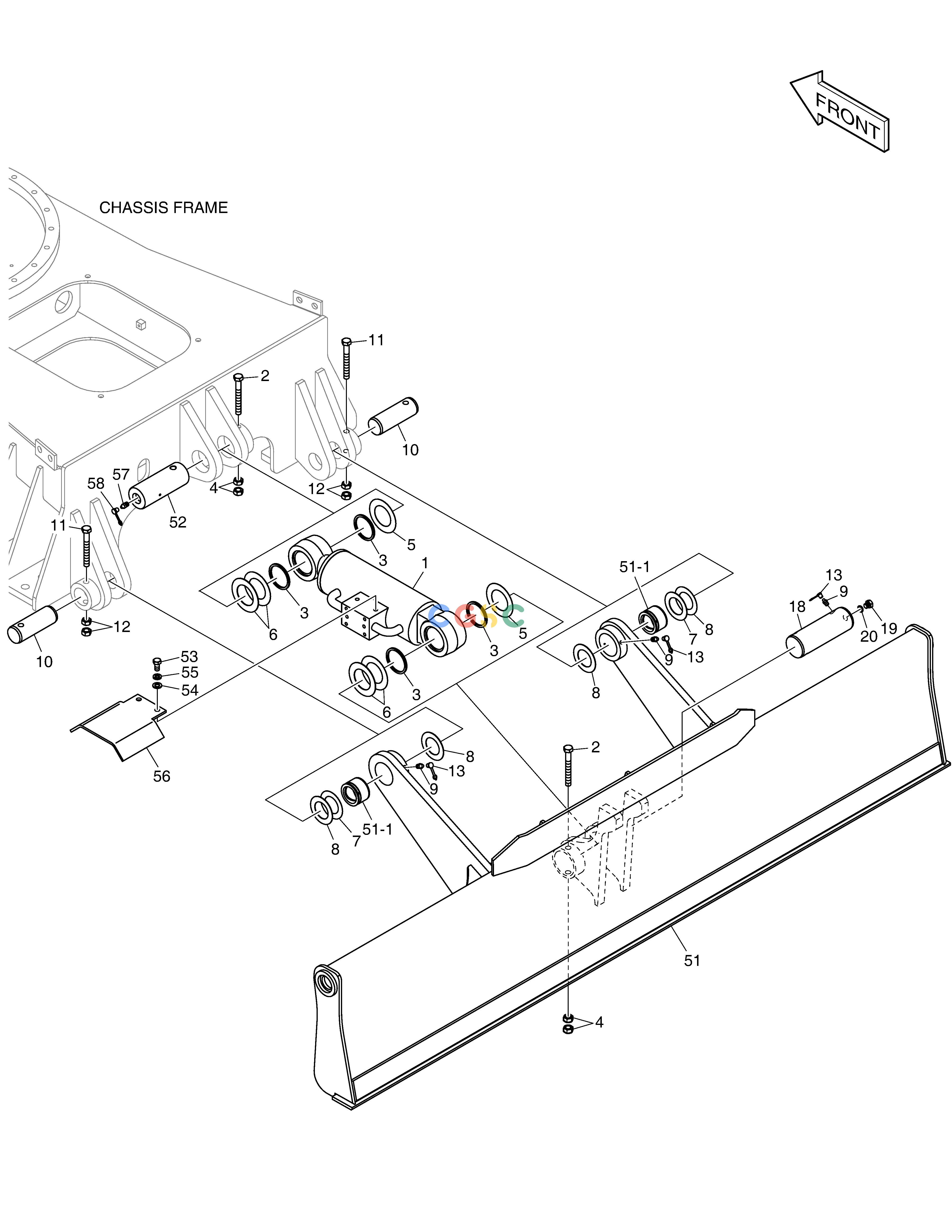

斗山零件查询DOZER BLADE E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230102-00142
|
[1] |
|
|
| 1. |
400312-00052-L
|
[1] |
|
|
| 10. |
120501-00920
|
[2] |
|
|
| 11. |
S0561866
|
[2] |
BOLT
|
|
| 12. |
S4012733
|
[4] |
NUT
|
|
| 13. |
160-00020
|
[3] |
CAP
|
|
| 18. |
120501-00919B
|
[1] |
|
|
| 19. |
2181-1950D1
|
[1] |
PLUG
|
|
| 2. |
S0564266
|
[2] |
BOLT
|
|
| 20. |
S8000111
|
[1] |
O-RING
|
|
| 3. |
DS5501040
|
[4] |
SEAL;DUST
|
|
| 4. |
S4012833
|
[4] |
NUT
|
|
| 5. |
2114-1059D216
|
[2] |
SHIM
|
|
| 51. |
230102-00135B-L
|
[1] |
|
|
| 51-1. |
2110-1393B
|
[2] |
BUSH
|
|
| 52. |
120501-03570
|
[1] |
|
|
| 53. |
S0515066
|
[2] |
BOLT
|
|
| 54. |
S5010703
|
[2] |
WASHER;PLAIN
|
|
| 55. |
S5102703
|
[2] |
WASHER
|
|
| 56. |
110406-03732-L
|
[1] |
|
|
| 57. |
S6710042
|
[1] |
NIPPLE;GREASE
|
|
| 58. |
160-00020
|
[1] |
CAP
|
|
| 6. |
2114-1059D227
|
[4] |
SHIM
|
|
| 7. |
2114-1059D78
|
[2] |
SHIM
|
|
| 8. |
2114-1059D77
|
[4] |
SHIM
|
|
| 9. |
S6710042
|
[3] |
NIPPLE;GREASE
|
|
![]()
