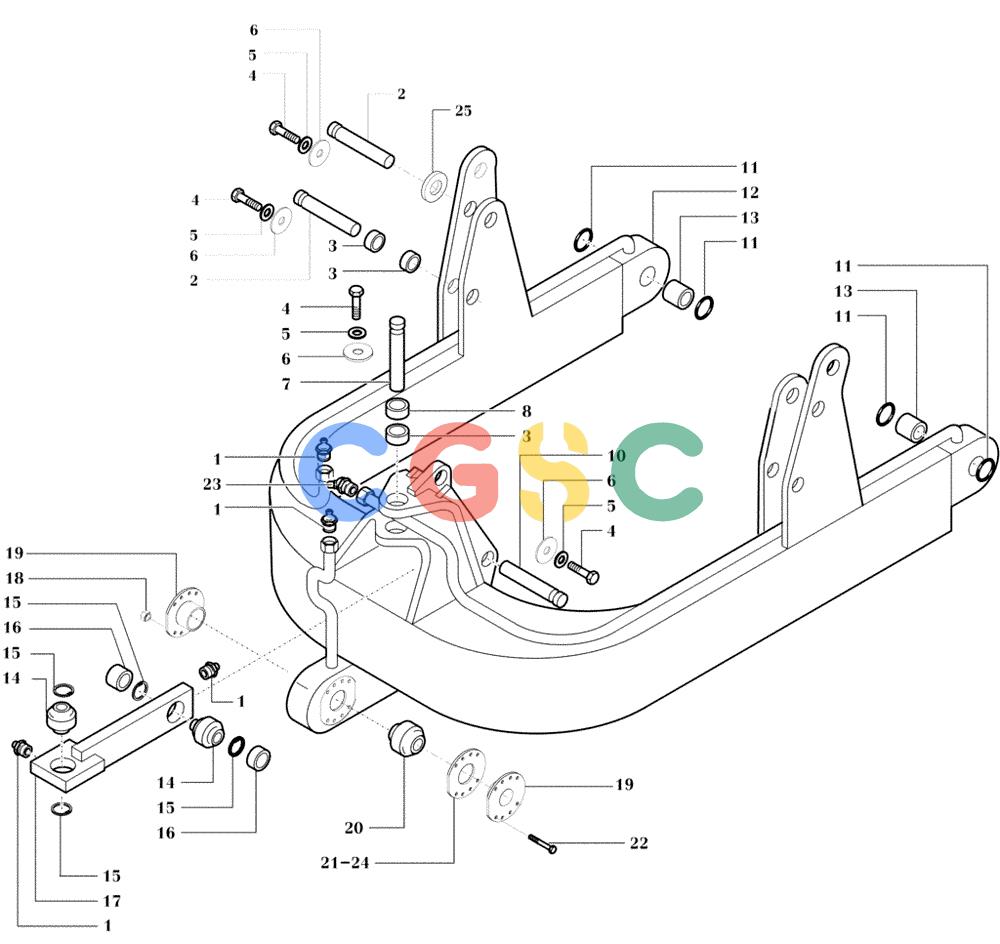

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.478[01A]) - C-FRAME DC70 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76591112 | [5] | LUBE NIPPLE | MAC |
| 2. | 76591113 | [4] | PIN | MAC |
| 3. | 76593039 | [5] | SPACER | MAC |
| 4. | 76591115 | [6] | SCREW | MAC Superseded by part number: 11112224 |
| 5. | 76595963 | [6] | GASKET | MAC Superseded by part number: 76590727 |
| 6. | 76591117 | [6] | WASHER | CMI |
| 7. | 76590734 | [1] | PIN | MAC |
| 8. | 76591119 | [1] | SPACER | MAC |
| 10. | 76591120 | [1] | PIN | MAC |
| 11. | 76591121 | [4] | GASKET | MACSEAL Superseded by part number: 79065562 |
| 12. | 76598650 | [1] | U-FRAME | MAC |
| 13. | 76591123 | [2] | SLEEVE | MAC |
| 14. | 76591124 | [2] | ARTICULATION | MACBUSHING Superseded by part number: 79037239 |
| 15. | 76591125 | [4] | LOCKING RING | MAC Superseded by part number: 11061376 |
| 16. | 76591126 | [2] | SPACER | MAC |
| 17. | 76591127 | [1] | STRUT | MAC |
| 18. | 76605328 | [8] | NUT | MACLOCK Superseded by part number: 12577521 |
| 19. | 76598249 | [2] | COVER | MAC |
| 20. | 76598250 | [1] | ARTICULATION | MACBUSHING |
| 21. | 76598254 | [8] | SHIM | MAC |
| 22. | 76598252 | [8] | SCREW | MAC Superseded by part number: 412605 |
| 23. | 76598253 | [1] | LUBE NIPPLE | MAC Superseded by part number: 13408411 |
| 24. | 76598251 | [2] | SHIM | MAC |
| 25. | 76605982 | [4] | SHIM | MAC |
![]()
