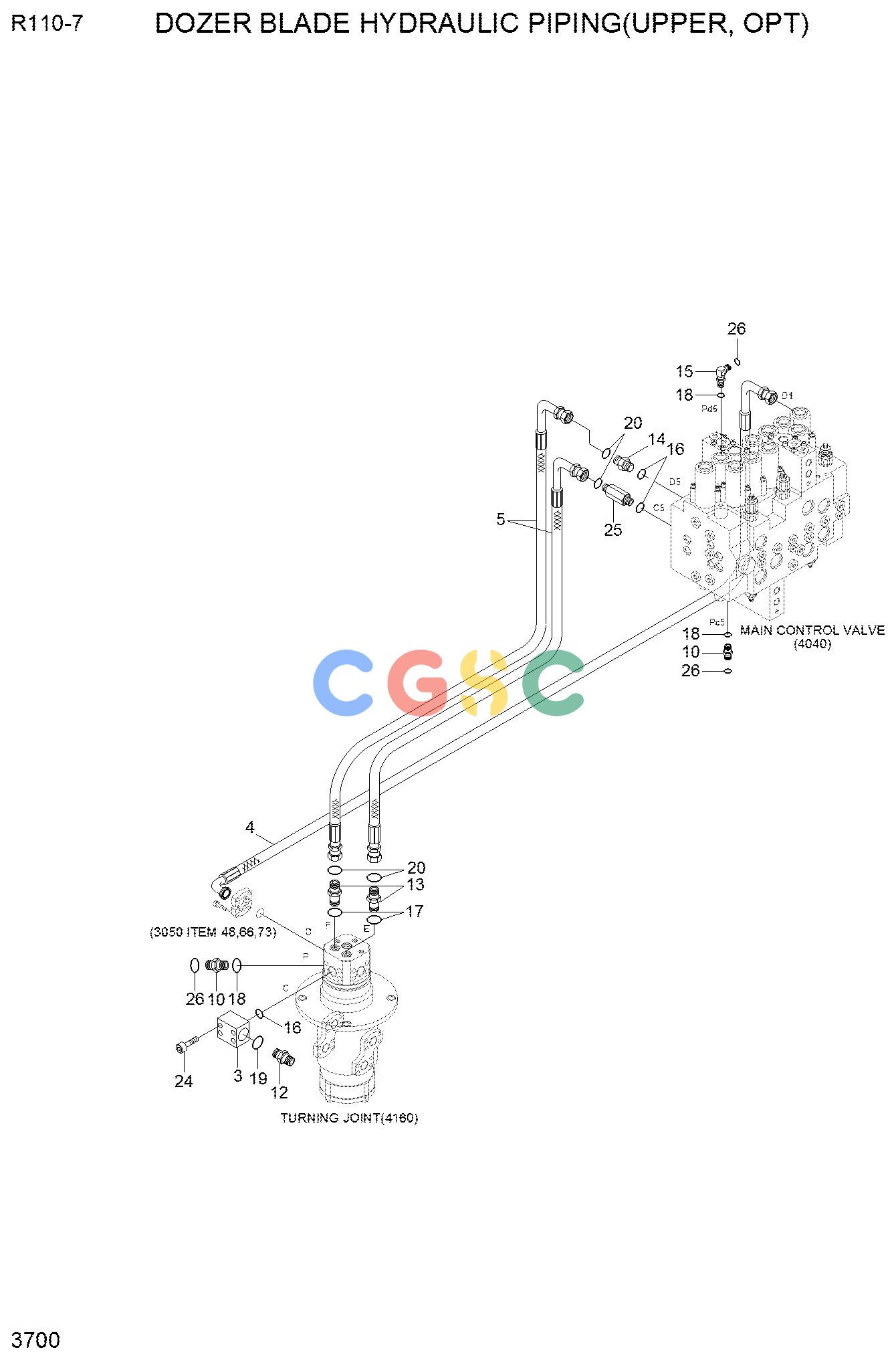

现代零件查询R110-7 DOZER BLADE HYDRAULIC PIPING (UPPER)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@
|
[1] |
DOZER HYD PIPING
|
|
| 2. |
31N4-20080
|
[1] |
RCV LEVER
|
|
| 3. |
31N4-12240
|
[1] |
BLOCK
|
|
| 4. |
31N3-12110
|
[1] |
HOSE ASSY
|
|
| 5. |
P930-087024
|
[2] |
HOSE ASSY-ORFS 0X90
|
|
| 6. |
X420-042064
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 6. |
P930-042064
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 7. |
X420-042056
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 7. |
P930-042056
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 8. |
X410-042024
|
[2] |
HOSE ASSY-ORFS 0X45
|
|
| 8. |
P920-042024
|
[2] |
HOSE ASSY-ORFS 0X45
|
|
| 9. |
X511-104513
|
[2] |
CONNECTOR-LONG,ORFS
|
|
| 10. |
X500-110001
|
[3] |
CONNECTOR-ORFS
|
|
| 11. |
31N6-25060
|
[1] |
FILTER-LAST GUARD
|
|
| 12. |
X500-110004
|
[1] |
CONNECTOR-ORFS
|
|
| 13. |
31N3-70350
|
[2] |
CONNECTOR-ORIFICE,3.5
|
|
| 14. |
X500-110017
|
[1] |
CONNECTOR-ORFS
|
|
| 15. |
X520-110001
|
[1] |
ELBOW-90,ORFS
|
|
| 16. |
S631-014001
|
[3] |
O-RING
|
|
| 17. |
S631-018001
|
[2] |
O-RING
|
|
| 18. |
S631-011001
|
[7] |
O-RING
|
|
| 19. |
S621-018001
|
[1] |
O-RING
|
|
| 20. |
S621-014001
|
[4] |
O-RING
|
|
| 21. |
S015-080352
|
[2] |
BOLT-HEX
|
|
| 22. |
S403-082002
|
[2] |
WASHER-PLAIN
|
|
| 23. |
X840-515151
|
[2] |
TEE-R/TYPE,SWIVEL,ORFS
|
|
| 24. |
S109-100256
|
[4] |
BOLT-SOCKET
|
|
| 25. |
X511-112534
|
[1] |
CONNECTOR-LONG,ORFS
|
|
| 26. |
S621-011001
|
[11] |
O-RING
|
|
![]()
