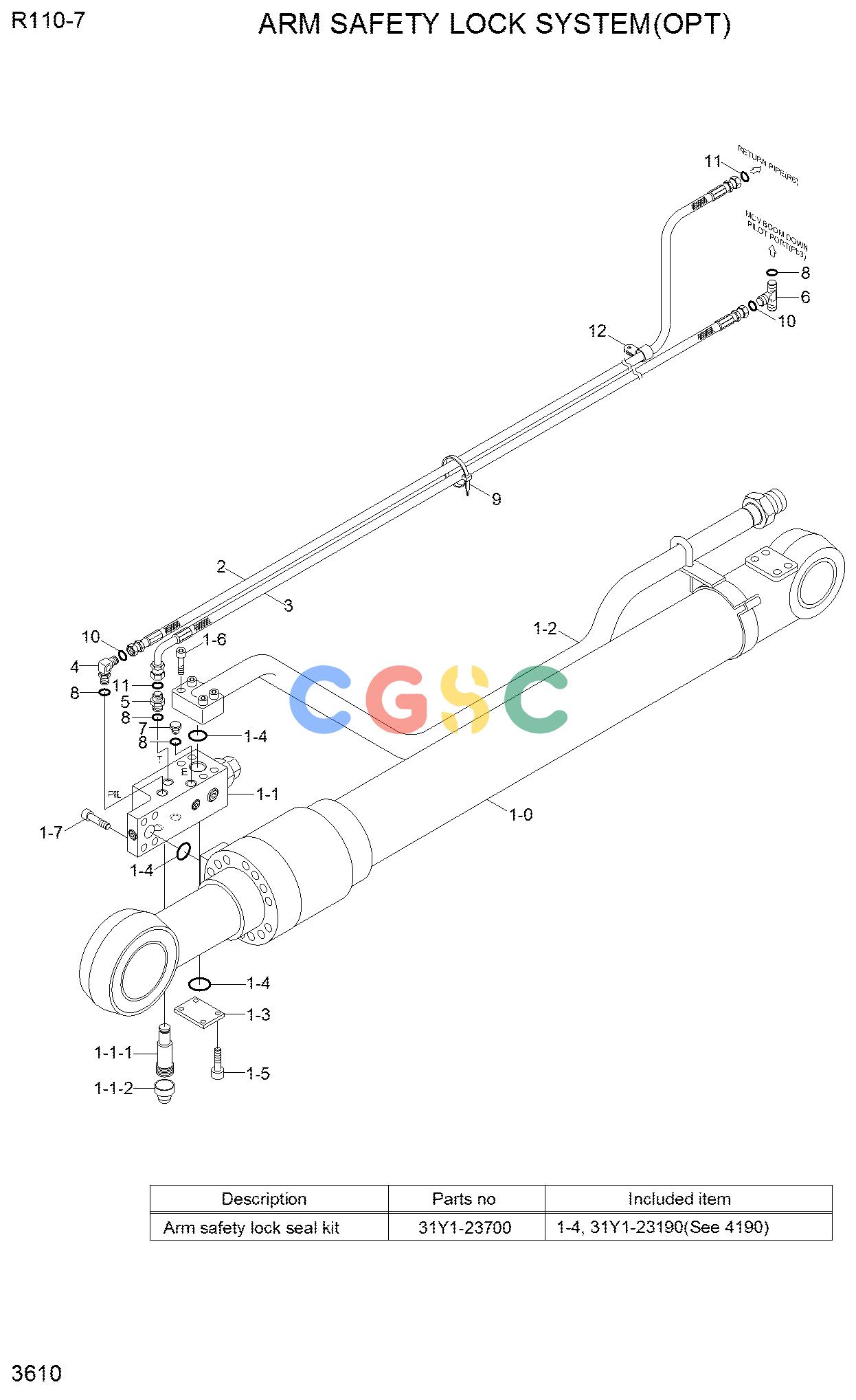

现代零件查询R110-7 ARM SAFETY LOCK SYSTEMEPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@
|
[1] |
ARM SAFETY LOCK SYSTEM
|
|
| 1. |
31N3-52130
|
[1] |
ARM CYL ASSY S/VALVE
|
|
| 1. |
31N3-52132
|
[1] |
ARM CYL ASSY S/VALVE
|
|
| 1. |
31N3-52133
|
[1] |
ARM CYL ASSY S/VALVE
|
|
| 1. |
31N3-52330
|
[1] |
ARM CYL ASSY S/VALVE
|
|
| 1-0. |
@
|
[1] |
ARM CYL SUB ASSY
|
|
| 1-1. |
31N6-90510
|
[1] |
VALVE-SAFETY LOCK
|
|
| 1-1. |
31NA-90560
|
[1] |
LOCK VALVE-ARM SAFETY
|
|
| 1-1-1. |
041144039960000
|
[1] |
RELIEF VALVE
|
|
| 1-1-1. |
DRV-100A
|
[1] |
RELIEF VALVE
|
|
| 1-1-2. |
110418005000000
|
[1] |
CAP
|
|
| 1-1-2. |
DCP-001A
|
[1] |
CAP
|
|
| 1-1-3. |
K84926036307010
|
[1] |
Deleted...
|
|
| 1-1-3. |
AS568-1
|
[1] |
SEAL KIT
|
|
| 1-2. |
31Y1-23180
|
[1] |
PIPE ASSY-RV
|
|
| 1-2. |
H014-28010
|
[1] |
Deleted...
|
|
| 1-3. |
P184-121112
|
[1] |
FLANGE-HYD,PLUGING
|
|
| K1-4. |
Y171-019004
|
[3] |
O-RING
|
|
| 1-5. |
S109-100356
|
[4] |
BOLT-SOCKET
|
|
| 1-6. |
S107-100456
|
[4] |
BOLT-SOCKET
|
|
| 1-7. |
S107-100506
|
[4] |
BOLT-SOCKET
|
|
| 2. |
P930-042116
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 3. |
P930-062119
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 4. |
31N6-25110
|
[1] |
ELBOW-90,LONG
|
|
| 5. |
X500-110011
|
[1] |
CONNECTOR-ORFS
|
|
| 6. |
31N4-22150
|
[1] |
TEE-LONG,ORFS
|
|
| 7. |
P220-110102
|
[1] |
PLUG-HEX
|
|
| 8. |
S631-014001
|
[4] |
O-RING
|
|
| 9. |
S552-020102
|
[10] |
CLAMP-BAND
|
|
| 10. |
S621-011001
|
[2] |
O-RING
|
|
| 11. |
S621-012001
|
[2] |
O-RING
|
|
| 12. |
S542-200002
|
[5] |
CLAMP-TUBE
|
|
| K. |
31Y1-23700
|
[1] |
SEAL KIT
|
|
![]()
