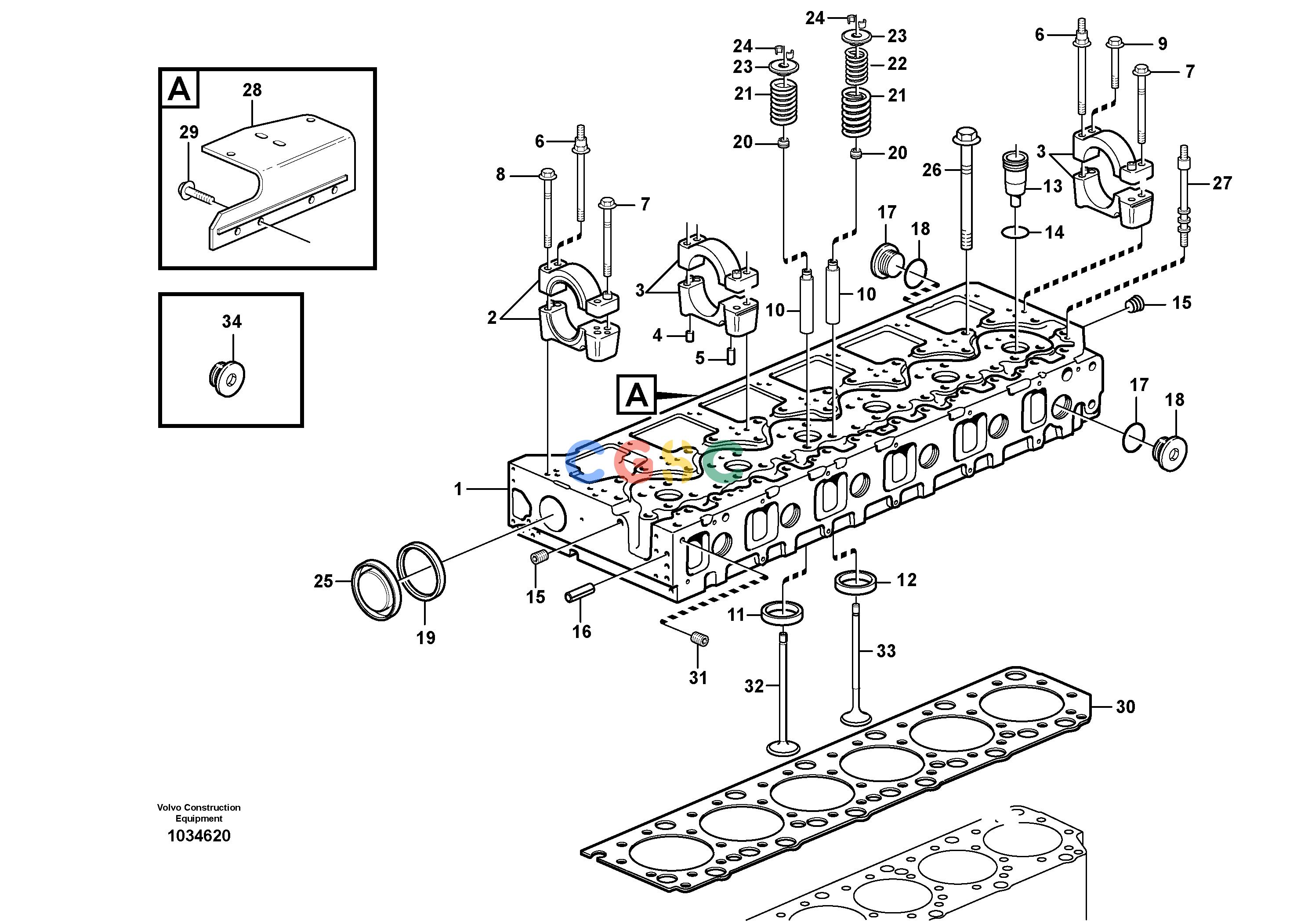

沃尔沃零件查询PL4611 Cylinder headNone8279675-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
VOE20560799
|
[1] |
Cylinder head
|
|
2. |
VOE8170150
|
[1] |
Bearing housing
|
|
3. |
VOE8170153
|
[6] |
Bearing Housing
|
|
4. |
VOE950542
|
[7] |
Pin
|
|
5. |
VOE950562
|
[14] |
Pin
|
|
|
VOE1546484
|
[7] |
Sleeve
|
|
6. |
VOE21344812
|
[7] |
Stud
|
|
7. |
VOE1547889
|
[14] |
Screw
|
|
8. |
VOE21344752
|
[1] |
Flange screw
|
|
9. |
VOE1677283
|
[6] |
Screw
|
|
10. |
VOE20817648
|
[24] |
Valve guide
|
|
11. |
VOE20459329
|
[12] |
Valve seat
|
STD, INLET
|
12. |
VOE20412798
|
[12] |
Valve seat
|
STD, EXHAUST
|
13. |
VOE3183368
|
[6] |
Sleeve
|
|
14. |
VOE20536487
|
[6] |
O-ring
|
|
15. |
VOE13968062
|
[2] |
Plug
|
|
16. |
VOE422426
|
[1] |
Pin
|
|
17. |
VOE3155171
|
[1] |
Plug
|
|
18. |
VOE949659
|
[1] |
O-ring
|
|
19. |
VOE1544710
|
[1] |
Sealing ring
|
|
20. |
VOE21501189
|
[24] |
Valve stem seal
|
|
21. |
VOE22691232
|
[24] |
Valve spring
|
ENG - 647540
|
21. |
VOE22691232
|
[24] |
Valve spring
|
ENG 647541 -
|
22. |
VOE3183211
|
[12] |
Valve spring
|
|
23. |
VOE1546487
|
[24] |
Valve spring washer
|
|
24. |
VOE1677875
|
[48] |
Valve sleeve
|
|
25. |
VOE8170553
|
[1] |
Cap plug
|
|
26. |
VOE21345131
|
[38] |
Flange screw
|
|
27. |
VOE21344784
|
[9] |
Stud
|
|
28. |
VOE11030431
|
[1] |
Bracket
|
|
29. |
VOE946329
|
[4] |
Flange screw
|
|
30. |
VOE3099100
|
[1] |
Gasket kit
|
|
31. |
VOE968060
|
[1] |
Plug
|
|
32. |
VOE20459326
|
[12] |
Inlet valve
|
|
33. |
VOE20441486
|
[12] |
Exhaust Valve
|
|
34. |
VOE990830
|
[2] |
Plug
|
|
