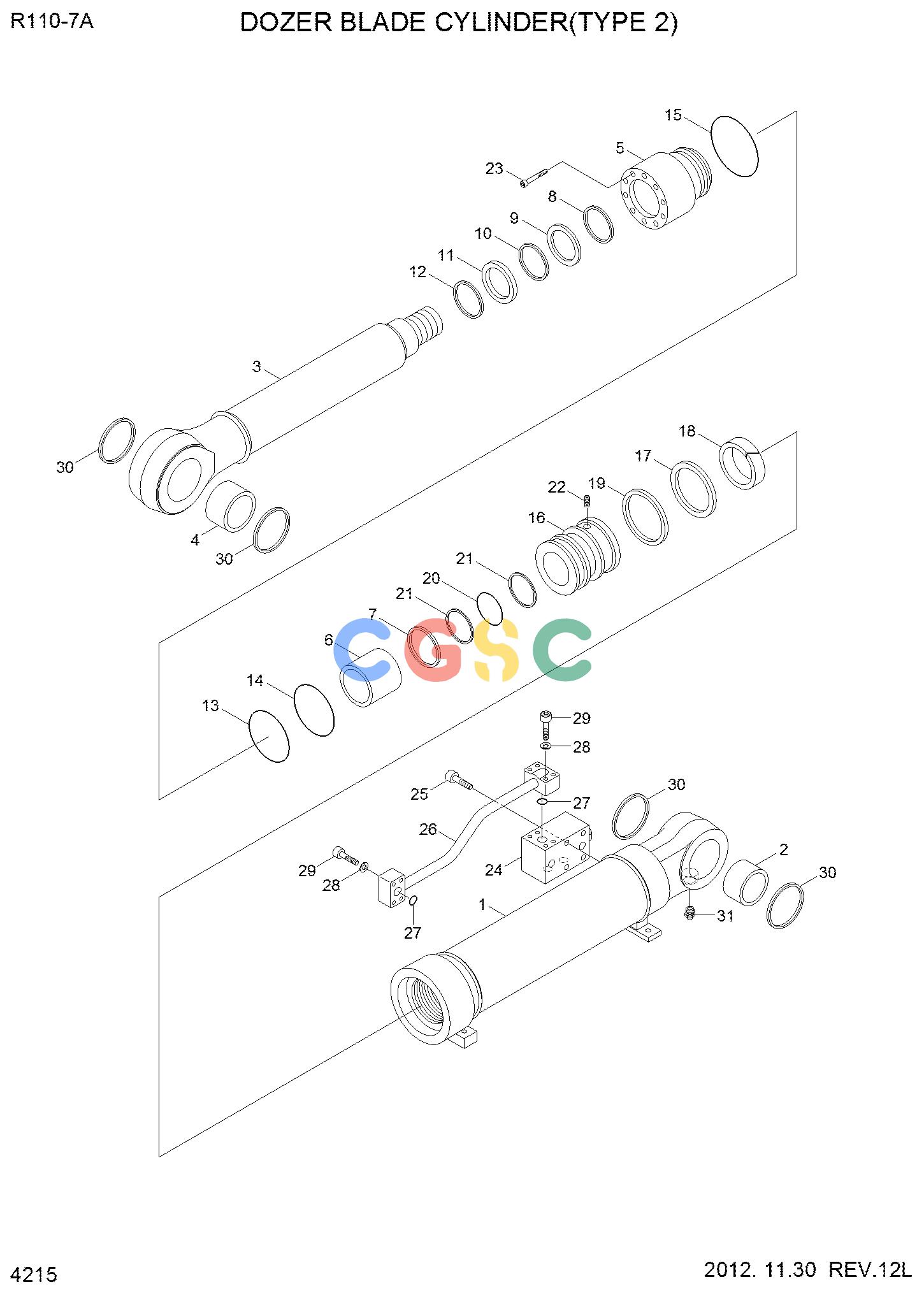

现代零件查询R110-7 DOZER BLADE CYLINDER(TYPE 2)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31N3-70310
|
[1] |
DOZER CYLINDER ASSY-LH
|
|
| *. |
31N3-70320
|
[1] |
DOZER CYLINDER ASSY-RH
|
|
| 1. |
XKCD-02586
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-02596
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCD-02587
|
[1] |
PIN BUSH
|
|
| 3. |
XKCD-02588
|
[1] |
ROD ASSY
|
|
| 4. |
XKCD-02587
|
[1] |
PIN BUSH
|
|
| 5. |
XKCD-02589
|
[1] |
ROD COVER
|
|
| 6. |
XKCD-01596
|
[1] |
ROD BUSH
|
|
| 7. |
XKCD-01009
|
[1] |
RING-RETAINING
|
|
| 8. |
XKCD-02553
|
[1] |
BUFFER SEAL
|
|
| 9. |
XKCD-02554
|
[1] |
U-PACKING
|
|
| 10. |
XKCD-02555
|
[1] |
BACK UP RING
|
|
| 11. |
XKCD-01599
|
[1] |
DUST WIPER
|
|
| 12. |
XKCD-01600
|
[1] |
RETAINING RING
|
|
| 13. |
XKCD-01198
|
[1] |
O-RING
|
|
| 14. |
XKCD-02483
|
[1] |
BACK UP RING
|
|
| 15. |
XKCD-01240
|
[1] |
O-RING
|
|
| 16. |
XKCD-02590
|
[1] |
PISTON
|
|
| 17. |
XKCD-02591
|
[1] |
PISTON SEAL
|
|
| 18. |
XKCD-01202
|
[1] |
RING-WEAR
|
|
| 19. |
XKCD-01204
|
[1] |
RING-DUST
|
|
| 20. |
XKCD-01363
|
[1] |
O-RING
|
|
| 21. |
XKCD-02592
|
[2] |
BACK UP RING
|
|
| 22. |
XKCD-01222
|
[1] |
SCREW-SET
|
|
| 23. |
XKCD-02593
|
[10] |
HEX SOCKET BOLT
|
|
| 24. |
XKCD-02597
|
[1] |
CHECK VALVE
|
|
| 24. |
XKCD-02267
|
[1] |
VALVE-CHECK
|
|
| 25. |
XKCD-01210
|
[4] |
HEX SOCKET BOLT
|
|
| 26. |
XKCD-02598
|
[1] |
PIPE ASSY
|
|
| 26. |
XKCD-02594
|
[1] |
PIPE ASSY
|
|
| 27. |
XKCD-01207
|
[2] |
O-RING
|
|
| 28. |
XKCD-00989
|
[8] |
SPRING WASHER
|
|
| 29. |
XKCD-01212
|
[8] |
HEX SOCKET BOLT
|
|
| 30. |
XKCD-02567
|
[4] |
WIPER-PIN
|
|
| 31. |
XKCD-01024
|
[1] |
NIPPLE-GREASE
|
|
| K. |
XKCD-02595
|
[1] |
SEAL KIT
|
|
![]()
