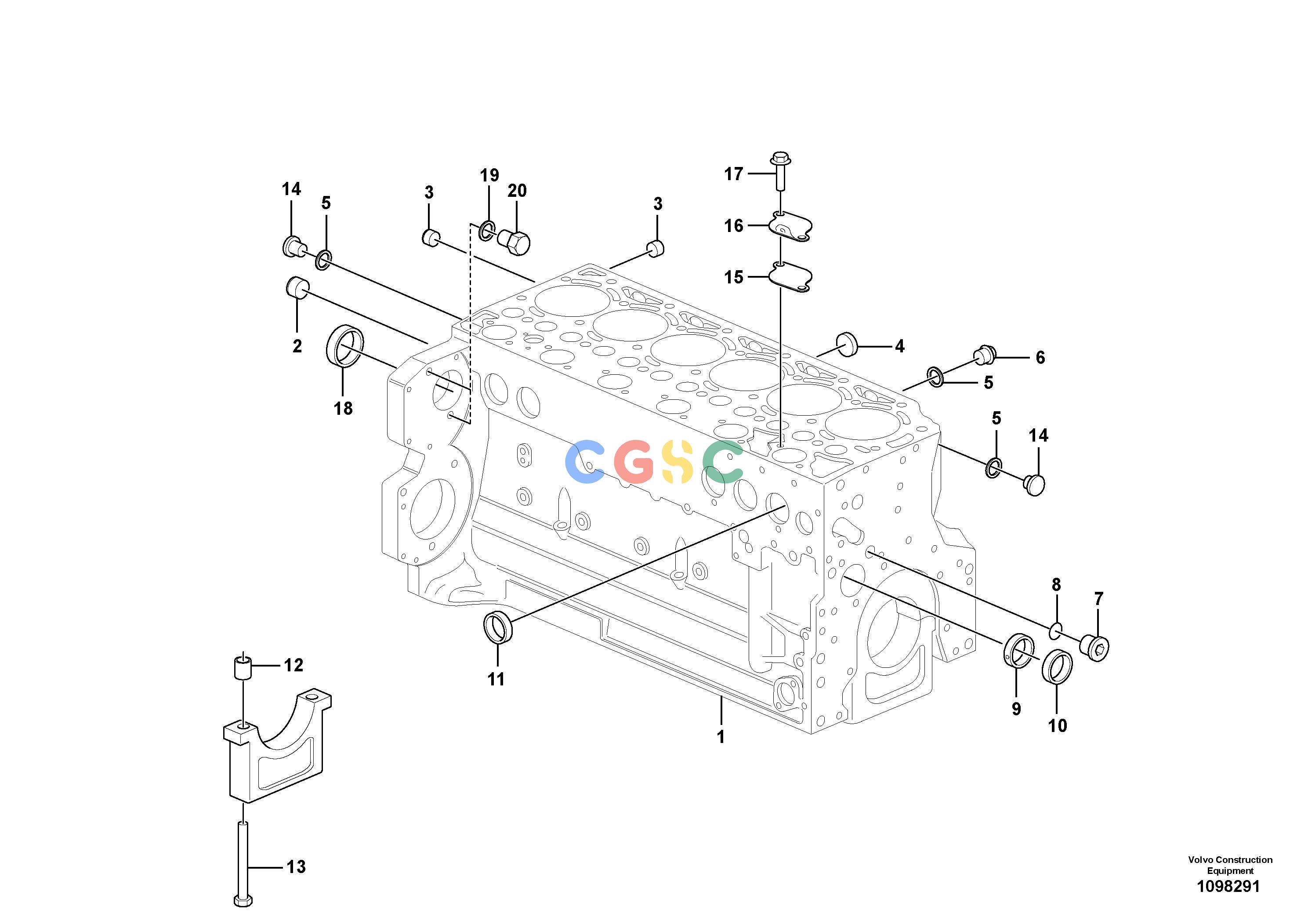

沃尔沃零件查询L90F Cylinder blockNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE22468043
|
[1] |
Crankcase
|
|
| 2. |
VOE20785813
|
[1] |
Plug
|
|
| 3. |
VOE20508600
|
[2] |
Plug
|
|
| 4. |
VOE20412745
|
[5] |
Core plug
|
|
| 5. |
VOE993677
|
[3] |
Gasket
|
|
| 6. |
VOE20405716
|
[2] |
Plug
|
|
| 7. |
VOE20998904
|
[1] |
Plug
|
|
| 8. |
VOE20998903
|
[1] |
Gasket
|
|
| 9. |
VOE20459998
|
[1] |
Camshaft bushing
|
|
| 10. |
VOE20459999
|
[6] |
Camshaft bushing
|
|
| 11. |
VOE20405721
|
[9] |
Core plug
|
|
| 12. |
VOE20460001
|
[14] |
Bushing
|
|
| 13. |
VOE20460006
|
[14] |
Screw
|
|
| 14. |
VOE945065
|
[2] |
Plug
|
|
| 15. |
VOE20933203
|
[1] |
Gasket
|
|
| 16. |
VOE20840812
|
[1] |
Cover
|
|
| 17. |
VOE20405792
|
[2] |
Screw
|
|
| 18. |
VOE20793501
|
[1] |
Plug
|
|
| 19. |
VOE13947281
|
[2] |
Gasket
|
|
| 20. |
VOE20441859
|
[2] |
Plug
|
|
