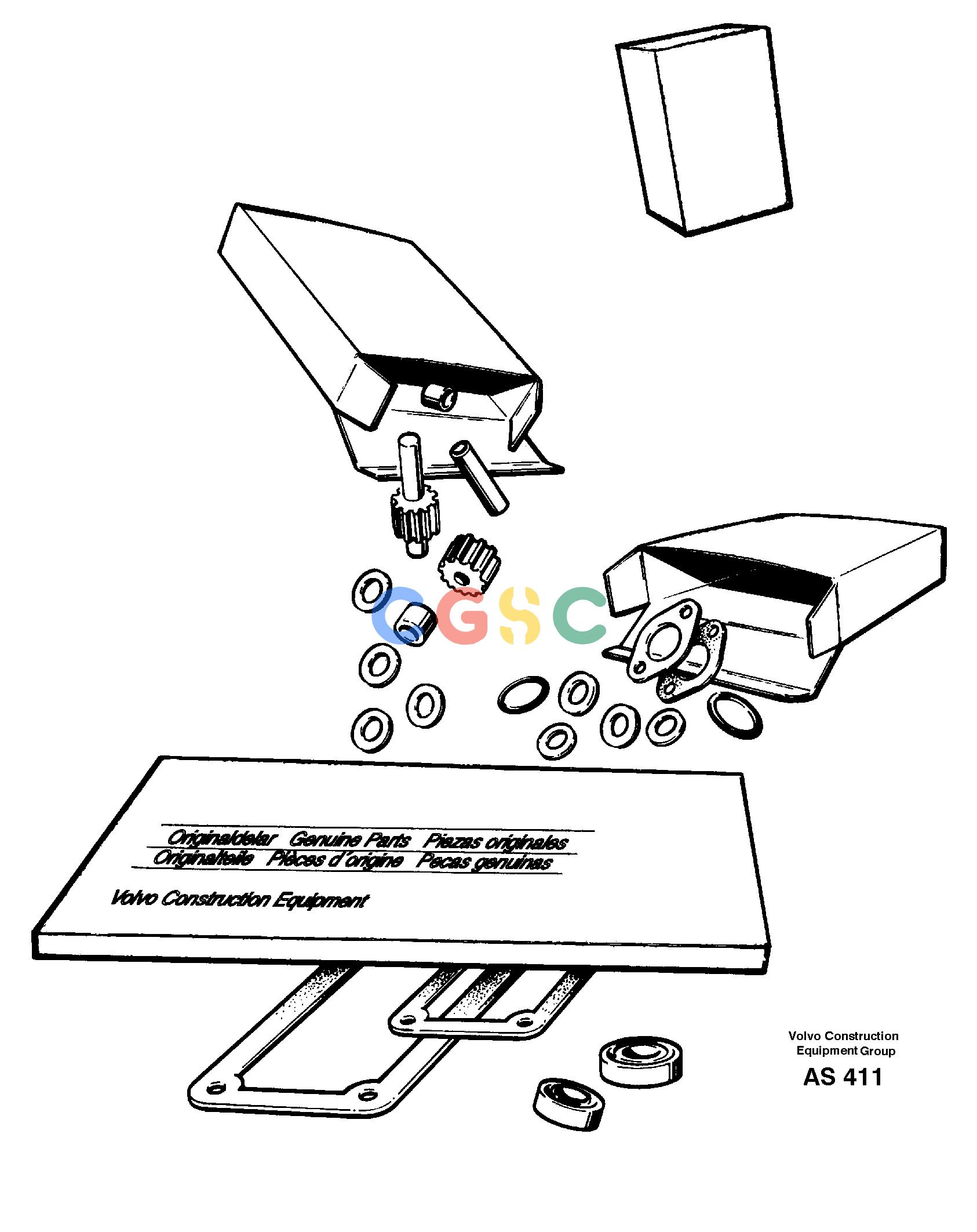

沃尔沃零件查询L70C Repair kits for engineSER NO 13116-, SER NO BRAZIL 70007-TD61GD-TD63KDENoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE276821
|
[2] |
Gasket kit
|
|
| |
VOE11997140
|
[1] |
Overhaul kit
|
|
| |
VOE465158
|
[6] |
Valve seat
|
|
| |
VOE465155
|
[6] |
Valve seat
|
|
| |
VOE420553
|
[6] |
Inlet valve
|
|
| |
VOE8192143
|
[6] |
Exhaust valve
|
|
| |
VOE477792
|
[12] |
Valve guide
|
|
| |
|
|
None
|
|
| |
VOE11997142
|
[1] |
Overhaul kit
|
|
| |
VOE270139
|
[6] |
Piston Bearing
|
|
| |
VOE275394
|
[6] |
Cylinder liner kit
|
|
| |
VOE465815
|
[12] |
Screw
|
|
| |
VOE11030778
|
[1] |
Gasket
|
|
| |
|
|
None
|
|
| |
VOE11997145
|
[1] |
Overhaul kit
|
|
| |
VOE271230
|
[7] |
Main bearing kit
|
|
| |
VOE276751
|
[1] |
Thrust washer kit
|
|
| |
VOE11997140
|
[1] |
Overhaul kit
|
|
| |
VOE11997136
|
[1] |
Gasket kit
|
|
| |
|
|
None
|
|
| |
|
|
None
|
|
| |
VOE11997138
|
|
Overhaul kit
|
|
| |
VOE276821
|
|
Gasket kit
|
|
| |
VOE275776
|
|
Gasket kit
|
|
| |
VOE8149182
|
|
Thermostat
|
|
| |
VOE3829434
|
|
Gasket
|
|
| |
VOE420538
|
|
Gasket
|
|
| |
|
|
None
|
|
| |
VOE11997141
|
|
Overhaul kit
|
|
| |
VOE420874
|
|
Valve seat
|
|
| |
VOE420875
|
|
Valve seat
|
|
| |
VOE420553
|
|
Inlet valve
|
|
| |
VOE8192143
|
|
Exhaust valve
|
|
| |
VOE477792
|
|
Valve guide
|
|
| |
|
|
None
|
|
| |
VOE11997144
|
|
Overhaul kit
|
|
| |
VOE270139
|
|
Piston Bearing
|
|
| |
VOE275648
|
|
Cylinder liner kit
|
|
| |
VOE465815
|
|
Screw
|
|
| |
VOE11030778
|
|
Gasket
|
|
| |
VOE275776
|
[1] |
Gasket kit
|
|
| |
|
|
None
|
|
| |
VOE11997146
|
|
Overhaul kit
|
|
| |
VOE271230
|
|
Main bearing kit
|
|
| |
VOE276751
|
|
Thrust washer kit
|
|
| |
VOE11997141
|
|
Overhaul kit
|
|
| |
VOE11997136
|
|
Gasket kit
|
|
| |
|
|
None
|
|
| |
VOE275394
|
[6] |
Cylinder liner kit
|
|
| |
VOE275648
|
|
Cylinder liner kit
|
|
| |
VOE271161
|
[6] |
Sealing ring kit
|
|
| |
VOE270713
|
[6] |
Piston ring kit
|
|
| |
VOE276310
|
|
Piston ring kit
|
|
| |
|
[6] |
Big end bearing kit
|
|
| |
|
|
None
|
|
| |
|
[7] |
Mn bearing kit
|
|
| |
|
|
None
|
|
| |
|
[1] |
Thrust washer kit
|
|
| |
|
|
None
|
|
| |
VOE276151
|
[1] |
Repair kit
|
|
| |
|
|
Oil pump
|
|
| |
|
|
None
|
|
| |
VOE276804
|
[1] |
Water pump kit
|
|
| |
|
|
Water pump
|
|
| |
|
|
None
|
|
| |
VOE11990043
|
|
Repair kit
|
|
| |
|
|
Extra water pump
|
|
| |
|
|
None
|
|
| |
VOE11997136
|
[1] |
Gasket kit
|
|
| |
|
|
For major overhaul,
|
|
| |
|
|
Supplementary
|
|
| |
VOE20591544
|
[2] |
Gasket
|
|
| |
VOE420641
|
[1] |
Gasket
|
|
| |
VOE420643
|
[1] |
Gasket
|
|
| |
VOE925094
|
[1] |
O-ring
|
|
| |
VOE471321
|
[1] |
Sealing ring
|
|
| |
VOE471637
|
[1] |
Sealing ring
|
|
| |
VOE471708
|
[2] |
Sealing ring
|
|
| |
VOE477059
|
[1] |
O-ring
|
|
| |
VOE845515
|
[2] |
Gasket
|
|
| |
VOE862619
|
[2] |
Gasket
|
|
| |
VOE925057
|
[2] |
O-ring
|
|
| |
VOE977015
|
[1] |
O-ring
|
|
| |
VOE925094
|
[1] |
O-ring
|
|
| |
VOE13947282
|
[2] |
Gasket
|
|
| |
VOE13947625
|
[1] |
Plane gasket
|
|
| |
VOE13948981
|
[1] |
O-ring
|
|
| |
VOE949329
|
[1] |
Gasket
|
|
| |
VOE957171
|
[1] |
Gasket
|
|
| |
VOE11030013
|
[1] |
Gasket
|
|
| |
VOE11030751
|
[2] |
Sealing ring
|
|
| |
VOE421158
|
[1] |
Sealing ring
|
|
| |
VOE22194880
|
[1] |
Sealing ring
|
|
| |
VOE11030778
|
[1] |
Gasket
|
|
| |
VOE469455
|
[6] |
Sealing ring
|
|
| |
VOE469483
|
[2] |
Sealing ring
|
|
| |
VOE470383
|
[2] |
Sealing ring
|
|
| |
VOE1275379
|
[1] |
Gasket
|
|
| |
VOE947620
|
[14] |
Gasket
|
|
| |
VOE13947624
|
[3] |
Plane gasket
|
|
| |
VOE13947627
|
[3] |
Plane gasket
|
|
| |
VOE4804167
|
[1] |
Gasket
|
|
| |
VOE13925095
|
[1] |
O-ring
|
|
| |
VOE13947281
|
[6] |
Gasket
|
|
| |
VOE13969011
|
[14] |
Gasket
|
|
| |
VOE471626
|
[3] |
Sealing ring
|
|
| |
VOE471856
|
[5] |
Sealing ring
|
|
| |
VOE471956
|
[6] |
Sealing ring
|
|
| |
VOE477118
|
[1] |
Sealing ring
|
|
| |
VOE477119
|
[1] |
Crankshaft seal
|
|
| |
VOE925256
|
[1] |
O-ring
|
|
| |
VOE925257
|
[1] |
O-ring
|
|
| |
VOE13949656
|
[2] |
O-ring
|
|
| |
VOE13949722
|
[1] |
O-ring
|
|
| |
VOE13975610
|
[1] |
O-ring
|
|
| |
|
|
None
|
|
| |
VOE11997137
|
[1] |
Overhaul kit
|
|
| |
VOE276821
|
[2] |
Gasket kit
|
|
| |
VOE275776
|
[1] |
Gasket kit
|
|
| |
VOE8149182
|
[1] |
Thermostat
|
|
| |
VOE471682
|
[3] |
Gasket
|
|
| |
VOE420538
|
[6] |
Gasket
|
|
| |
VOE420618
|
[2] |
Gasket
|
|
| |
|
|
