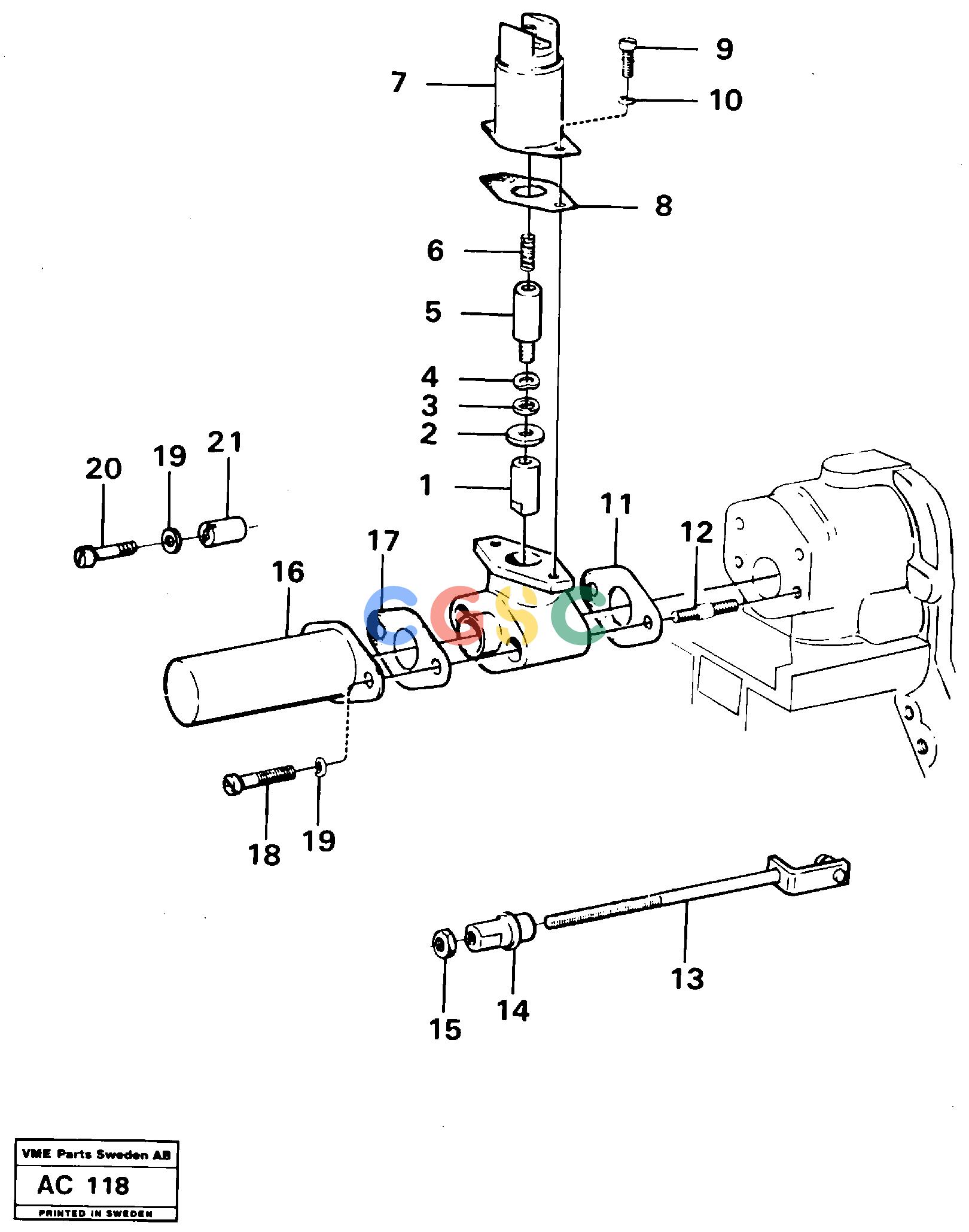

沃尔沃零件查询L70 Cold-starting deviceL70 S/N 7401- / 60501- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE7233609
|
[REQ] |
Shim
|
THICK=0.3
|
| |
VOE7120278
|
[REQ] |
Washer
|
THICK=0.5
|
| |
VOE240699
|
[REQ] |
Washer
|
THICK=1.0
|
| 4. |
VOE941905
|
[0001] |
Spring washer
|
|
| 5. |
VOE240700
|
[0001] |
Bolt
|
|
| |
VOE240695
|
[0001] |
Cold start device
|
|
| 6. |
VOE240701
|
[0001] |
Spring
|
|
| 7. |
VOE240702
|
[0001] |
Magnet
|
MA15
|
| 8. |
VOE1698170
|
[0001] |
Gasket
|
|
| 9. |
VOE956075
|
[0002] |
Cross recessed screw
|
|
| 10. |
VOE941905
|
[0002] |
Spring washer
|
|
| 11. |
VOE1698173
|
[0001] |
Gasket
|
|
| 12. |
VOE6644489
|
[0002] |
Stud
|
|
| 13. |
|
[0001] |
Guide rod
|
|
| 14. |
VOE7240696
|
[0001] |
Bushing
|
|
| 15. |
VOE955780
|
[0001] |
Hexagon nut
|
|
| 1. |
VOE240697
|
[0001] |
Bolt
|
|
| 16. |
VOE6648454
|
[0001] |
Protecting casing
|
|
| 17. |
VOE1698174
|
[0001] |
Seal
|
|
| 18. |
VOE6210714
|
[0001] |
Screw
|
|
| 19. |
VOE13941906
|
[0002] |
Washer
|
|
| 20. |
VOE243140
|
[0001] |
Screw
|
|
| 21. |
VOE240704
|
[0001] |
Nut
|
|
| 2. |
VOE7240698
|
[0001] |
Washer
|
|
| 3. |
VOE120279
|
[REQ] |
Washer
|
THICK=0.2
|
