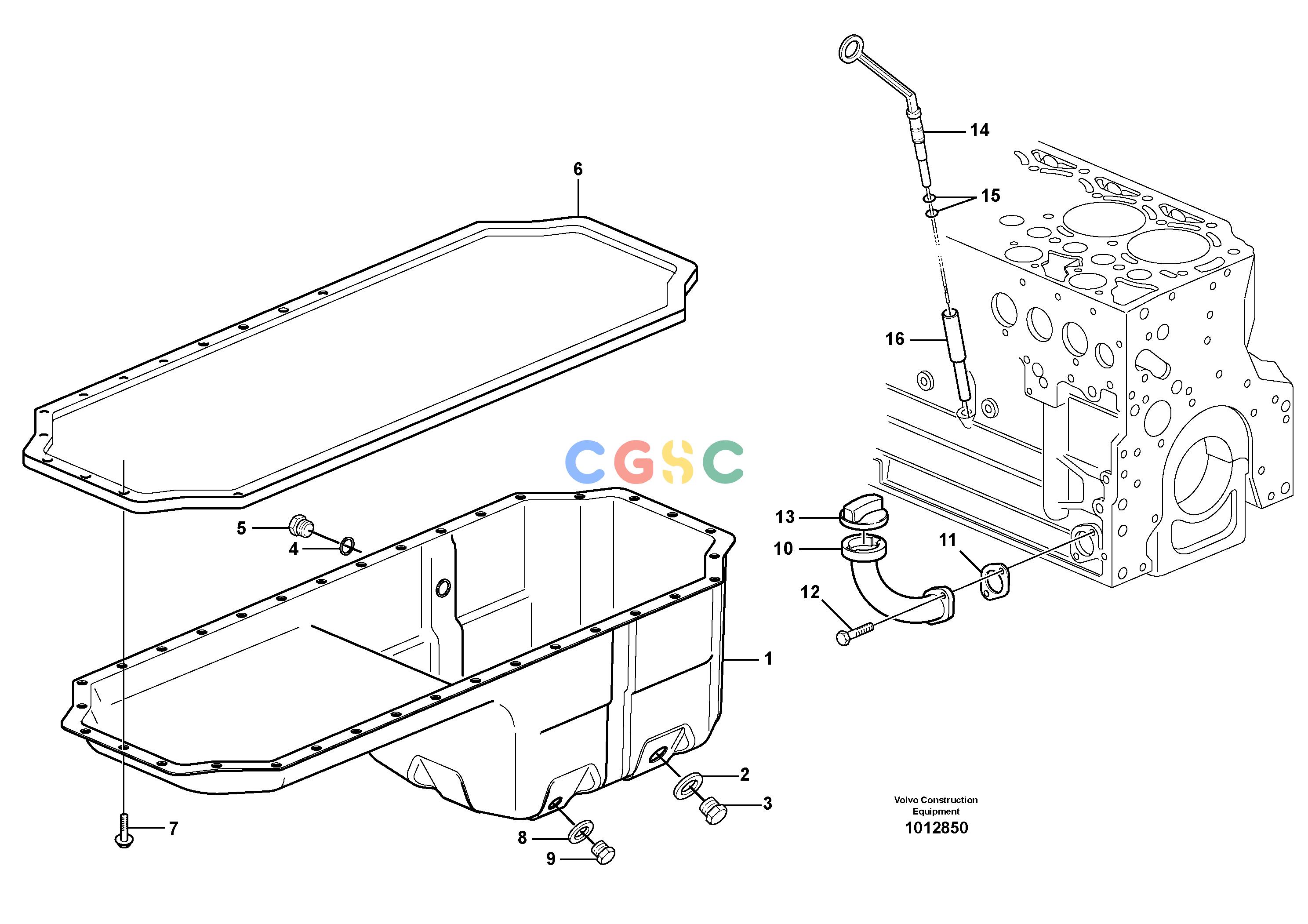

沃尔沃零件查询L60E Oil sumpNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21618972
|
[1] |
Oil pan
|
|
| 2. |
VOE20496256
|
[1] |
Gasket
|
|
| 3. |
VOE20496257
|
[1] |
Plug
|
|
| 4. |
VOE20460026
|
[1] |
Sealing ring
|
|
| 5. |
VOE20460024
|
[1] |
Plug
|
|
| 6. |
VOE20460022
|
[1] |
Gasket
|
|
| 7. |
VOE20405792
|
[28] |
Screw
|
|
| 8. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 9. |
VOE20405506
|
[1] |
Plug
|
|
| 10. |
VOE20977060
|
[1] |
Tube
|
|
| 11. |
VOE20405825
|
[1] |
Gasket
|
|
| 12. |
VOE20405885
|
[2] |
Screw
|
|
| 13. |
VOE20412589
|
[1] |
Filler cap
|
|
| 14. |
VOE20564005
|
[1] |
Dipstick
|
|
| 15. |
VOE20412343
|
[2] |
Sealing ring
|
|
| 16. |
VOE23091815
|
[1] |
Guide tube
|
|
