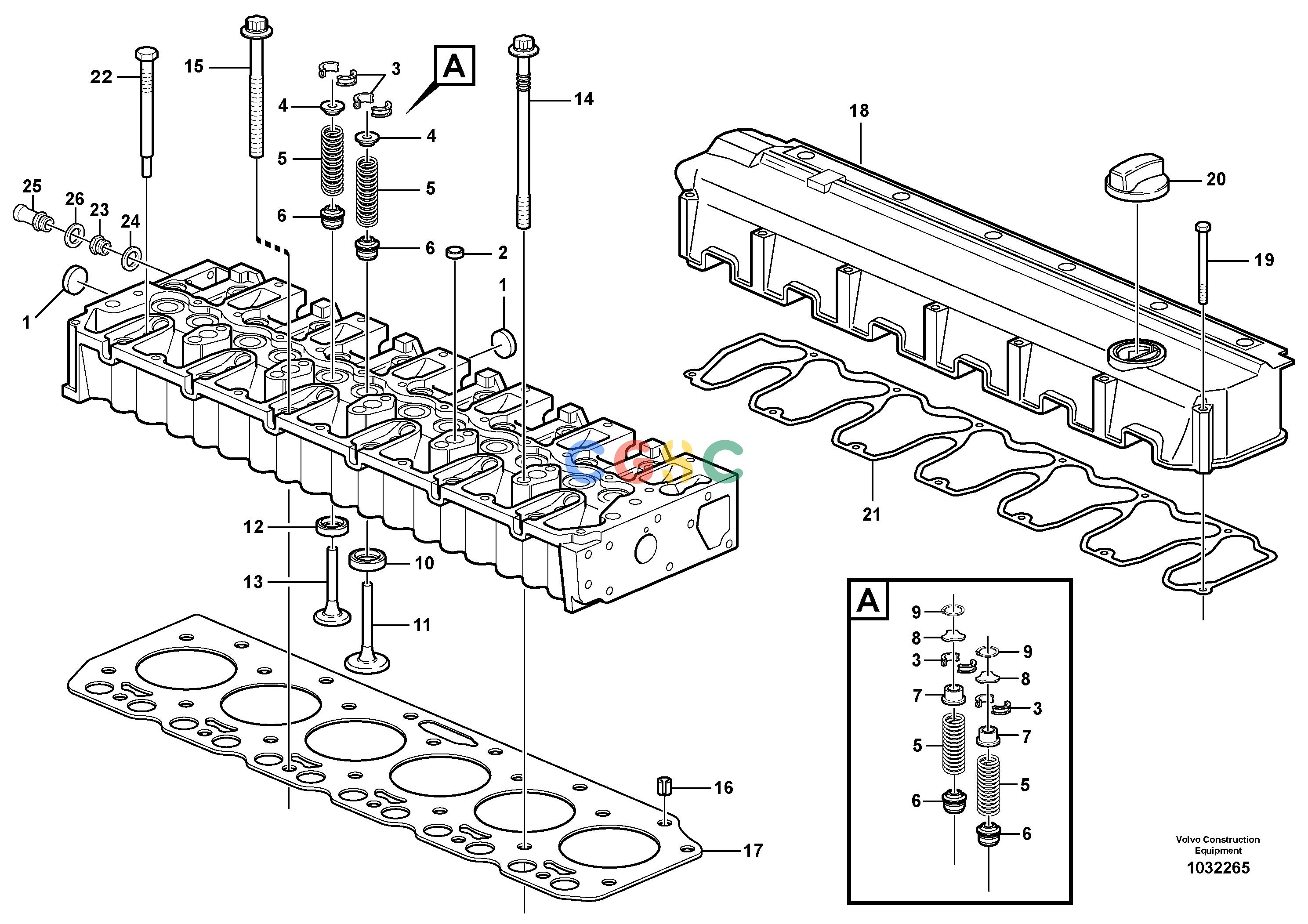

沃尔沃零件查询L60E Cylinder headNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE20747867
|
[1] |
Cylinder head
|
ENG - 01031803
|
| |
VOE20747867
|
[1] |
Cylinder head
|
ENG 1031804 - 2006/01
|
| |
VOE21055823
|
[1] |
Cylinder head
|
ENG 2006/02 -
|
| 1. |
VOE20412745
|
[5] |
Core plug
|
|
| 2. |
VOE20412733
|
[5] |
Core plug
|
|
| 3. |
VOE20459857
|
[24] |
Valve sleeve
|
|
| 4. |
VOE20535037
|
[12] |
Washer
|
ENG - 2006/01
|
| 5. |
VOE20459851
|
[12] |
Valve spring
|
|
| 6. |
VOE20459855
|
[12] |
Valve seal
|
|
| 7. |
VOE20840747
|
[12] |
Spring disc
|
ENG 2006/02 -
|
| 8. |
VOE20840807
|
[12] |
Thrust washer
|
|
| 9. |
VOE20840772
|
[12] |
Lock ring
|
|
| 10. |
VOE20459852
|
[6] |
Valve seat
|
|
| 11. |
VOE20482741
|
[6] |
Inlet valve
|
ENG - 2006/01
|
| 11. |
VOE21026535
|
[6] |
Inlet valve
|
ENG 2006/02 -
|
| 12. |
VOE20459854
|
[6] |
Valve seat
|
|
| 13. |
VOE20482742
|
[6] |
Exhaust valve
|
ENG - 2006/01
|
| 13. |
VOE21026536
|
[6] |
Exhaust valve
|
ENG 2006/02 -
|
| 14. |
VOE20459837
|
[7] |
Bolt
|
|
| 15. |
VOE20459838
|
[19] |
Bolt
|
|
| 16. |
VOE20459839
|
[2] |
Bushing
|
|
| 17. |
VOE20798183
|
[1] |
Cylinder head gasket
|
1,27 MM
|
| 17. |
VOE20798186
|
[1] |
Cylinder head gasket
|
1,37 MM
|
| 17. |
VOE20798191
|
[1] |
Cylinder head gasket
|
1,47 MM
|
| 18. |
VOE20558880
|
[1] |
Valve Cover
|
ENG - 620552
|
| 18. |
VOE20459831
|
[1] |
Valve cover
|
ENG 620553 - 859316
|
| 18. |
VOE20558810
|
[1] |
Valve Cover
|
ENG 859317 -
|
| 19. |
VOE20459830
|
[13] |
Screw
|
|
| 20. |
VOE20412589
|
[1] |
Filler cap
|
|
| 21. |
VOE20459828
|
[1] |
Gasket
|
ENG - 859316
|
| 21. |
VOE20558929
|
[1] |
Gasket
|
ENG 859317 -
|
| 22. |
VOE21455743
|
[6] |
Plug
|
|
| 23. |
VOE20516927
|
[1] |
Sealing ring
|
|
| 24. |
VOE13969011
|
[1] |
Gasket
|
|
| 25. |
VOE20483764
|
[1] |
Nipple
|
|
| 26. |
VOE13947281
|
[1] |
Gasket
|
|
