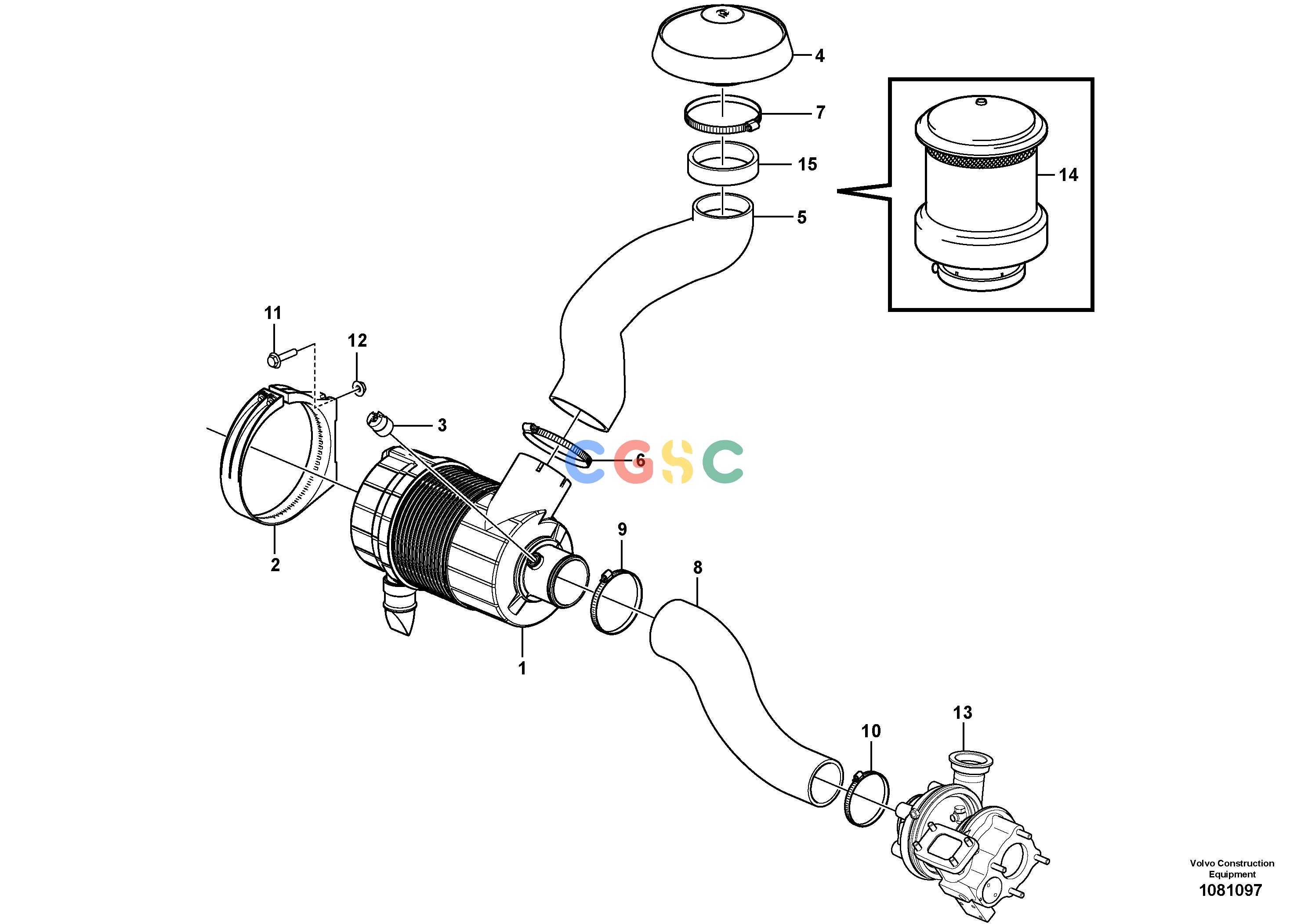

沃尔沃零件查询L50F Air filter with fitting partsNone11390007,-08,-27,-29-11390924VOE11390007NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Air Cleaner
|
|
| 2. |
VOE15605447
|
[1] |
Clamp
|
|
| 3. |
VOE11709746
|
[1] |
Indicator
|
SE2502
|
| 4. |
VOE15205094
|
[1] |
Rain cap
|
|
| 5. |
VOE15203335
|
[1] |
Air hose
|
|
| 6. |
VOE943484
|
[1] |
Hose clamp
|
|
| 7. |
VOE943483
|
[1] |
Hose clamp
|
|
| 8. |
VOE11308778
|
[1] |
Air hose
|
|
| 9. |
VOE943483
|
[1] |
Hose clamp
|
|
| 10. |
VOE943482
|
[1] |
Hose clamp
|
|
| 11. |
VOE60113082
|
[2] |
Flange screw
|
|
| 12. |
VOE948645
|
[2] |
Flange lock nut
|
|
| 13. |
|
[1] |
Turbocharger
|
|
| 14. |
VOE16802765
|
|
Pre-cleaner
|
|
| 15. |
VOE15232303
|
[1] |
Adapter ring
|
|
