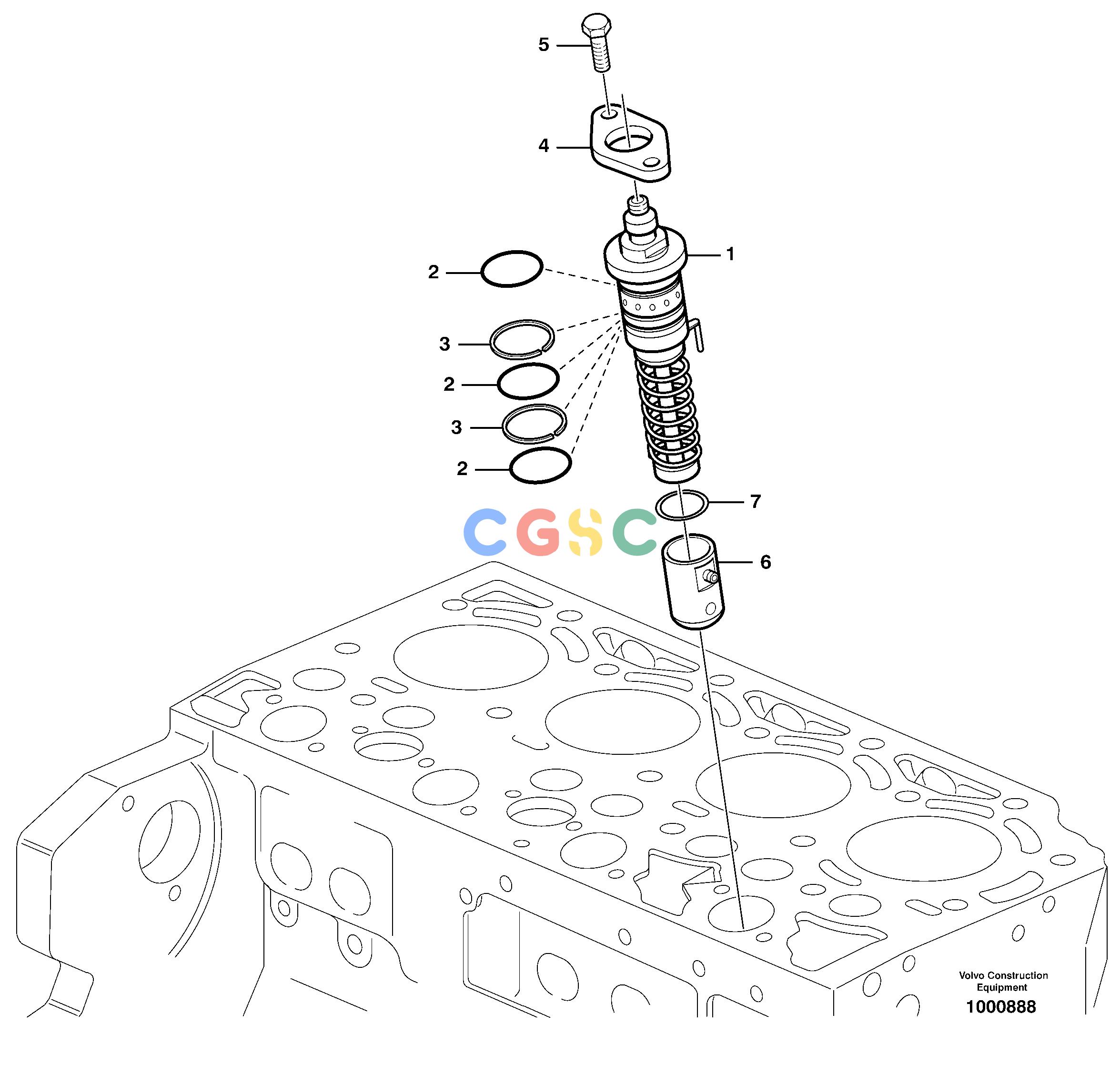

沃尔沃零件查询L50F Fuel injection pump with fitting partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20550001
|
[4] |
Injection Pump
|
|
| 2. |
VOE20405907
|
[12] |
Sealing ring
|
|
| 3. |
VOE20405543
|
[8] |
Shim
|
|
| 4. |
VOE20405565
|
[4] |
Flange
|
|
| 5. |
VOE20460071
|
[8] |
Screw
|
|
| 6. |
VOE22768937
|
[4] |
Tappet
|
|
| 7. |
VOE24425970
|
[1] |
Shim
|
STD
THICK = 4,65 MM
|
| 7. |
VOE24425958
|
[REQ] |
Shim
|
THICK = 4,70 MM
|
| 7. |
VOE24425969
|
[REQ] |
Shim
|
THICK = 4,75 MM
|
| 7. |
VOE24425972
|
[REQ] |
Shim
|
THICK = 4,80 MM
|
| 7. |
VOE24425973
|
[REQ] |
Shim
|
THICK = 4,85 MM
|
| 7. |
VOE24425974
|
[REQ] |
Shim
|
THICK = 4,90 MM
|
| 7. |
VOE24425982
|
[REQ] |
Shim
|
THICK = 4,95 MM
|
| 7. |
VOE24425983
|
[REQ] |
Shim
|
THICK = 5,00 MM
|
| 7. |
VOE24425984
|
[REQ] |
Shim
|
THICK = 5,05 MM
|
| 7. |
VOE24425985
|
[REQ] |
Shim
|
THICK = 5,10 MM
|
| 7. |
VOE24425986
|
[REQ] |
Shim
|
THICK = 5,15 MM
|
| 7. |
VOE24425987
|
[REQ] |
Shim
|
THICK = 5,20 MM
|
| 7. |
VOE24425989
|
[REQ] |
Shim
|
THICK = 5,25 MM
|
| 7. |
VOE24425991
|
[REQ] |
Shim
|
THICK = 5,30 MM
|
| 7. |
VOE24425992
|
[REQ] |
Shim
|
THICK = 5,35 MM
|
| 7. |
VOE24425994
|
[REQ] |
Shim
|
THICK = 5,40 MM
|
| 7. |
VOE24425996
|
[REQ] |
Shim
|
THICK = 5,45 MM
|
| 7. |
VOE24425998
|
[REQ] |
Shim
|
THICK = 5,50 MM
|
| 7. |
VOE24426002
|
[REQ] |
Shim
|
THICK = 5,55 MM
|
| 7. |
VOE24426004
|
[REQ] |
Shim
|
THICK = 5,60 MM
|
| 7. |
VOE24426005
|
[REQ] |
Shim
|
THICK = 5,65 MM
|
| 7. |
VOE24426006
|
[REQ] |
Shim
|
THICK = 5,70 MM
|
| 7. |
VOE24426007
|
[REQ] |
Shim
|
THICK = 5,75 MM
|
| 7. |
VOE24426010
|
[REQ] |
Shim
|
THICK = 5,80 MM
|
| 7. |
VOE24426011
|
[REQ] |
Shim
|
THICK = 5,85 MM
|
| 7. |
VOE24426012
|
[REQ] |
Shim
|
THICK = 5,90 MM
|
| 7. |
VOE24426013
|
[REQ] |
Shim
|
THICK = 5,95 MM
|
| 7. |
VOE24426014
|
[REQ] |
Shim
|
THICK = 6,00 MM
|
| 7. |
VOE24426015
|
[REQ] |
Shim
|
THICK = 6,05 MM
|
| 7. |
VOE24426016
|
[REQ] |
Shim
|
THICK = 6,10 MM
|
| 7. |
VOE24426017
|
[REQ] |
Shim
|
THICK = 6,15 MM
|
| 7. |
VOE24426018
|
[REQ] |
Shim
|
THICK = 6,20 MM
|
| 7. |
VOE24426019
|
[REQ] |
Shim
|
THICK = 6,25 MM
|
| 7. |
VOE24426020
|
[REQ] |
Shim
|
THICK = 6,30 MM
|
| 7. |
VOE24426021
|
[REQ] |
Shim
|
THICK = 6,35 MM
|
| 7. |
VOE24426022
|
[REQ] |
Shim
|
THICK = 6,40 MM
|
