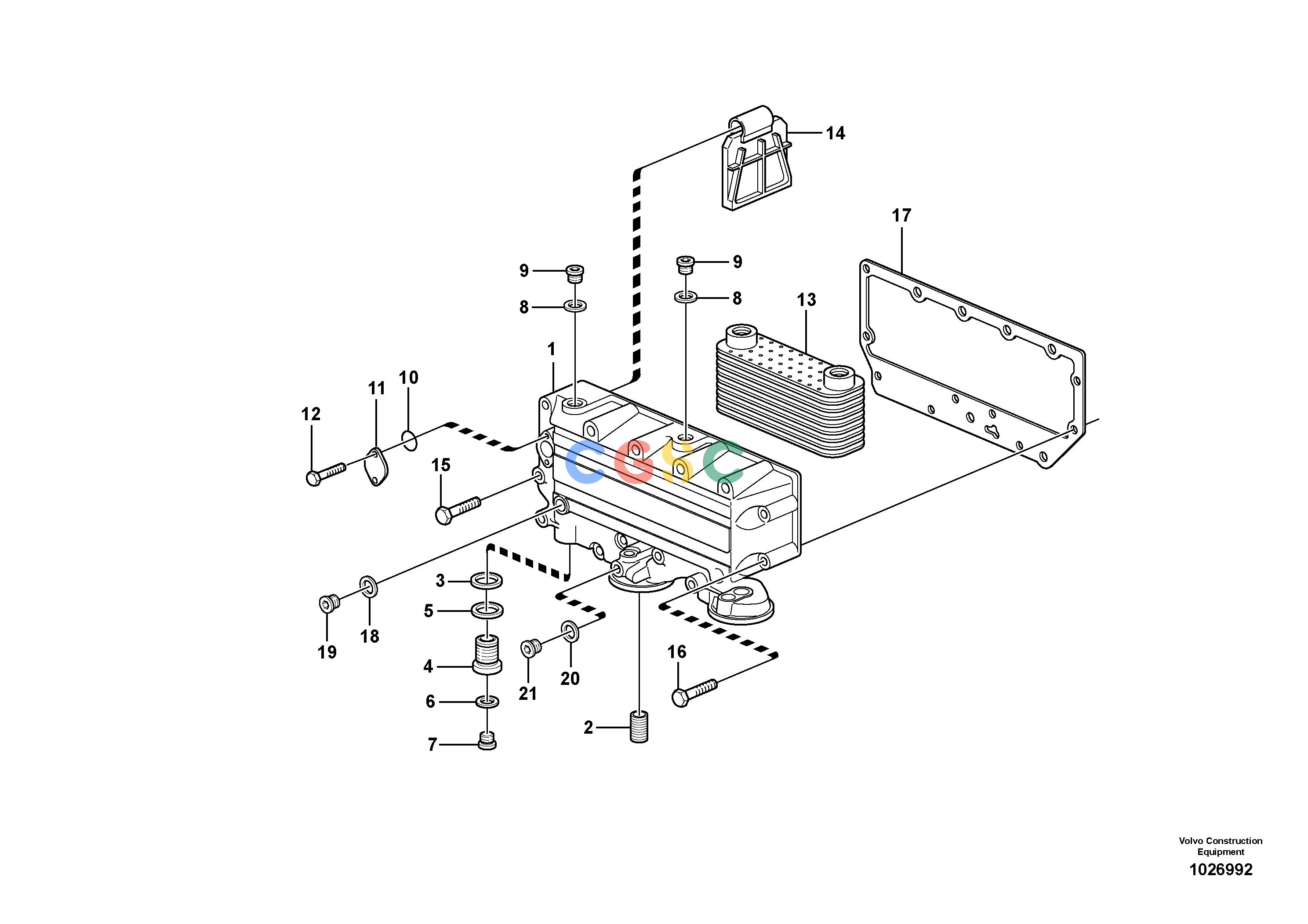

沃尔沃零件查询L50F Oil coolerNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE23124217
|
[1] |
Oil cooler
|
|
| 2. |
VOE20405758
|
[1] |
Bushing
|
|
| 3. |
VOE13947628
|
[2] |
Plane gasket
|
|
| 4. |
VOE20405752
|
[2] |
Screw
|
|
| 5. |
VOE20405569
|
[2] |
Seal
|
|
| 6. |
VOE20405578
|
[2] |
Sealing ring
|
|
| 7. |
VOE20549897
|
[2] |
Plug
|
|
| 8. |
VOE13947628
|
[2] |
Plane gasket
|
|
| 9. |
VOE20459195
|
[2] |
Plug
|
|
| 10. |
VOE20405599
|
[1] |
Sealing ring
|
|
| 11. |
VOE11700609
|
[1] |
Cover
|
|
| 12. |
VOE20460241
|
[2] |
Screw
|
|
| 13. |
VOE20715675
|
[1] |
Oil Cooler
|
|
| 14. |
VOE20405744
|
[1] |
Shut off flap
|
|
| 15. |
VOE996812
|
[10] |
Flange screw
|
M8X80
|
| 16. |
VOE20405672
|
[3] |
Screw
|
M8X50
|
| 17. |
VOE20405747
|
[1] |
Gasket
|
|
| 18. |
VOE20450890
|
[1] |
Sealing ring
|
|
| 19. |
VOE888474
|
[1] |
Screw
|
|
| 20. |
VOE13947281
|
[1] |
Gasket
|
|
| 21. |
VOE21011809
|
[1] |
Plug
|
|
