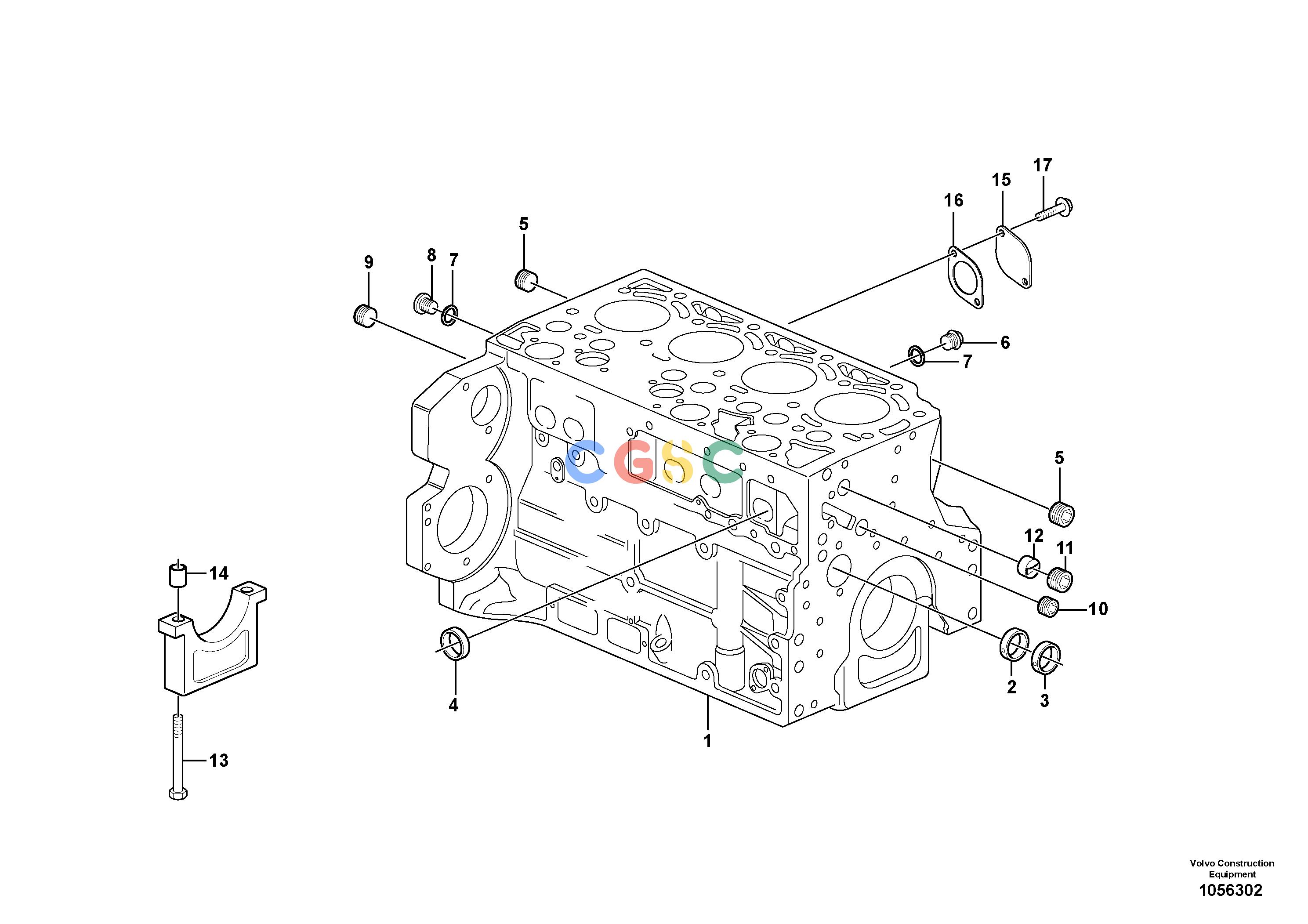

沃尔沃零件查询L50F Cylinder blockNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20555442
|
[1] |
Crankcase
|
|
| 2. |
VOE11700285
|
[1] |
Bearing bushing
|
|
| 3. |
VOE11700284
|
[4] |
Bearing bushing
|
|
| 4. |
VOE20405721
|
[6] |
Core plug
|
|
| 5. |
VOE20508600
|
[2] |
Plug
|
|
| 6. |
VOE20405716
|
[2] |
Plug
|
|
| 7. |
VOE13969011
|
[4] |
Gasket
|
|
| 8. |
VOE945065
|
[2] |
Plug
|
|
| 9. |
VOE20785813
|
[1] |
Plug
|
|
| 10. |
VOE20405719
|
[1] |
Plug
|
|
| 11. |
VOE20405717
|
[1] |
Plug
|
|
| 12. |
VOE20405584
|
[1] |
Guide sleeve
|
|
| 13. |
VOE20405583
|
[10] |
Bolt
|
|
| 14. |
VOE11700278
|
[10] |
Bushing
|
|
| 15. |
VOE21180405
|
[1] |
Flange
|
|
| 16. |
VOE20412341
|
[1] |
Gasket
|
|
| 17. |
VOE13949578
|
[2] |
Screw
|
|
