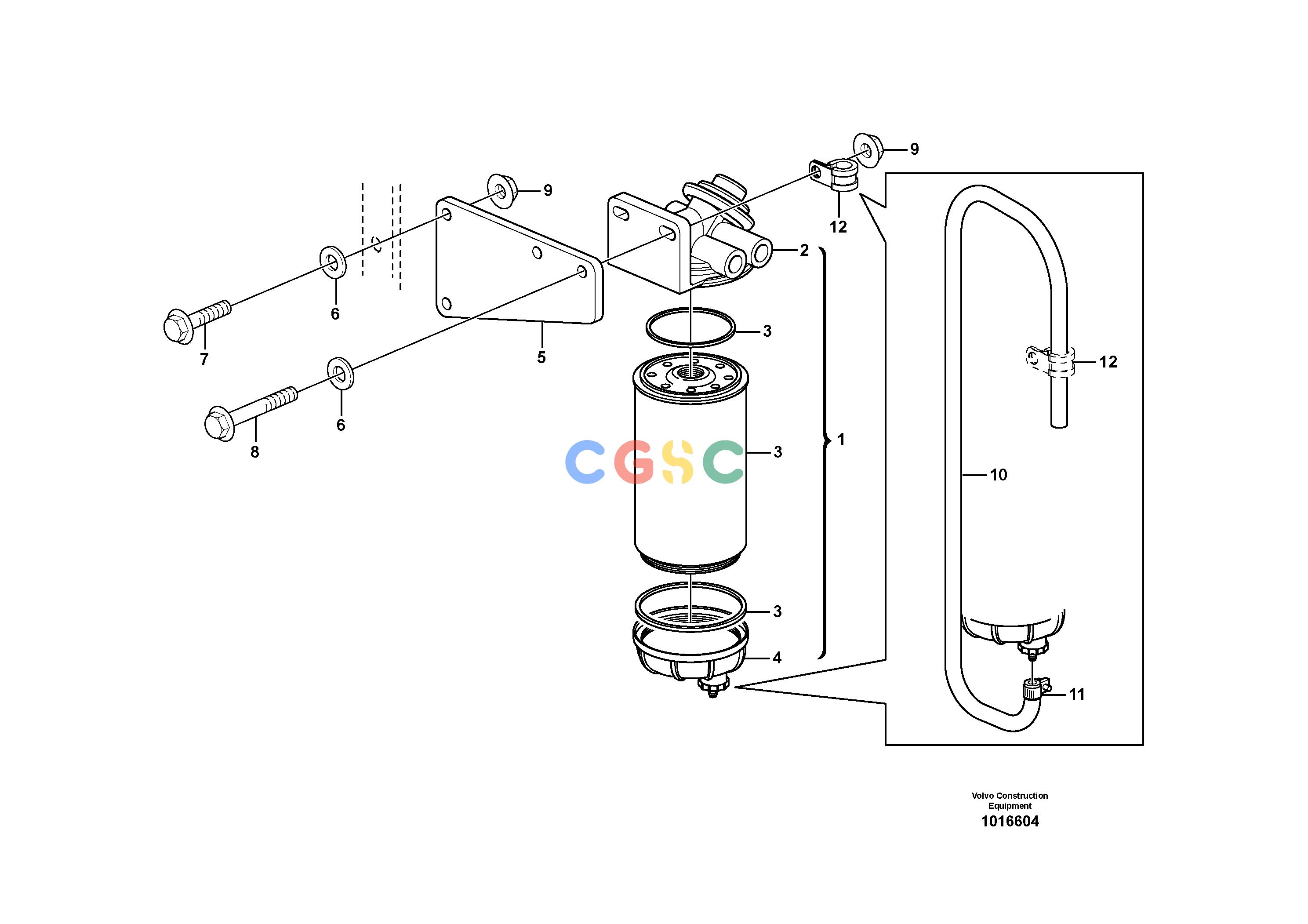

沃尔沃零件查询L50E Water separatorBRAZIL, S/N 71001 -11110471-11110670NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11110471
|
[1] |
Water separator
|
|
| 1. |
VOE11110670
|
|
Water separator
|
|
| 2. |
VOE11713138
|
[1] |
Filter housing
|
|
| 3. |
VOE11110668
|
[1] |
Filter
|
|
| 4. |
VOE3943382
|
[1] |
Bowl
|
|
| 5. |
VOE11410596
|
[1] |
Anchorage
|
|
| 6. |
VOE13960143
|
[8] |
Washer
|
|
| 7. |
VOE60113094
|
[2] |
Flange screw
|
|
| 8. |
VOE13965185
|
[2] |
Screw
|
|
| 9. |
VOE13971098
|
[4] |
Flange nut
|
|
| 10. |
VOE949908
|
[REQ] |
Hose
|
L = 730MM
|
| 11. |
VOE13975269
|
[1] |
Clamp
|
ID=12MM
|
| 12. |
VOE980614
|
[1] |
Clamp
|
ID=14,3MM
|
