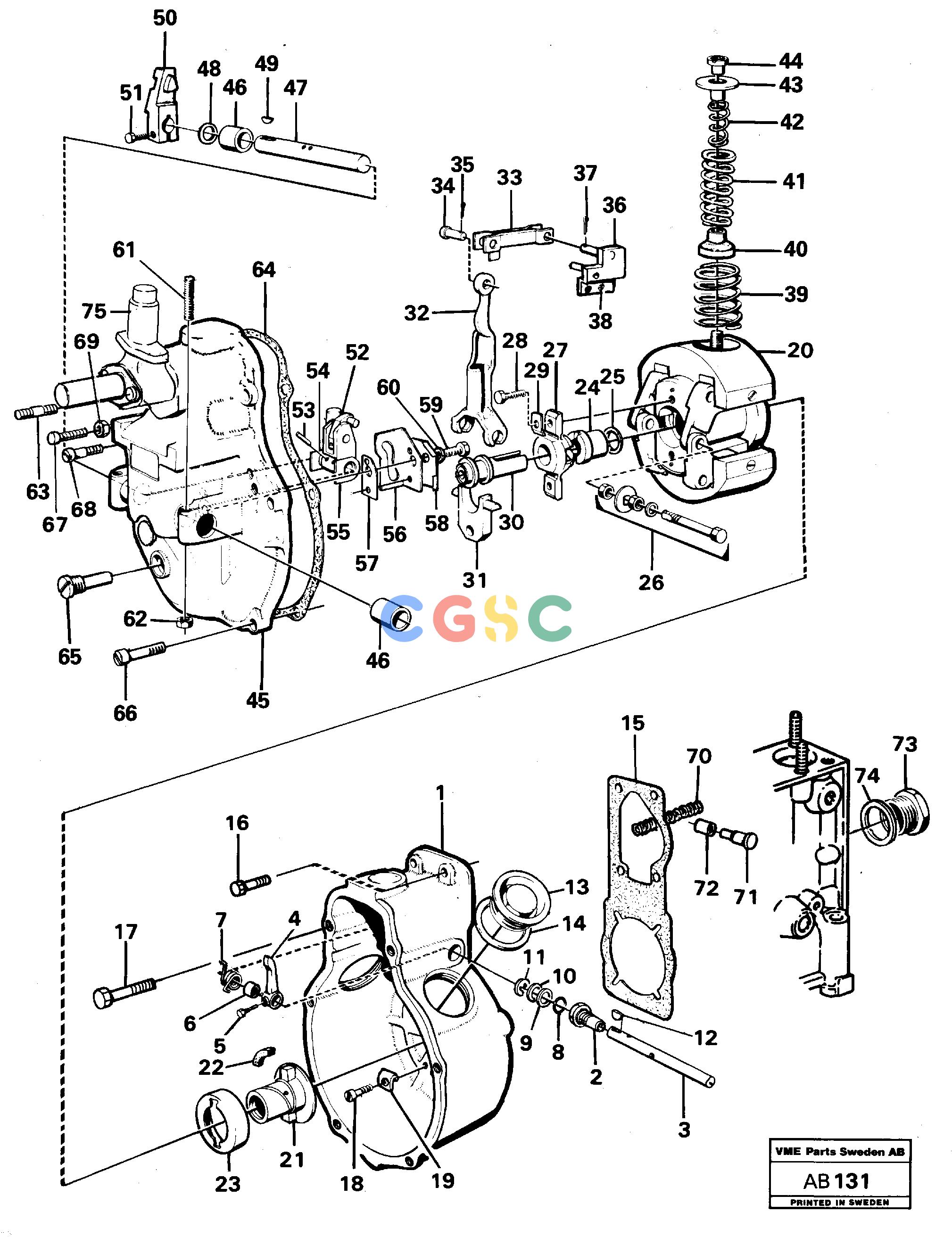

沃尔沃零件查询L50 Centrifugal governorL50 S/N 6401- / 60301- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE244588
|
[1] |
Hand lever
|
|
| 32. |
VOE243838
|
[1] |
Regulator arm
|
|
| 33. |
VOE239914
|
[1] |
Fork
|
|
| 34. |
VOE6211945
|
[1] |
Pivot pin
|
|
| 35. |
VOE907816
|
[2] |
Split pin
|
|
| 36. |
VOE6210704
|
[1] |
Plate
|
|
| 37. |
VOE907822
|
[1] |
Split pin
|
|
| 38. |
VOE907966
|
[2] |
Rivet
|
|
| 39. |
VOE6211256
|
[2] |
Spring
|
|
| 40. |
VOE240857
|
[2] |
Spring disc
|
|
| 41. |
VOE6211255
|
[2] |
Spring
|
|
| 5. |
VOE241102
|
[1] |
Screw
|
|
| 42. |
VOE244414
|
[2] |
Spring
|
|
| 43. |
VOE244622
|
[2] |
Spring disc
|
|
| 44. |
VOE244623
|
[2] |
Round nut
|
|
| 45. |
VOE6212645
|
[0001] |
Cover
|
|
| 46. |
VOE240691
|
[2] |
Bearing sleeve
|
|
| 47. |
VOE233423
|
[1] |
Shaft
|
|
| 48. |
VOE241989
|
[2] |
Sealing ring
|
|
| 49. |
VOE910112
|
[1] |
Woodruff key
|
|
| 50. |
VOE239316
|
[1] |
Hand lever
|
|
| 51. |
VOE13955272
|
[1] |
Screw
|
|
| 6. |
VOE6210700
|
[1] |
Spacer ring
|
|
| 52. |
VOE244658
|
[1] |
Arm
|
|
| 53. |
VOE233103
|
[2] |
Pin
|
|
| 54. |
VOE7238128
|
[1] |
Washer
|
|
| 55. |
VOE842457
|
[1] |
Plate
|
|
| 56. |
VOE243842
|
[1] |
Guide plate
|
|
| 57. |
VOE233071
|
[1] |
Plate
|
THICK=0,2
|
| |
VOE233072
|
[1] |
Plate
|
THICK=0,3
|
| |
VOE233427
|
[1] |
Shim
|
THICK=0,8
|
| 58. |
VOE244625
|
[0001] |
Striker plate
|
|
| 59. |
VOE955273
|
[0001] |
Hexagon screw
|
|
| 60. |
VOE13941906
|
[0001] |
Washer
|
|
| 7. |
VOE11707086
|
[1] |
Spring
|
|
| 61. |
VOE243855
|
[0001] |
Stud
|
|
| 62. |
VOE244116
|
[0001] |
Nut
|
|
| 63. |
VOE6210707
|
[0002] |
Stud
|
|
| 64. |
VOE1698167
|
[0001] |
Gasket
|
|
| 65. |
VOE7239927
|
[1] |
Screw
|
|
| 66. |
VOE956097
|
[5] |
Cross recessed screw
|
|
| 67. |
VOE244990
|
[1] |
Screw
|
|
| 68. |
VOE244738
|
[1] |
Screw
|
|
| 69. |
VOE243844
|
[1] |
Nut
|
|
| 70. |
VOE6210705
|
[1] |
Spring
|
|
| 8. |
VOE7239908
|
[2] |
Gasket
|
|
| 71. |
VOE244556
|
[1] |
Bolt
|
|
| 72. |
VOE6210716
|
[1] |
Bushing
|
|
| 73. |
VOE244555
|
[1] |
Plug
|
|
| 74. |
VOE238959
|
[1] |
Gasket
|
|
| 75. |
|
[1] |
Cold start device
|
|
| |
VOE6212669
|
|
Centrifugal governor
|
(6212669)
|
| 9. |
VOE13955894
|
[2] |
Washer
|
|
| 10. |
VOE233372
|
[1] |
Washer
|
|
| 11. |
VOE13951669
|
[1] |
Retaining ring
|
|
| 12. |
VOE7077582
|
[1] |
Key
|
|
| 13. |
VOE240688
|
[2] |
Fitting
|
|
| 14. |
VOE1699836
|
[2] |
Washer
|
|
| 15. |
VOE1698177
|
[1] |
Gasket
|
|
| 16. |
VOE6212459
|
[2] |
Screw
|
|
| 17. |
VOE6212633
|
[2] |
Screw
|
|
| 18. |
VOE6210701
|
[4] |
Screw
|
|
| 1. |
|
[1] |
Housing
|
|
| 19. |
VOE6210710
|
[4] |
Attaching bracket
|
|
| 20. |
VOE6212208
|
[1] |
Weight
|
|
| 21. |
VOE6213639
|
[1] |
Companion flange
|
|
| 22. |
VOE864744
|
[4] |
Rubber cushion
|
|
| 23. |
VOE241123
|
[1] |
Cap
|
|
| 24. |
VOE11993514
|
[1] |
Nut
|
(7240678)
|
| 25. |
VOE244754
|
[REQ] |
Shim
|
THICK=1,63
|
| |
VOE244755
|
[REQ] |
Shim
|
THICK=1,66
|
| |
VOE244756
|
[REQ] |
Shim
|
THICK=1,69
|
| |
VOE244757
|
[REQ] |
Shim
|
THICK=1,72
|
| 2. |
VOE6210696
|
[1] |
Bushing
|
|
| |
VOE244758
|
[REQ] |
Shim
|
THICK=1,75
|
| |
VOE244759
|
[REQ] |
Shim
|
THICK=1,78
|
| |
VOE244760
|
[REQ] |
Shim
|
THICK=1,81
|
| |
VOE244761
|
[REQ] |
Shim
|
THICK=1,84
|
| |
VOE11987537
|
[REQ] |
Shim
|
THICK=1,87
|
| |
VOE244763
|
[REQ] |
Shim
|
THICK=1,90
|
| |
VOE244764
|
[REQ] |
Shim
|
THICK=1,93
|
| |
VOE244765
|
[REQ] |
Shim
|
THICK=1,96
|
| |
VOE244766
|
[REQ] |
Shim
|
THICK=1,99
|
| |
VOE244767
|
[REQ] |
Shim
|
THICK=2,02
|
| 3. |
VOE6210697
|
[1] |
Shaft
|
|
| |
VOE244768
|
[REQ] |
Shim
|
THICK=2,05
|
| |
VOE244769
|
[REQ] |
Shim
|
THICK=2,08
|
| |
VOE244770
|
[REQ] |
Shim
|
THICK=2,11
|
| |
VOE244771
|
[REQ] |
Shim
|
THICK=2,14
|
| 26. |
VOE3094403
|
[0001] |
Small parts kit
|
|
| 27. |
VOE11993084
|
[0001] |
Guide sleeve
|
|
| 28. |
VOE955270
|
[0002] |
Hexagon screw
|
|
| 29. |
VOE240565
|
[0002] |
Striker plate
|
|
| 30. |
VOE7240861
|
[0001] |
Bolt
|
|
| 31. |
VOE240682
|
[1] |
Link
|
|
