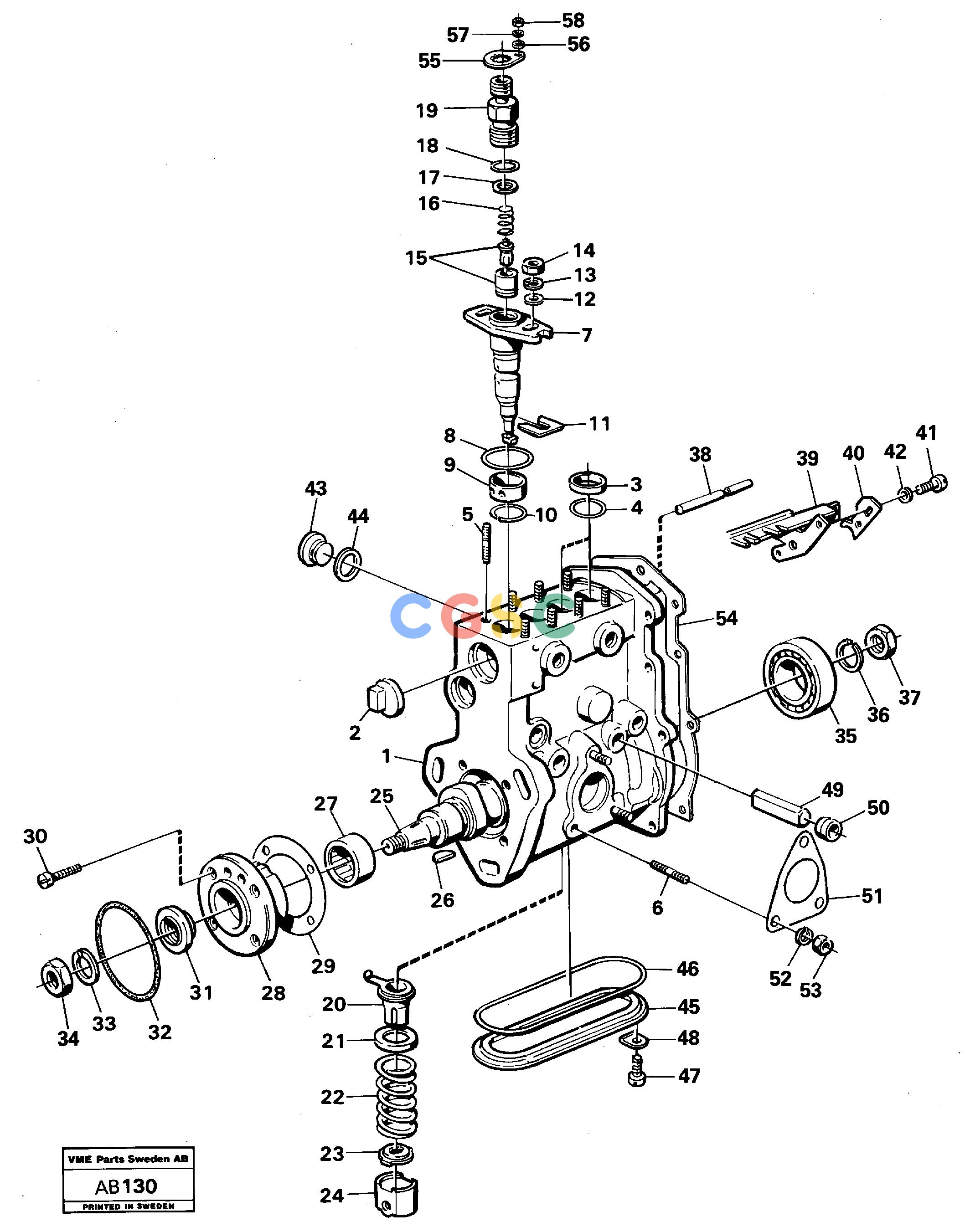

沃尔沃零件查询L50 Injection pumpL50 S/N 6401- / 60301- USA6212647-6213569NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE6212647
|
[1] |
Injection Pump
|
(6212647)
STD
|
| |
VOE6213569
|
|
Injection Pump
|
(6213569)
90417
|
| 1. |
|
[1] |
Housing
|
|
| |
|
|
Housing
|
|
| 2. |
VOE244498
|
[1] |
Cover
|
|
| 3. |
VOE244499
|
[4] |
Spacer ring
|
|
| 4. |
VOE244500
|
[4] |
O-ring
|
|
| 5. |
VOE11998540
|
[8] |
Stud
|
|
| 6. |
VOE130673
|
[3] |
Stud
|
|
| 7. |
VOE6213587
|
[4] |
Pump element
|
|
| |
VOE11992407
|
|
Pump element
|
|
| 8. |
VOE11997534
|
[4] |
O-ring
|
|
| 9. |
VOE6212662
|
[4] |
Sleeve
|
|
| 10. |
VOE1698857
|
[4] |
Lock ring
|
|
| 11. |
VOE244080
|
[REQ] |
Plate
|
THICK = 1,50
|
| |
VOE244081
|
[REQ] |
Plate
|
THICK = 1,60
|
| |
VOE244082
|
[REQ] |
Plate
|
THICK = 1,70
|
| |
VOE244083
|
[REQ] |
Plate
|
THICK = 1,80
|
| |
VOE244084
|
[REQ] |
Plate
|
THICK = 1,90
|
| |
VOE244085
|
[REQ] |
Plate
|
THICK = 2,00
|
| |
VOE244086
|
[REQ] |
Plate
|
THICK = 2,10
|
| |
VOE244087
|
[REQ] |
Plate
|
THICK = 2,20
|
| |
VOE244088
|
[REQ] |
Plate
|
THICK = 2,30
|
| |
VOE244089
|
[REQ] |
Plate
|
THICK = 2,40
|
| |
VOE244090
|
[REQ] |
Plate
|
THICK = 2,50
|
| 12. |
VOE244060
|
[8] |
Spacer ring
|
|
| 13. |
VOE13941907
|
[0008] |
Washer
|
|
| 14. |
VOE955782
|
[0008] |
Hexagon nut
|
|
| 15. |
VOE6212660
|
[4] |
Valve
|
|
| 16. |
VOE7238309
|
[4] |
Spring
|
|
| 17. |
VOE6212663
|
[4] |
Washer
|
|
| 18. |
VOE6212664
|
[4] |
O-ring
|
|
| 19. |
VOE6212659
|
[4] |
Retainer
|
|
| 20. |
VOE1698693
|
[4] |
Sleeve
|
|
| 21. |
VOE244514
|
[4] |
Spring disc
|
|
| 22. |
VOE6213548
|
[4] |
Spring
|
|
| 23. |
VOE244066
|
[4] |
Spring disc
|
|
| 24. |
VOE11998507
|
[4] |
Tappet
|
|
| 25. |
VOE6213198
|
[1] |
Camshaft
|
|
| 26. |
VOE243734
|
[1] |
Key
|
|
| 27. |
VOE6212651
|
[1] |
Roller bearing
|
|
| 28. |
VOE848736
|
[1] |
Cover
|
|
| 29. |
VOE863371
|
[1] |
Gasket
|
|
| 30. |
VOE956093
|
[4] |
Cross recessed screw
|
|
| |
VOE244847
|
|
Screw
|
|
| 31. |
VOE6212654
|
[1] |
Sealing ring
|
|
| 32. |
VOE1698556
|
[1] |
O-ring
|
(244091)
|
| 33. |
VOE941911
|
[1] |
Spring washer
|
|
| 34. |
VOE955804
|
[1] |
Hexagon nut
|
|
| 35. |
VOE11998541
|
[1] |
Ball bearing
|
|
| 36. |
VOE941915
|
[1] |
Spring washer
|
|
| 37. |
VOE244527
|
[1] |
Nut
|
|
| 38. |
VOE6213590
|
[1] |
Pin
|
|
| 39. |
VOE6212649
|
[1] |
Control rod
|
|
| 40. |
VOE244512
|
[1] |
Stop, Shoulder
|
|
| 41. |
VOE956095
|
[2] |
Cross recessed screw
|
|
| 42. |
VOE13941906
|
[2] |
Washer
|
|
| 43. |
VOE244092
|
[1] |
Plug
|
|
| 44. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 45. |
VOE6213546
|
[1] |
Cover
|
|
| 46. |
VOE1698556
|
[1] |
O-ring
|
(244091)
|
| 47. |
VOE14014666
|
[4] |
Screw
|
|
| 48. |
VOE11999936
|
[4] |
Lock washer
|
|
| 49. |
VOE6212655
|
[2] |
Pin
|
|
| 50. |
VOE11998400
|
[2] |
Cap
|
|
| 51. |
VOE863370
|
[1] |
Gasket
|
|
| 52. |
VOE13941906
|
[3] |
Washer
|
|
| 53. |
VOE13955781
|
[3] |
Nut
|
|
| 54. |
|
[1] |
Gasket
|
|
| 55. |
VOE848738
|
|
Washer
|
|
| 56. |
VOE244060
|
|
Spacer ring
|
|
| 57. |
VOE13941907
|
|
Washer
|
(941907)
|
| 58. |
VOE955782
|
|
Hexagon nut
|
|
| |
VOE6212665
|
[REQ] |
Repair kit
|
|
