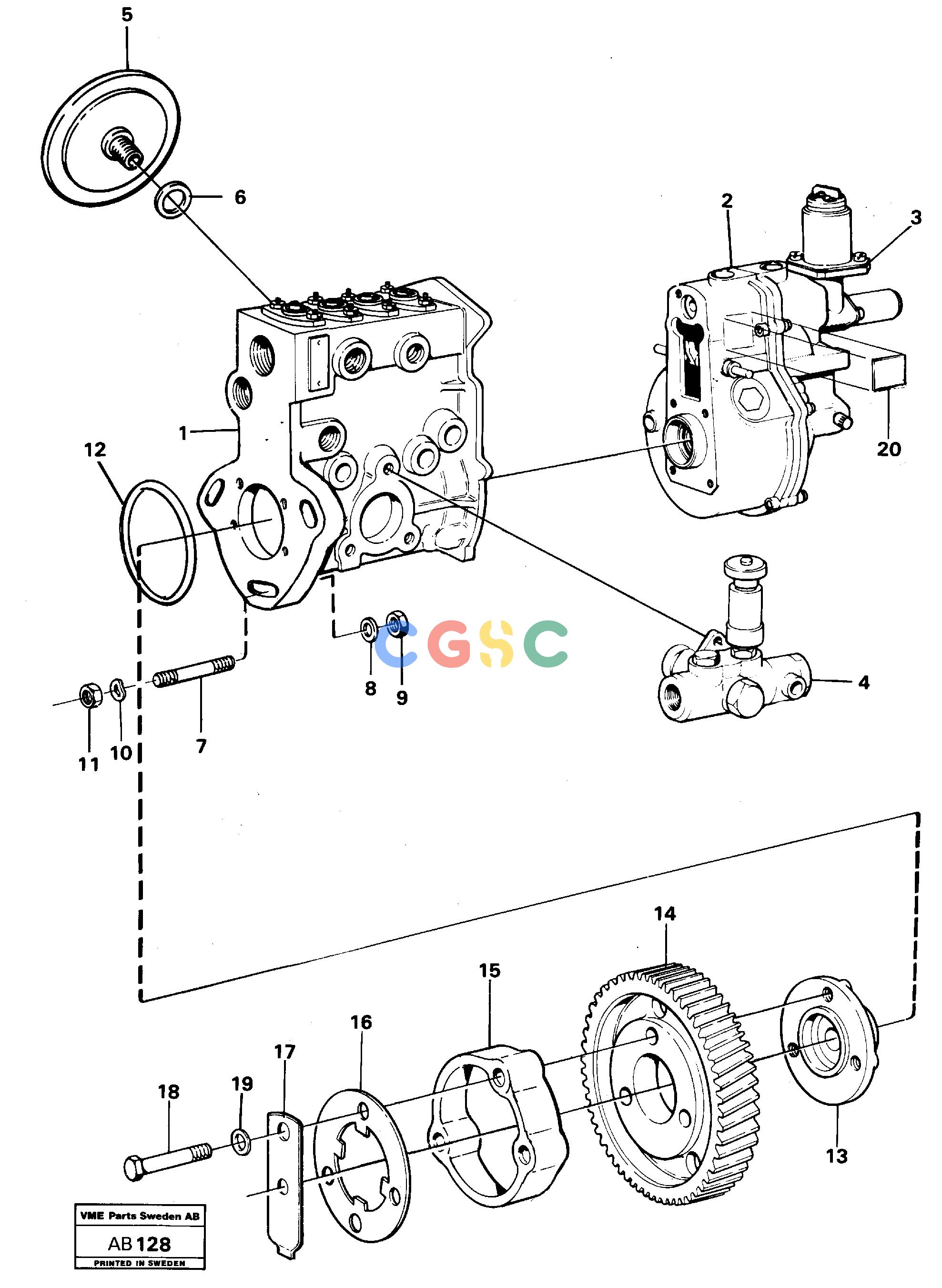

沃尔沃零件查询L50 Fuel injection pump with fitting partsL50 S/N 6401- / 60301- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
|
[1] |
Feed pump
|
|
| 5. |
VOE477173
|
[1] |
Pressure equalizer
|
|
| 6. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 7. |
VOE953261
|
[3] |
Stud
|
|
| 8. |
VOE940097
|
[3] |
Washer
|
|
| |
VOE4881161
|
|
Injection Pump
|
STD
|
| 9. |
VOE13955827
|
[3] |
Nut
|
|
| 10. |
VOE942336
|
[3] |
Spring washer
|
|
| |
VOE4881380
|
[1] |
Injection Pump
|
|
| 11. |
VOE955835
|
[3] |
Hexagon nut
|
|
| 12. |
VOE1698556
|
[1] |
O-ring
|
(244091)
|
| 13. |
VOE4804764
|
[1] |
Hub
|
|
| 14. |
VOE4804556
|
[1] |
Gear
|
|
| 15. |
VOE11030075
|
[1] |
Spacer ring
|
|
| 16. |
VOE4804632
|
[1] |
Lock washer
|
|
| 17. |
|
[1] |
Plate
|
Utgått / Deleted part
|
| 18. |
VOE13970954
|
[3] |
Hexagon screw
|
|
| 19. |
VOE940097
|
[3] |
Washer
|
|
| 20. |
VOE421311
|
[1] |
Sign
|
STD
|
| |
|
[1] |
Sign
|
|
| 1. |
|
[1] |
Injection pump
|
|
| 2. |
|
[1] |
Centrifugal governor
|
|
| 3. |
|
[1] |
Cold start device
|
|
