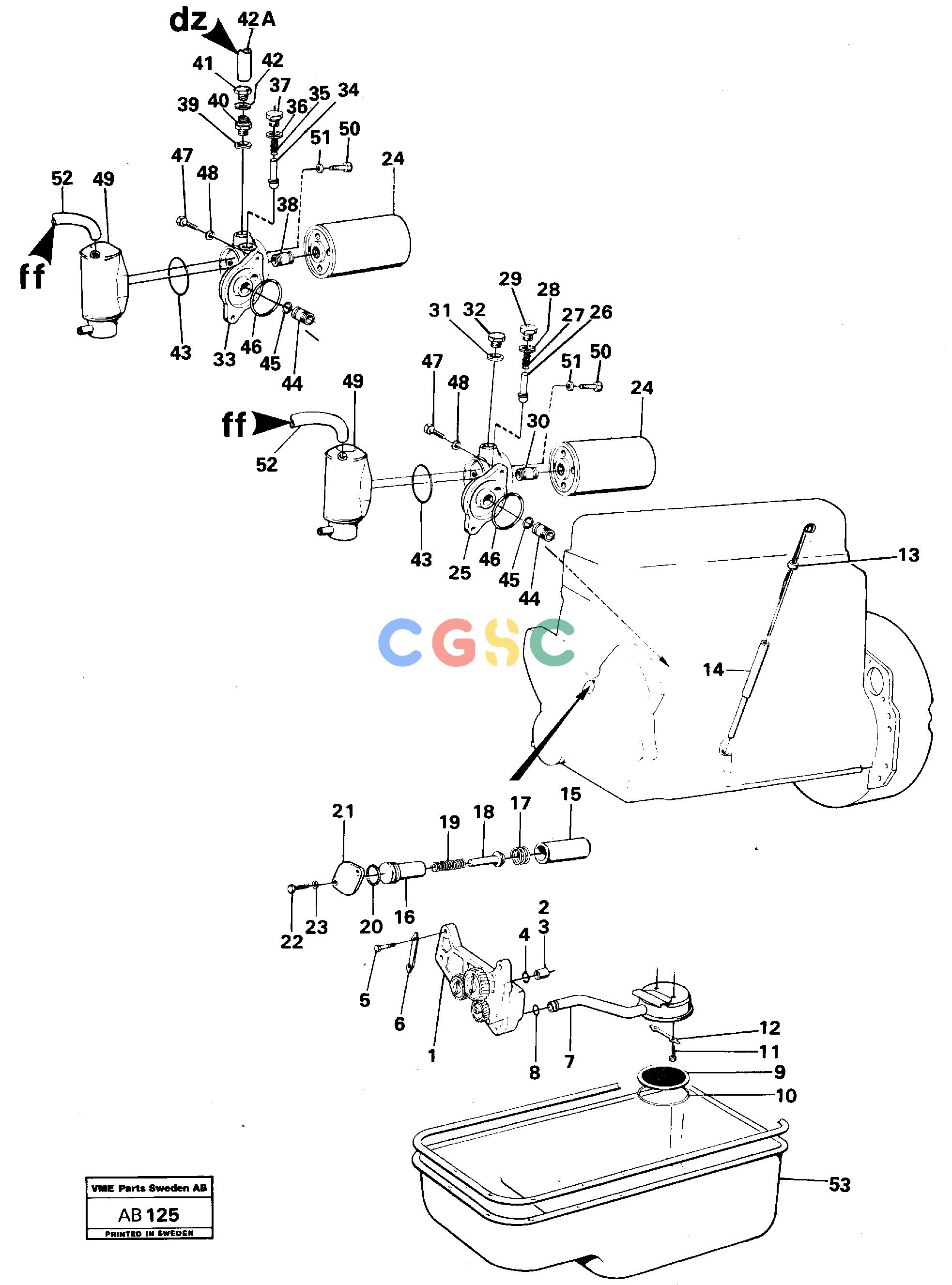

沃尔沃零件查询L50 Lubricating oil systemL50 S/N 6401- / 60301- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[0001] |
Lubricating oil pump
|
|
| 2. |
VOE785577
|
[0001] |
Guide sleeve
|
L=29
|
| 3. |
VOE785623
|
[0001] |
Guide sleeve
|
L=15
|
| 4. |
VOE955993
|
[0001] |
O-ring
|
|
| 5. |
VOE940186
|
[0003] |
Hexagon screw
|
L=38
|
| |
VOE955526
|
[0001] |
Hexagon screw
|
L=51
|
| 6. |
VOE930035
|
[0001] |
Lock washer
|
ID=8,4
|
| |
VOE7015260
|
[0001] |
Lock washer
|
ID=8,4
|
| 7. |
VOE4804776
|
[0001] |
Strainer
|
|
| 8. |
VOE942089
|
[0001] |
O-ring
|
|
| 9. |
VOE414621
|
[0001] |
Wire gauze
|
|
| 10. |
VOE118125
|
[0001] |
Snap ring
|
|
| 11. |
VOE13940135
|
[0002] |
Screw
|
|
| 12. |
VOE13941907
|
[0001] |
Washer
|
|
| 13. |
VOE785427
|
[0001] |
Dipstick
|
|
| 14. |
VOE785606
|
[0001] |
Tube
|
|
| 15. |
VOE785792
|
[0001] |
Valve housing
|
|
| 16. |
VOE787068
|
[0001] |
Housing
|
|
| 17. |
VOE785794
|
[0001] |
Spring
|
|
| 18. |
VOE421125
|
[0001] |
Valve
|
|
| 19. |
VOE421126
|
[0001] |
Spring
|
|
| 20. |
VOE925059
|
[0001] |
O-ring
|
|
| 21. |
VOE787069
|
[0001] |
Thrust washer
|
|
| 22. |
VOE955513
|
[0002] |
Hexagon screw
|
|
| 23. |
VOE13941906
|
[0002] |
Washer
|
|
| 24. |
VOE4804406
|
[0001] |
Oil filter
|
|
| |
VOE4804858
|
[1] |
Bracket
|
STD
|
| 25. |
|
[1] |
Bracket
|
|
| 26. |
VOE471085
|
[1] |
Valve cone
|
|
| 27. |
VOE4804755
|
[1] |
Compression spring
|
|
| 28. |
VOE957185
|
[1] |
Gasket
|
|
| 29. |
VOE466624
|
[1] |
Plug
|
|
| 30. |
VOE4804518
|
[1] |
Nipple
|
|
| 31. |
VOE957179
|
[1] |
Gasket
|
|
| 32. |
VOE960631
|
[1] |
Plug
|
|
| |
VOE4804521
|
[1] |
Bracket
|
|
| 33. |
|
[1] |
Bracket
|
|
| 34. |
VOE471085
|
[1] |
Valve cone
|
|
| 35. |
VOE4804755
|
[1] |
Compression spring
|
|
| 36. |
VOE957185
|
[1] |
Gasket
|
|
| 37. |
VOE466624
|
[1] |
Plug
|
|
| 38. |
VOE4804518
|
[1] |
Nipple
|
|
| 39. |
VOE957179
|
[1] |
Gasket
|
|
| 40. |
VOE13963948
|
[1] |
Nipple
|
|
| 41. |
VOE960631
|
[1] |
Plug
|
90417, 90535
|
| 42. |
VOE957179
|
[1] |
Gasket
|
90417, 90535
|
| 42A. |
|
[1] |
Hose
|
|
| 43. |
VOE926039
|
[1] |
O-ring
|
|
| 44. |
VOE785816
|
[1] |
Nipple
|
|
| 45. |
VOE955976
|
[1] |
O-ring
|
|
| 46. |
VOE926040
|
[1] |
O-ring
|
|
| 47. |
VOE955535
|
[2] |
Hexagon screw
|
|
| 48. |
VOE955950
|
[2] |
Toothed washer
|
|
| 49. |
|
[1] |
Oil cooler
|
|
| 50. |
VOE4804519
|
[2] |
Screw
|
|
| 51. |
VOE13940109
|
[2] |
Lock washer
|
|
| 52. |
|
[1] |
Hose
|
|
| 53. |
|
[1] |
Oil sump
|
|
