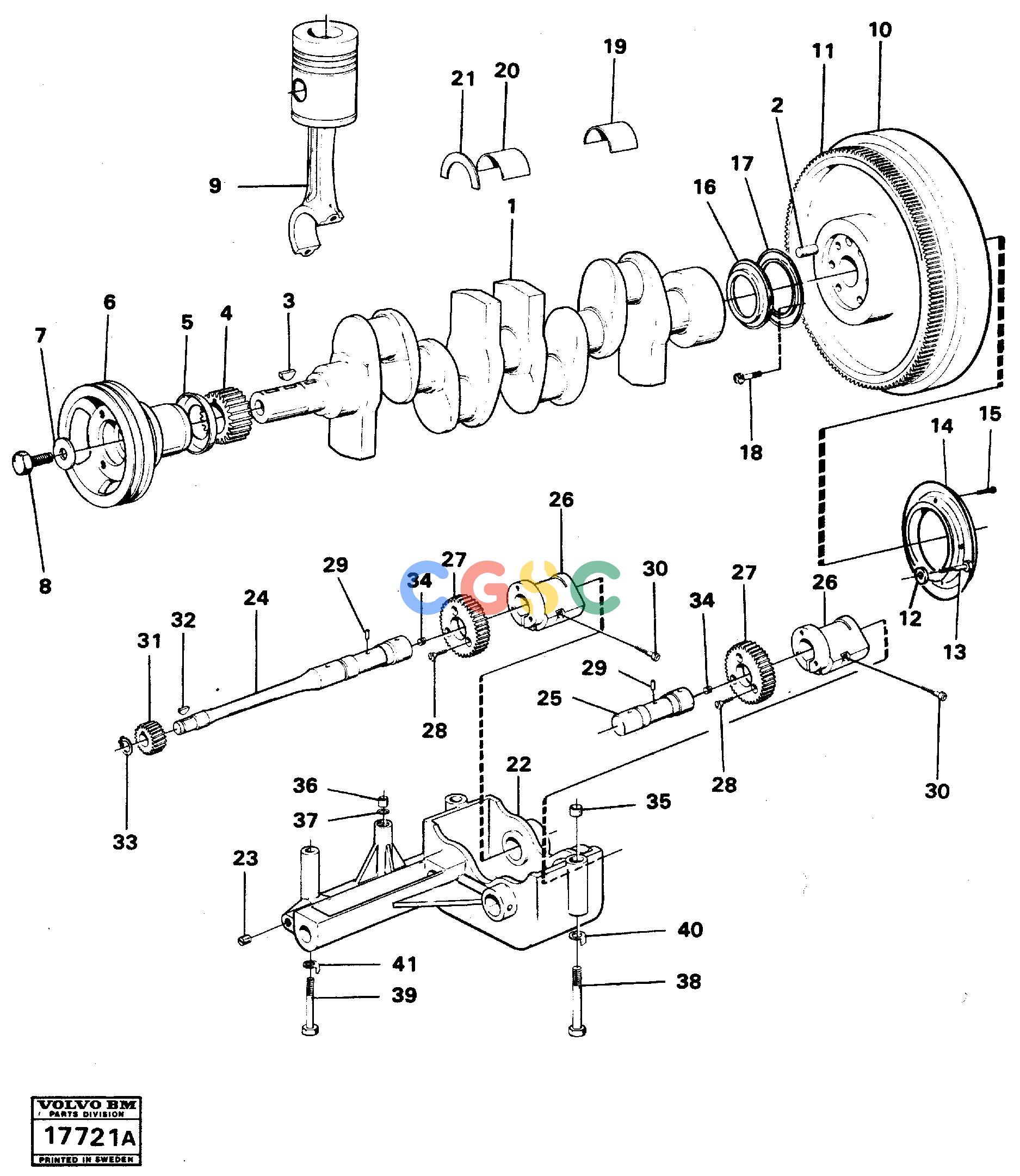

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4804294
|
[1] |
Crankshaft
|
|
| 2. |
VOE950677
|
[1] |
Pin
|
|
| 3. |
VOE910127
|
[3] |
Woodruff key
|
|
| 4. |
VOE787299
|
[1] |
Gear
|
|
| 5. |
VOE785540
|
[1] |
Oil deflector ring
|
|
| 6. |
VOE787614
|
[1] |
Pulley
|
|
| 7. |
VOE785542
|
[1] |
Washer
|
|
| 8. |
VOE787163
|
[1] |
Screw
|
|
| 9. |
|
[1] |
Cylinder liner kit
|
|
| 10. |
VOE11030041
|
[1] |
Flywheel
|
|
| 11. |
VOE4804931
|
[1] |
Gear ring
|
|
| 12. |
VOE467773
|
[6] |
Washer
|
|
| 13. |
VOE13944710
|
[6] |
Screw
|
|
| 14. |
VOE787326
|
[1] |
Oil deflector ring
|
|
| 15. |
VOE905654
|
[4] |
Drive screw
|
|
| 16. |
VOE477119
|
[1] |
Crankshaft seal
|
|
| 17. |
VOE785820
|
[1] |
Ring
|
|
| 18. |
VOE905654
|
[4] |
Drive screw
|
|
| 19. |
VOE270432
|
[4] |
Main bearing kit
|
STD
|
| |
VOE270433
|
[4] |
Main bearing kit
|
0,010" U SZ
|
| |
VOE270434
|
[4] |
Main bearing kit
|
0,020" U SZ
|
| |
VOE270435
|
[4] |
Main bearing kit
|
0,030" U SZ
|
| |
VOE270436
|
[4] |
Main bearing kit
|
0,040" U SZ
|
| |
VOE270437
|
[4] |
Main bearing kit
|
0,050" U SZ
|
| 20. |
VOE754589
|
[1] |
Bearing shell kit
|
STD
|
| |
VOE754590
|
[1] |
Bearing
|
0,010" U SZ
|
| |
VOE754591
|
[1] |
Bearing
|
0,020" U SZ
|
| |
VOE754592
|
[1] |
Bearing
|
0,030" U SZ
|
| |
VOE754594
|
[1] |
Bearing
|
0,050" U SZ
|
| 21. |
VOE276754
|
[1] |
Thrust washer
|
STD
|
| |
VOE276755
|
[1] |
Thrust washer
|
0,1 MM O SZ
|
| |
VOE276756
|
[1] |
Thrust washer
|
0,2 MM O SZ
|
| |
VOE276757
|
[1] |
Thrust washer
|
0,3 MM O SZ
|
| |
VOE4804779
|
[1] |
Vibration damper
|
|
| 22. |
VOE4804780
|
[1] |
Bracket
|
|
| 23. |
VOE7016324
|
[1] |
Plug
|
|
| 24. |
VOE785439
|
[1] |
Shaft
|
|
| 25. |
VOE785440
|
[1] |
Shaft
|
|
| 26. |
VOE4804464
|
[2] |
Counterweight
|
|
| 27. |
VOE787212
|
[2] |
Gear
|
|
| 28. |
VOE956553
|
[2] |
Hex. socket screw
|
L=16
|
| |
VOE956556
|
[4] |
Hex. socket screw
|
L=25
|
| 29. |
VOE951950
|
[2] |
Spring pin
|
|
| 30. |
VOE956588
|
[2] |
Hex. socket screw
|
|
| 31. |
VOE787298
|
[1] |
Gear
|
|
| 32. |
VOE910115
|
[1] |
Woodruff key
|
|
| 33. |
VOE914454
|
[1] |
Snap ring
|
|
| 34. |
VOE7016324
|
[2] |
Plug
|
|
| 35. |
VOE785649
|
[1] |
Sleeve
|
|
| 36. |
VOE785438
|
[1] |
Tube
|
|
| 37. |
VOE925055
|
[1] |
O-ring
|
|
| 38. |
VOE7191812
|
[2] |
Screw
|
|
| 39. |
VOE955556
|
[1] |
Hexagon screw
|
|
| 40. |
VOE921231
|
[2] |
Lock washer
|
|
| 41. |
VOE921221
|
[1] |
Lock washer
|
|
| |
VOE1161277
|
[REQ] |
Sealant
|
10g
|
