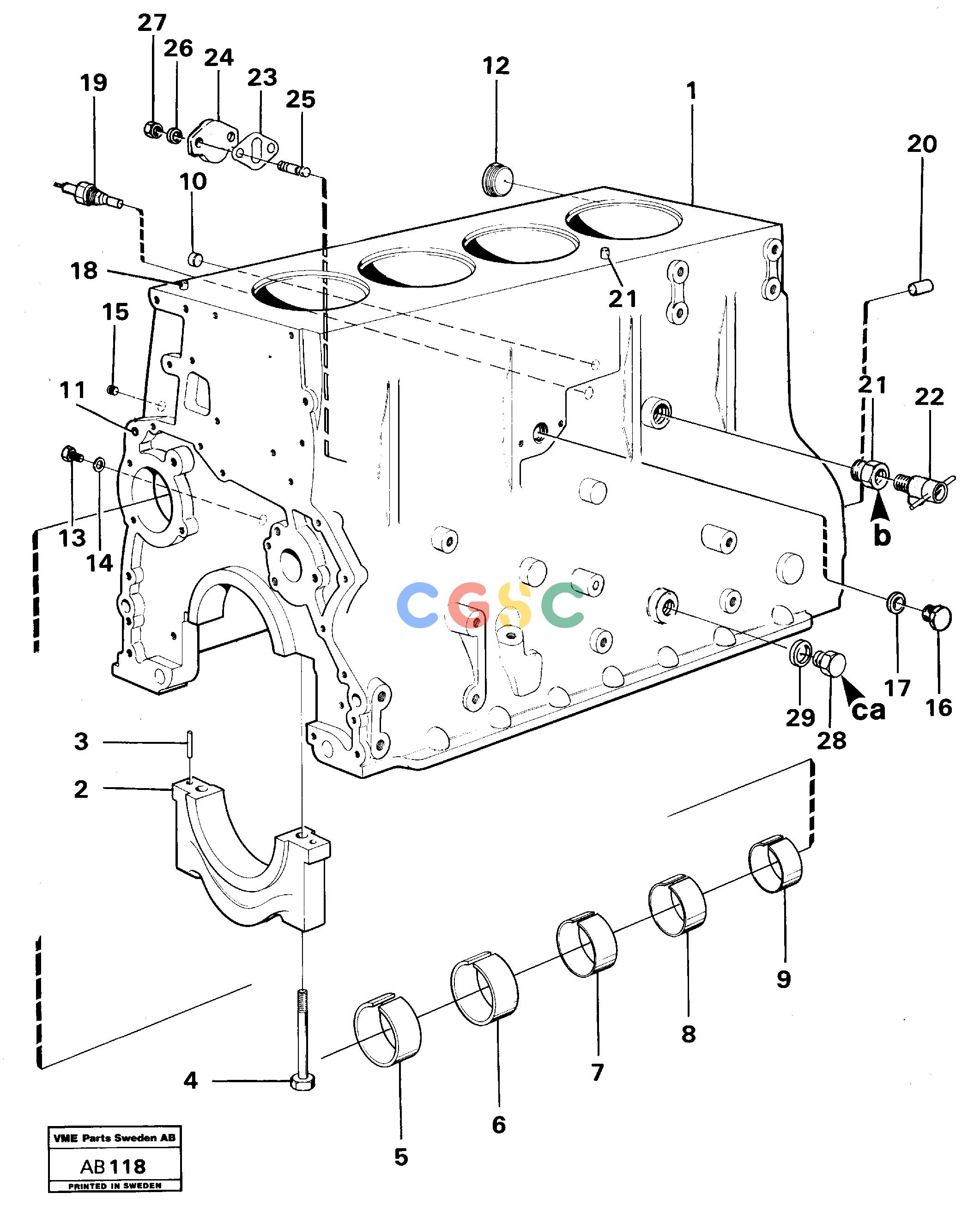

沃尔沃零件查询L50 Cylinder blockL50 S/N 6401- / 60301- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE785515
|
[1] |
Bushing
|
|
| 6. |
VOE11000014
|
[1] |
Bushing
|
|
| 7. |
VOE422080
|
[1] |
Bushing
|
|
| 8. |
VOE422081
|
[1] |
Bushing
|
|
| 9. |
VOE785443
|
[1] |
Bushing
|
|
| |
VOE4804591
|
[1] |
Cylinder block
|
|
| 10. |
VOE422369
|
[5] |
Plug
|
|
| 1. |
|
[1] |
Cylinder block
|
|
| 11. |
VOE955082
|
[3] |
Cap plug
|
OD=12,5
|
| 12. |
VOE7070792
|
[3] |
Cap plug
|
OD=50
|
| 13. |
VOE479979
|
[1] |
Plug
|
|
| 14. |
VOE957173
|
[1] |
Gasket
|
|
| 15. |
VOE13961130
|
[1] |
Plug
|
|
| 16. |
VOE4804641
|
[1] |
Plug
|
|
| 17. |
VOE957193
|
[1] |
Gasket
|
|
| 18. |
VOE785800
|
[2] |
Pin
|
|
| 19. |
VOE1606877
|
[1] |
Switch
|
OLJETRYCK / OIL PRESSURE
|
| 2. |
|
[5] |
Bearing carrier
|
|
| 20. |
VOE191171
|
[2] |
Pin
|
|
| 21. |
VOE479954
|
[1] |
Nipple
|
STD
|
| 22. |
VOE87502
|
[1] |
Drain Cock
|
STD
|
| 23. |
VOE11030028
|
[1] |
Gasket
|
(785868)
|
| 24. |
VOE7363575
|
[1] |
Plate
|
|
| 25. |
VOE953235
|
[2] |
Stud
|
|
| 26. |
VOE13941907
|
[2] |
Washer
|
(941907)
|
| 27. |
VOE955826
|
[2] |
Hexagon nut
|
|
| 28. |
VOE961895
|
[1] |
Plug
|
STD
|
| 29. |
VOE13947627
|
[1] |
Plane gasket
|
STD
|
| 3. |
VOE950564
|
[1] |
Pin
|
|
| 4. |
VOE421153
|
[10] |
Screw
|
|
