沃尔沃零件查询L45F RadiatorNone11391041-11390870VOE11391041NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次

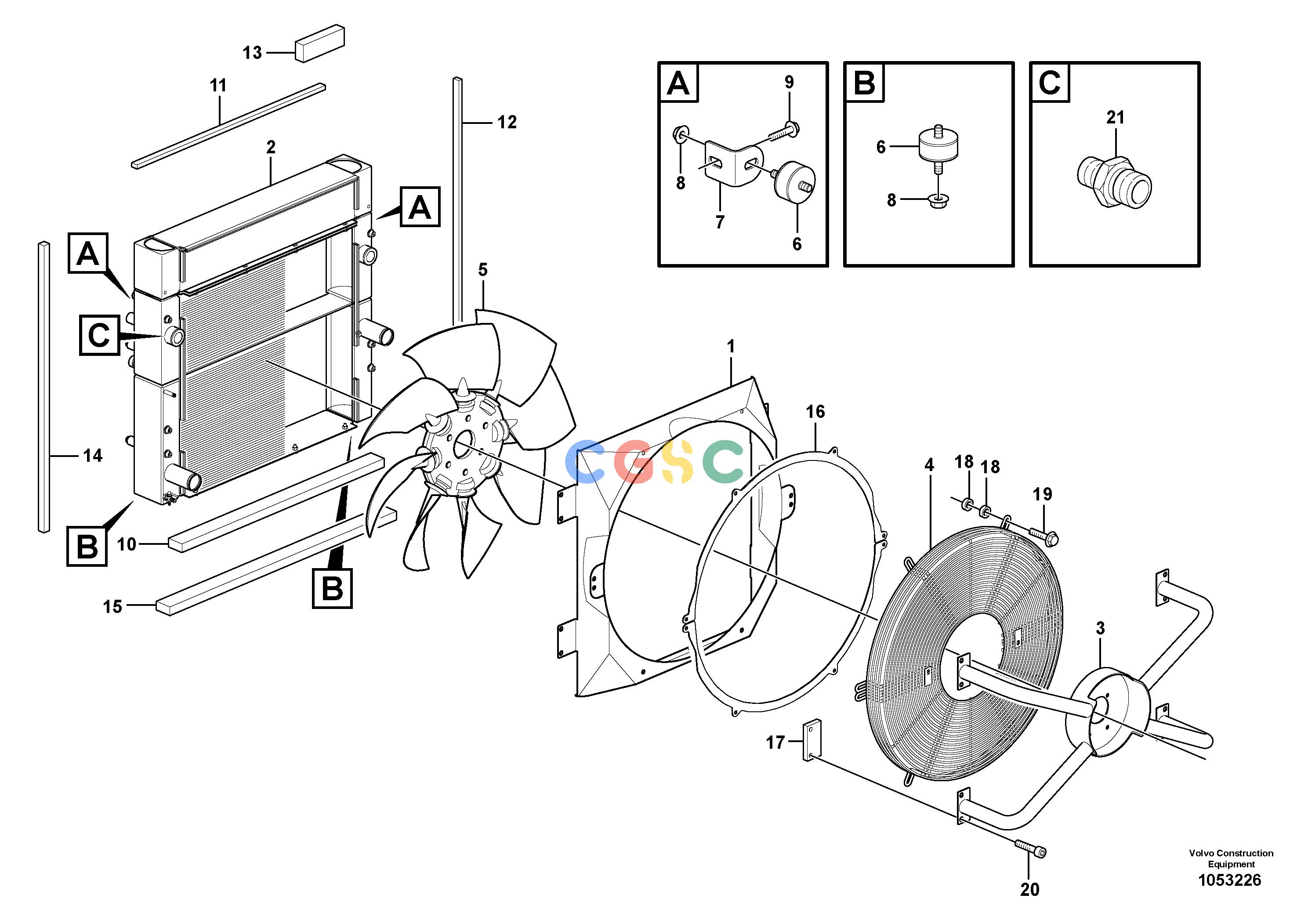

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15095231
|
[1] |
Radiator protector
|
|
| 2. |
VOE15095240
|
[1] |
Radiator
|
S/N - 1960371
|
| 2. |
VOE15192012
|
[1] |
Radiator
|
S/N 1960372 -
|
| 3. |
VOE15095313
|
[1] |
Radiator bracket
|
S/N - 1960371
|
| 3. |
VOE15192009
|
[1] |
Radiator bracket
|
S/N 1960372 -
|
| 4. |
VOE15095316
|
[1] |
Fan guard holder
|
S/N - 1960371
|
| 4. |
VOE15192010
|
[1] |
Fan guard holder
|
S/N 1960372 -
|
| |
VOE11305837
|
[8] |
Washer
|
|
| 5. |
VOE11309208
|
[1] |
Fan
|
|
| 6. |
ZM2811226
|
[4] |
Buffer
|
|
| 7. |
VOE15200959
|
[2] |
Retainer
|
|
| 8. |
VOE13971095
|
[6] |
Flange nut
|
|
| 9. |
VOE946441
|
[2] |
Flange screw
|
|
| 10. |
VOE15201375
|
[REQ] |
Sealing moulding
|
L = 750 MM
|
| 11. |
ZM4398234
|
[REQ] |
Sealing Strip
|
L = 700 MM
|
| 12. |
ZM4398234
|
[REQ] |
Sealing Strip
|
L = 825 MM
|
| 13. |
ZM2802840
|
[REQ] |
Sealing Strip
|
L = 152 MM
|
| 14. |
ZM2812113
|
[REQ] |
Sealing strip
|
L = 830 MM
|
| 15. |
VOE15201375
|
[REQ] |
Sealing moulding
|
L = 840 MM
|
| 16. |
VOE15212224
|
|
Plate
|
|
| 17. |
VOE15212243
|
|
Plate
|
|
| 18. |
VOE949869
|
|
Spacer washer
|
|
| 19. |
VOE13947760
|
|
Screw
|
|
| 20. |
VOE984081
|
|
Hex. socket screw
|
|
| 21. |
VOE15212260
|
|
Fitting
|
|
