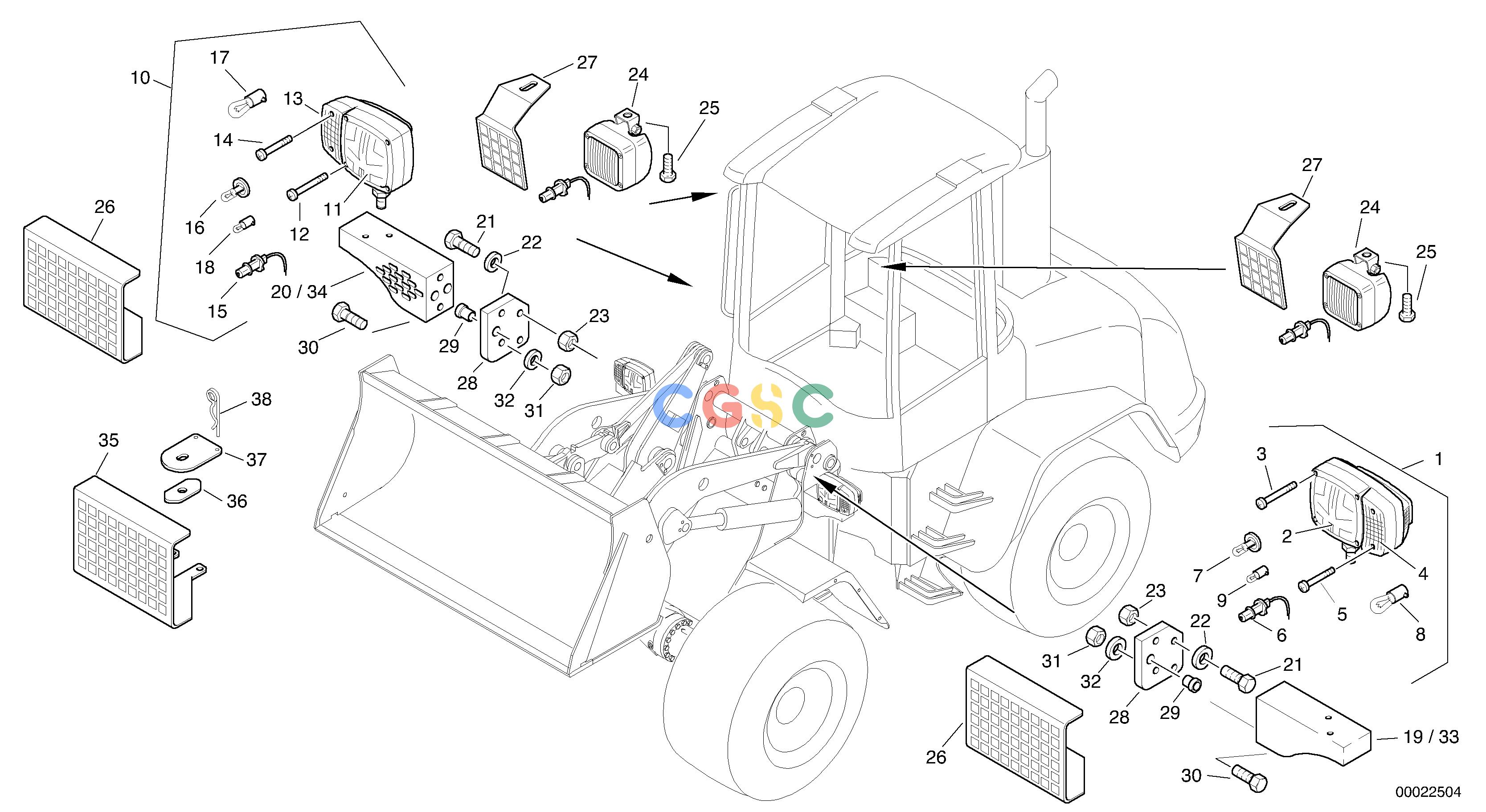

沃尔沃零件查询L45B Lighting, frontTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2808251
|
[1] |
Headlight, left
|
|
| 10. |
ZM2808252
|
[1] |
Headlight, right
|
|
| 11. |
ZM2907234
|
[1] |
Scattering disc
|
|
| 12. |
ZM2907236
|
[4] |
Screw
|
B23,9x50
|
| 13. |
ZM2907237
|
[1] |
Direction indicator, glas
|
|
| 14. |
VOE11988201
|
[2] |
Screw
|
|
| 15. |
VOE990037
|
[1] |
Bulb
|
H7 24V 70W
|
| 16. |
VOE992517
|
[1] |
Bulb
|
H3 24V 70W
|
| 17. |
VOE992521
|
[1] |
Bulb
|
P21W 24V 21W
|
| 18. |
VOE992518
|
[1] |
Bulb
|
T4W 24V 4W
|
| 19. |
VOE15209714
|
[1] |
Lantern bracket
|
|
| 2. |
ZM2907234
|
[1] |
Scattering disc
|
|
| 20. |
VOE15209711
|
[1] |
Lantern bracket
|
|
| 21. |
VOE983251
|
[4] |
Hexagon screw
|
M10x25
|
| 22. |
VOE976945
|
[4] |
Washer
|
B10,5
|
| 23. |
VOE983304
|
[4] |
Hexagon nut
|
M10
|
| 24. |
ZM2907377
|
[2] |
Work Lamp
|
|
| 25. |
VOE997434
|
[2] |
Hexagon screw
|
M10x20
|
| 26. |
ZM2815904
|
[2] |
Protective grill
|
|
| 27. |
ZM2816861
|
[2] |
Protection
|
|
| 28. |
ZM2815203
|
[2] |
Holder
|
|
| 28. |
ZM2815399
|
[2] |
Holder
|
|
| 3. |
ZM2907236
|
[4] |
Screw
|
B23,9x50
|
| 29. |
VOE11306430
|
[2] |
Cable grommet
|
|
| 30. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 30. |
ZM7095952
|
[4] |
Bolt
|
M10x80
|
| 31. |
ZM983304
|
[4] |
Nut
|
M10
|
| 32. |
VOE976945
|
[4] |
Washer
|
B10,5
|
| 33. |
VOE15620379
|
[1] |
Lantern bracket
|
|
| 34. |
ZM2815208
|
[1] |
Holder, right
|
|
| 35. |
ZM2815904
|
[2] |
Protective grill
|
Option
|
| 36. |
ZM2815905
|
[2] |
Centering washer
|
|
| 37. |
ZM2815906
|
[2] |
Top plate
|
|
| 4. |
ZM2907237
|
[1] |
Direction indicator, glas
|
|
| 38. |
VOE11305165
|
[4] |
Retaining pin
|
3,2
|
| 5. |
VOE11988201
|
[2] |
Screw
|
|
| 6. |
VOE990037
|
[1] |
Bulb
|
H7 24V 70W
|
| 7. |
VOE992517
|
[1] |
Bulb
|
H3 24V 70W
|
| 8. |
VOE992521
|
[1] |
Bulb
|
P21W 24V 21W
|
| 9. |
VOE992518
|
[1] |
Bulb
|
T4W 24V 4W
|
