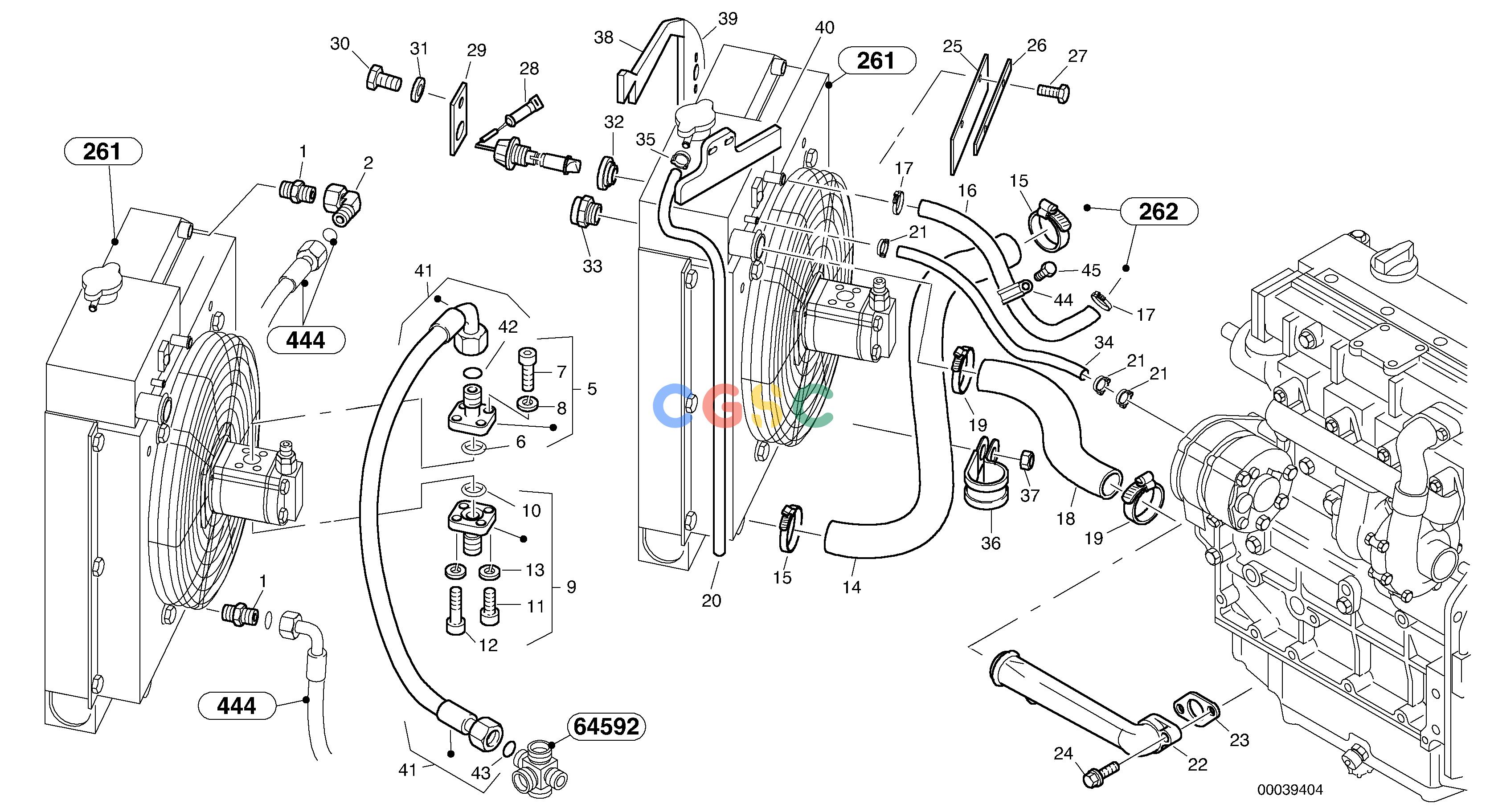

沃尔沃零件查询L45B Cooling pipesTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM7091970
|
[1] |
Fitting
|
L22G3/4 B
|
| 12. |
ZM7096552
|
[2] |
Screw
|
M6x35
|
| 13. |
ZM7098300
|
[4] |
Spring ring
|
6
|
| 14. |
ZM2813365
|
[1] |
Cooling hose
|
|
| 15. |
VOE943479
|
[2] |
Hose clamp
|
|
| 16. |
ZM2813364
|
[1] |
Hose
|
|
| 17. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 18. |
ZM2814632
|
[1] |
Cooling hose
|
|
| 19. |
VOE943479
|
[2] |
Hose clamp
|
|
| 20. |
ZM2810277
|
[1] |
Fuel hose
|
|
| 21. |
ZM2060781
|
[3] |
Clip
|
12x9
|
| 2. |
VOE944258
|
[1] |
Elbow nipple
|
L22
|
| 22. |
ZM2908429
|
[1] |
Pipe
|
|
| 23. |
VOE20412341
|
[1] |
Gasket
|
|
| 24. |
VOE20405672
|
[3] |
Screw
|
|
| 25. |
ZM2816053
|
[1] |
Rubber plate
|
|
| 26. |
ZM2816054
|
[1] |
Holder
|
|
| 27. |
ZM7095370
|
[2] |
Screw
|
M8x16
|
| 28. |
ZM2907349
|
[1] |
Level relay
|
|
| 29. |
ZM2816056
|
[1] |
Holder
|
|
| 30. |
VOE983242
|
[1] |
Hexagon screw
|
M8x20
|
| 31. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 5. |
VOE11306827
|
[1] |
Pump flange
|
|
| 32. |
ZM2907350
|
[1] |
Rubber spout
|
|
| 33. |
VOE14370488
|
[1] |
Level indicator
|
|
| 34. |
ZM3402930
|
[1] |
Hose
|
|
| 35. |
ZM2060781
|
[1] |
Clip
|
12x9
|
| 36. |
VOE14371733
|
[1] |
Clamp
|
60x25
|
| 37. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 38. |
ZM2816055
|
[1] |
Damping material
|
|
| 39. |
ZM2816051
|
[1] |
Damping material
|
|
| 40. |
ZM2816052
|
[1] |
Damping material
|
|
| 41. |
ZM2814641
|
[1] |
Hose
|
|
| 6. |
ZM2030671
|
[1] |
O-ring
|
|
| 42. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 43. |
ZM2259051
|
[1] |
O-ring
|
6,5x1,5
|
| 44. |
ZM2811430
|
[1] |
Pipe clip
|
|
| 45. |
VOE13970944
|
[1] |
Hexagon screw
|
M10x16
|
| 7. |
ZM7096556
|
[4] |
Screw
|
M6x22
|
| 8. |
ZM7098300
|
[4] |
Spring ring
|
6
|
| 9. |
VOE11305366
|
[1] |
Fitting
|
|
| 10. |
ZM2030670
|
[1] |
O-ring
|
|
| 11. |
ZM7096556
|
[2] |
Screw
|
M6x22
|
