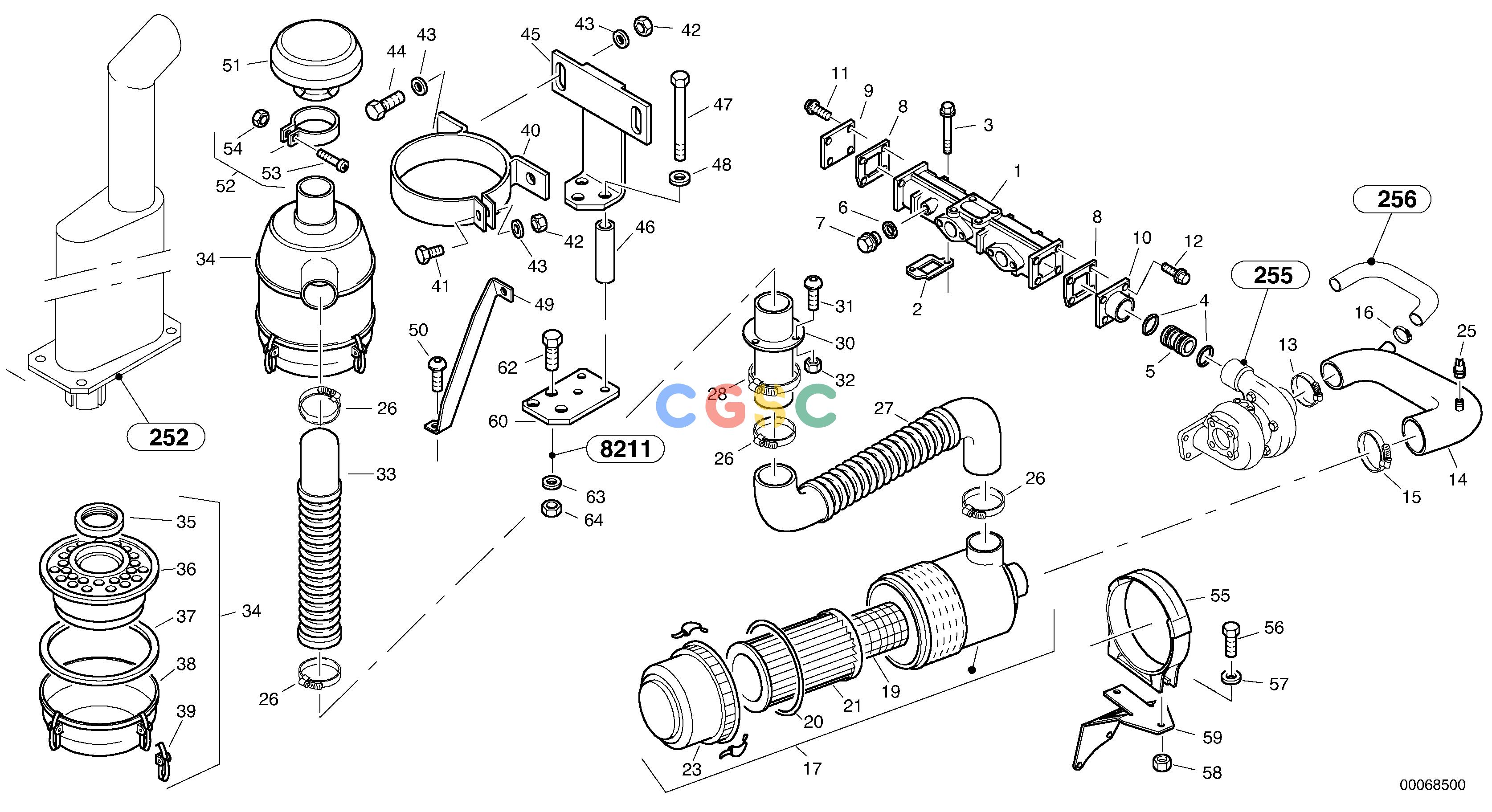

沃尔沃零件查询L45B Prefilter - Oil bath air filterTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20586810
|
[1] |
Inlet Manifold
|
|
| 2. |
VOE21815267
|
[4] |
Gasket
|
|
| 3. |
VOE22278501
|
[8] |
Hexagon screw
|
M6x95
|
| 4. |
VOE20405536
|
[2] |
Sealing ring
|
|
| 5. |
VOE20405616
|
[1] |
Adapter
|
|
| 6. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 7. |
ZM8099411
|
[1] |
Screw
|
M14x1,5
|
| 8. |
VOE20451009
|
[2] |
Gasket
|
|
| 9. |
ZM2903945
|
[1] |
Cover
|
|
| 10. |
VOE22417599
|
[1] |
Flange
|
|
| 11. |
VOE20460241
|
[4] |
Screw
|
M8x22
|
| 12. |
VOE20481759
|
[4] |
Screw
|
|
| 13. |
ZM2060784
|
[1] |
Clip
|
AS50-70
|
| 14. |
ZM11305746
|
[1] |
Pipe
|
|
| 15. |
VOE943483
|
[1] |
Hose clamp
|
|
| 16. |
ZM2060782
|
[1] |
Clip
|
AS20-32
|
| 17. |
ZM2811091
|
[1] |
Air filter, cpl.
|
|
| 19. |
ZM2908238
|
[1] |
Safety cartridge
|
|
| 20. |
ZM2908897
|
[1] |
Gasket
|
|
| 21. |
ZM2908237
|
[1] |
Main element
|
|
| 23. |
ZM2908896
|
[1] |
Housing-under part
|
|
| 25. |
VOE11306606
|
[1] |
Switch
|
|
| 26. |
VOE943483
|
[1] |
Hose clamp
|
|
| 27. |
ZM2814634
|
[1] |
Air hose
|
|
| 28. |
VOE943483
|
[1] |
Hose clamp
|
|
| 30. |
ZM2817452
|
[1] |
Pipe
|
|
| 31. |
ZM2810327
|
[3] |
Screw
|
M6x16
|
| 32. |
ZM7098000
|
[3] |
Nut
|
M6
|
| 33. |
ZM2814147
|
[1] |
Suction hHose
|
|
| 34. |
VOE4804356
|
[1] |
Air filter
|
|
| 35. |
ZM1040460
|
[1] |
Gasket
|
|
| 36. |
ZM1040242
|
[1] |
Filter
|
|
| 37. |
ZM1040461
|
[1] |
Gasket
|
|
| 38. |
VOE6612506
|
[1] |
Reservoir
|
|
| 39. |
VOE6212135
|
[1] |
Oil reservoir
|
|
| 40. |
ZM2113480
|
[1] |
Retainer
|
|
| 41. |
VOE983252
|
[1] |
Hexagon screw
|
|
| 42. |
ZM7098002
|
[3] |
Nut
|
M10
|
| 43. |
VOE11307559
|
[5] |
Washer
|
B10,5
|
| 44. |
VOE983252
|
[2] |
Hexagon screw
|
|
| 45. |
ZM2807185
|
[1] |
Holder
|
|
| 46. |
ZM2816320
|
[3] |
Tube
|
|
| 47. |
VOE955309
|
[3] |
Hexagon screw
|
M8x120
|
| 48. |
VOE11117464
|
[3] |
Plain washer
|
|
| 49. |
ZM2814142
|
[1] |
Support
|
|
| 50. |
ZM2810334
|
[1] |
Screw
|
M10x25
|
| 51. |
ZM2800818
|
[1] |
Cap
|
|
| 52. |
ZM2900488
|
[1] |
Pipe clip
|
|
| 53. |
ZM2900489
|
[1] |
Screw
|
|
| 54. |
ZM7098450
|
[1] |
Nut
|
|
| 55. |
ZM2811084
|
[1] |
Holder
|
|
| 56. |
VOE983244
|
[2] |
Hexagon screw
|
M8x30
|
| 57. |
ZM7098750
|
[4] |
Washer
|
B 8,4
|
| 58. |
ZM8098397
|
[2] |
Nut
|
M8
|
| 59. |
ZM2815867
|
[1] |
Member
|
|
| 60. |
ZM2816329
|
[1] |
Plate
|
|
| 62. |
VOE983252
|
[3] |
Hexagon screw
|
|
| 63. |
VOE960148
|
[3] |
Plain washer
|
B10,5
|
| 64. |
ZM7098002
|
[3] |
Nut
|
M10
|
