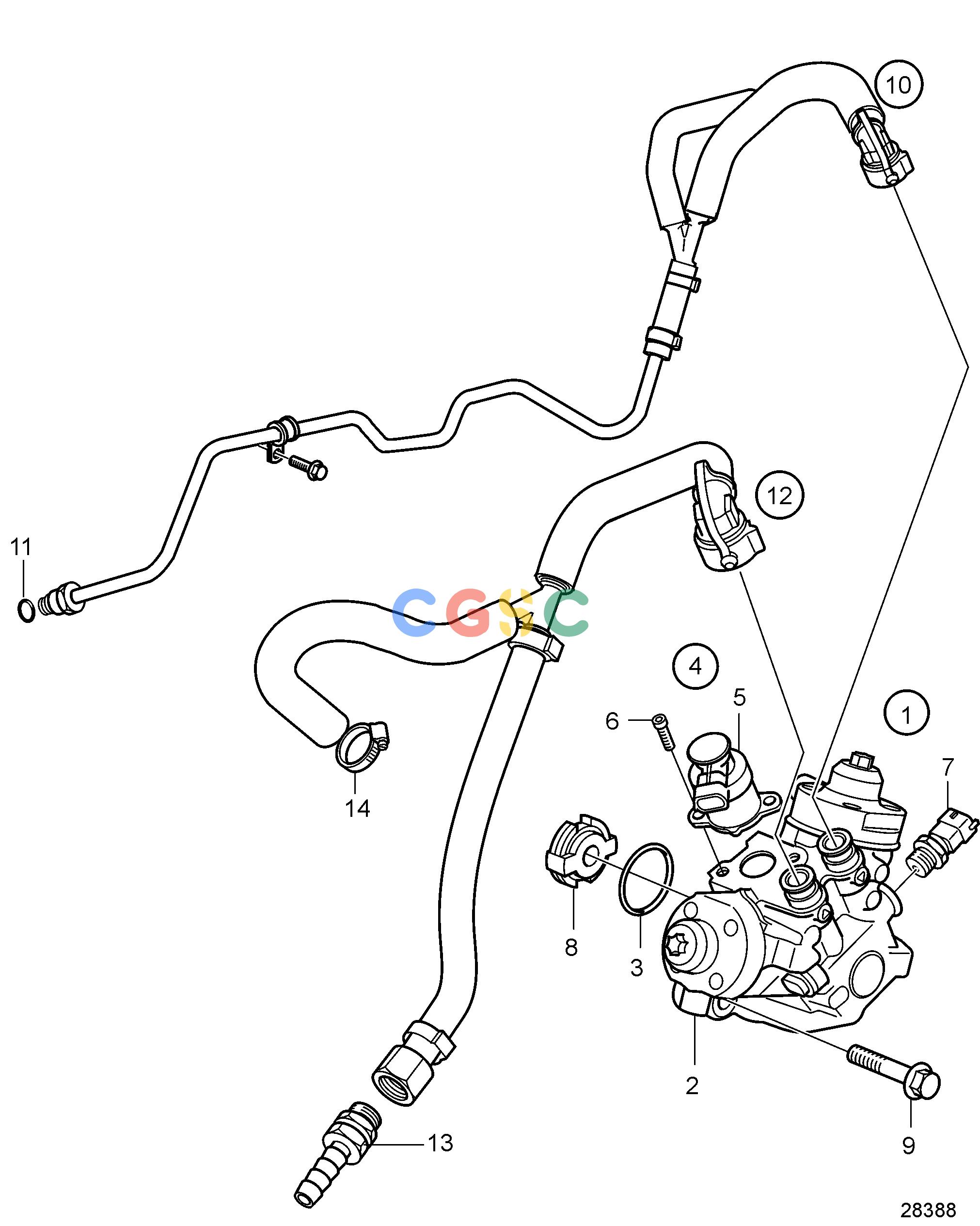

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Fuel SystemFuel Injection PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 18 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
36002064
|
[1] |
High-pressure pump
|
|
2. |
31259211
|
[1] |
Housing
|
|
3. |
31259208
|
[1] |
O-ring
|
|
4. |
31478083
|
[1] |
Kit
|
|
5. |
30777529
|
[1] |
Control valve
|
Replaced by 31478083
|
5. |
31478083
|
[1] |
Kit
|
|
6. |
31259210
|
[2] |
Screw
|
|
7. |
31272619
|
[1] |
Temperature sensor
|
|
8. |
30777586
|
[1] |
Cross connection
|
|
9. |
982799
|
[3] |
Flange screw
|
M8x45mm
|
10. |
21467499
|
[1] |
Fuel pipe
|
|
11. |
976011
|
[1] |
O-ring
|
|
12. |
21467497
|
[1] |
Hose assembly
|
|
13. |
21282656
|
[1] |
Bulkhead grommet
|
|
14. |
961663
|
[1] |
Hose clamp
|
|
