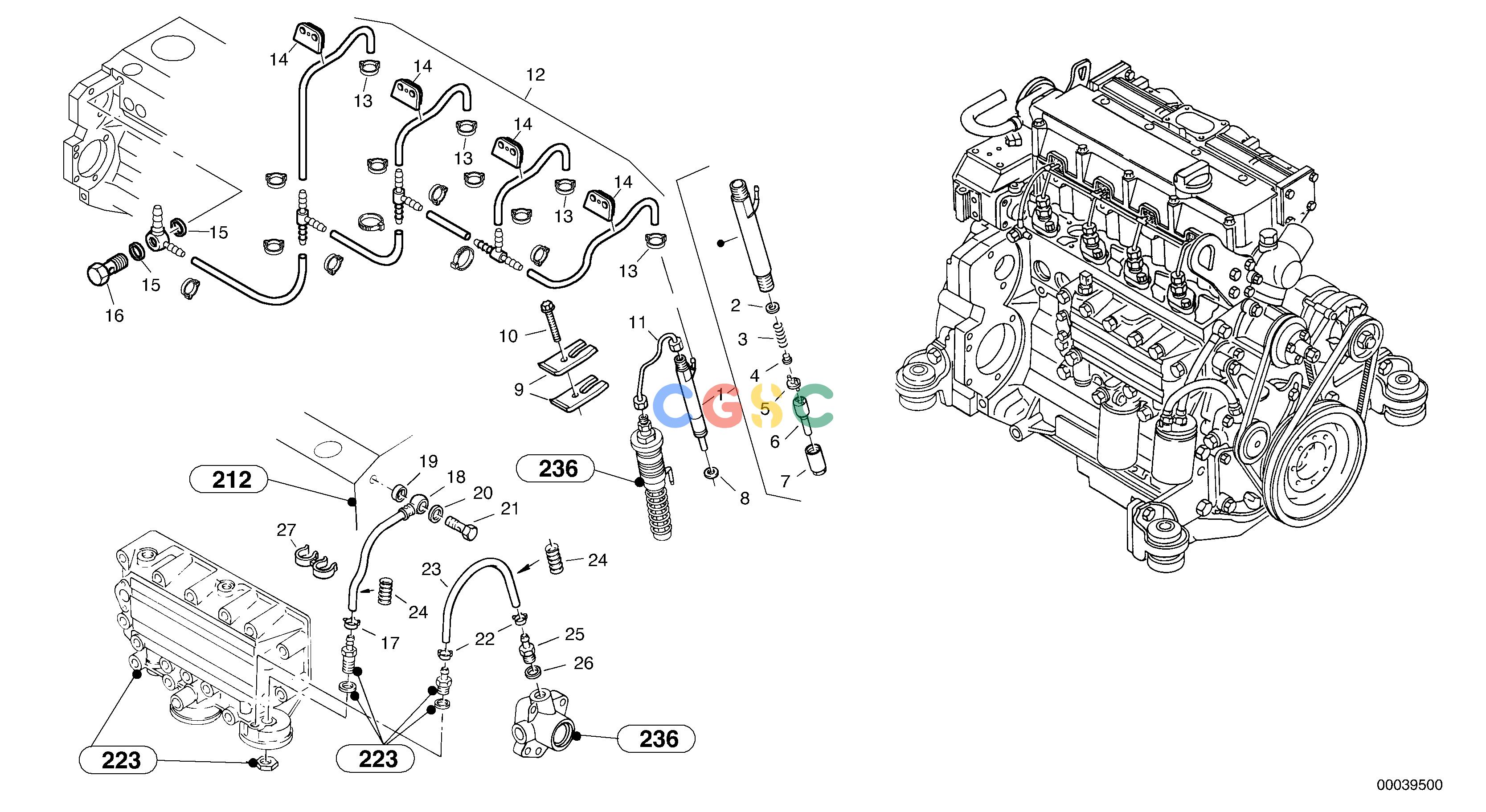

沃尔沃零件查询L45B Injection pipes, Injection valveTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online_沃尔沃Volvo Construction_工程机械

沃尔沃零件查询L45B Injection pipes, Injection valveTYPE 194, 195 SER NO - 14991941001--1951001-NoneNoneNoneAutodata Volvo online

广数供应链运营团队, 14 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	VOE20543483	[4]	Injector	E PROD
1.	VOE20543483	[4]	Injector	L PROD
2.	VOE11705716	[1]	Shim	1,00 mm E PROD
2.	VOE11705717	[REQ]	Shim	1,04 mm E PROD
2.	VOE11705718	[REQ]	Shim	1,08 mm E PROD
2.	VOE11705719	[REQ]	Shim	1,10 mm E PROD
2.	VOE11705720	[REQ]	Shim	1,14 mm E PROD
2.	VOE11705721	[REQ]	Shim	1,18 mm E PROD
2.	VOE11705722	[REQ]	Shim	1,20 mm E PROD
2.	VOE11705723	[REQ]	Shim	1,24 mm E PROD
2.	VOE11705724	[REQ]	Shim	1,28 mm E PROD
2.	VOE11705725	[REQ]	Shim	1,30 mm E PROD
2.	VOE11705726	[REQ]	Shim	1,34 mm E PROD
2.	VOE11705727	[REQ]	Shim	1,38 mm E PROD
2.	VOE11705728	[REQ]	Shim	1,40 mm E PROD
2.	VOE11705729	[REQ]	Shim	1,44 mm E PROD
2.	VOE11705730	[REQ]	Shim	1,48 mm E PROD
2.	VOE11705731	[REQ]	Shim	1,50 mm E PROD
2.	VOE11705732	[REQ]	Shim	1,54 mm E PROD
2.	VOE11705733	[REQ]	Shim	1,58 mm E PROD
2.	VOE11705734	[REQ]	Shim	1,60 mm E PROD
2.	VOE11705735	[REQ]	Shim	1,64 mm E PROD
2.	VOE11705736	[REQ]	Shim	1,68 mm E PROD
2.	VOE11705737	[REQ]	Shim	1,70 mm E PROD
2.	VOE11705738	[REQ]	Shim	1,74 mm E PROD
2.	VOE11705739	[REQ]	Shim	1,78 mm E PROD
2.	VOE11705740	[REQ]	Shim	1,80 mm E PROD
2.	VOE11705741	[REQ]	Shim	1,84 mm E PROD
2.	VOE11705742	[REQ]	Shim	1,88 mm E PROD
2.	VOE11705743	[REQ]	Shim	1,90 mm E PROD
2.	ZM2901207	[REQ]	Spacer	1,94 mm E PROD
2.	VOE11700462	[REQ]	Shim	1,98 mm E PROD
2.	VOE20709929	[1]	Shim	1,00 MM L PROD
2.	VOE20709944	[REQ]	Shim	1,06 MM L PROD
2.	VOE20709947	[REQ]	Shim	1,10 MM L PROD
2.	VOE20709952	[REQ]	Shim	1,15 MM L PROD
2.	VOE20709955	[REQ]	Shim	1,20 MM L PROD
2.	VOE20709958	[REQ]	Shim	1,25 MM L PROD
2.	VOE20709959	[REQ]	Shim	1,30 MM L PROD
2.	VOE20709961	[REQ]	Shim	1,35 MM L PROD
2.	VOE20709962	[REQ]	Shim	1,40 MM L PROD
2.	VOE20709963	[REQ]	Shim	1,45 MM L PROD
2.	VOE20709964	[REQ]	Shim	1,50 MM L PROD
2.	VOE20709965	[REQ]	Shim	1,55 MM L PROD
2.	VOE20709966	[REQ]	Shim	1,60 MM L PROD
2.	VOE20709967	[REQ]	Shim	1,65 MM L PROD
2.	VOE20709969	[REQ]	Shim	1,70 MM L PROD
2.	VOE20709970	[REQ]	Shim	1,75 MM L PROD
2.	VOE20709971	[REQ]	Shim	1,80 MM L PROD
2.	VOE20709972	[REQ]	Shim	1,85 MM L PROD
2.	VOE20709973	[REQ]	Shim	1,90 MM L PROD
2.	VOE20709974	[REQ]	Shim	1,95 MM L PROD
2.	VOE20709975	[REQ]	Shim	2,00 MM L PROD
3.	ZM2901209	[1]	Thrust Spring
4.	VOE20405525	[1]	Bolt
5.	VOE11700430	[1]	Washer
6.	VOE20405869	[1]	Nozzle
7.	VOE11700432	[1]	Cap nut
8.	VOE11700426	[4]	Sealing ring
9.	VOE11700424	[8]	Retainer
10.	ZM2900423	[4]	Screw
11.	VOE20405567	[4]	Delivery pipe
12.	VOE20405864	[1]	Fuel hose
13.	VOE20450674	[4]	Clip
14.	VOE20405886	[4]	Rubber Seal
15.	VOE13969011	[2]	Gasket	A14x20
16.	VOE20405847	[1]	Valve
17.	VOE20405568	[1]	Clip
18.	VOE11988323	[1]	Fuel hose
19.	VOE20405769	[1]	Sealing ring
20.	ZM7099503	[1]	Seal	A14x18
21.	VOE20405562	[1]	Hollow screw
22.	VOE20405568	[2]	Clip
23.	VOE20405766	[1]	Hose
24.	VOE20405763	[1]	Tube
25.	VOE20405767	[1]	Hose nipple
26.	ZM7099503	[1]	Seal	A14x18
27.	VOE20405764	[1]	Hose retainer
