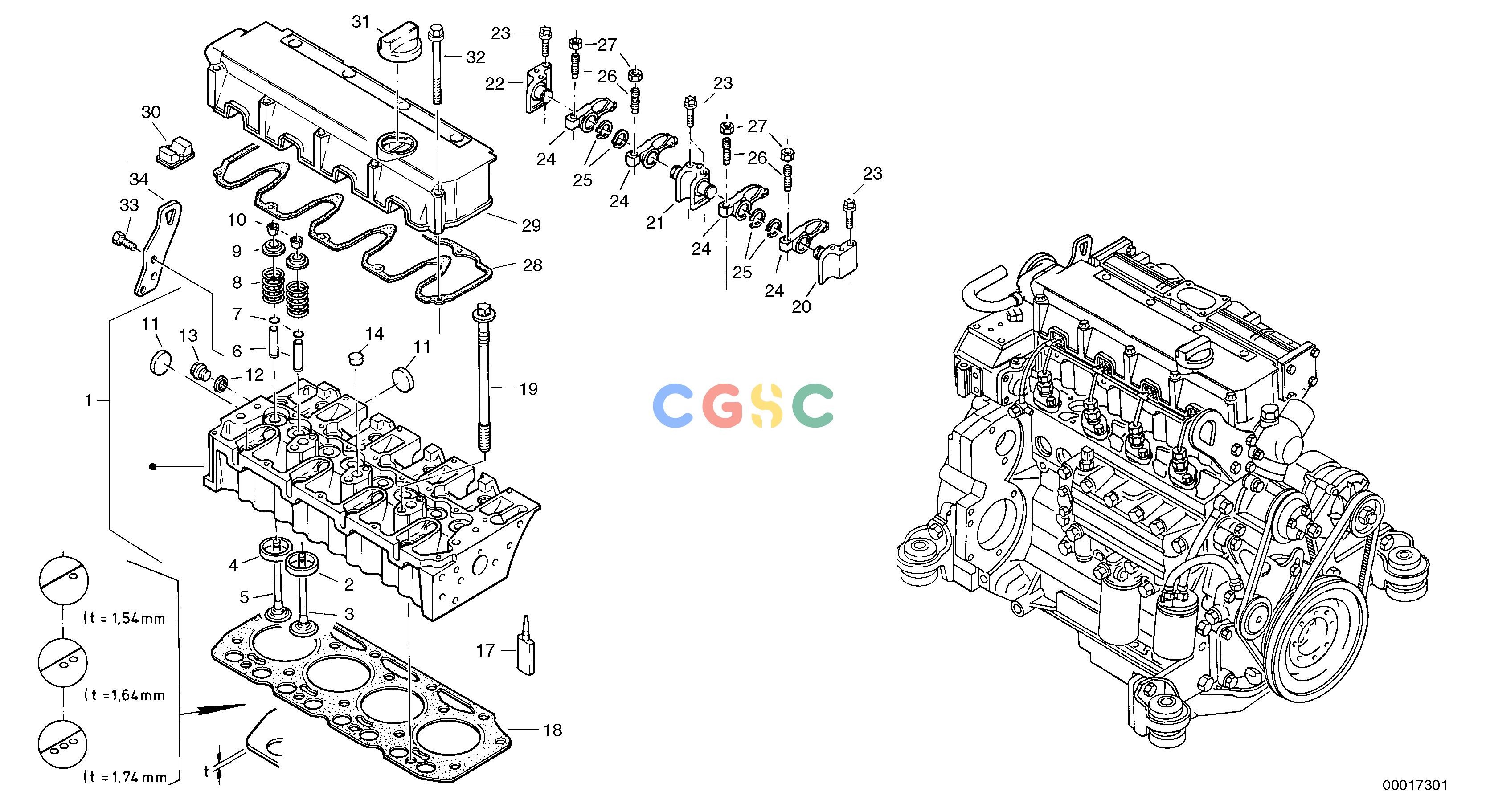

沃尔沃零件查询L40B Cylinder head, timing gearsTYPE 191, 192 SER NO - 14991911001--1921001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20405500
|
[1] |
Cylinder head
|
|
| 10. |
VOE11700345
|
[16] |
Valve sleeve
|
|
| 11. |
VOE20412745
|
[4] |
Core plug
|
36
|
| 12. |
VOE13947628
|
[1] |
Plane gasket
|
|
| 13. |
VOE20464451
|
[1] |
Plug
|
|
| 14. |
VOE20412733
|
[3] |
Core plug
|
|
| 17. |
ZM2903912
|
[REQ] |
Locking agent
|
|
| 18. |
VOE11700335
|
[1] |
Cylinder head gasket
|
1,54 mm
|
| 18. |
VOE11700336
|
[REQ] |
Cylinder head gasket
|
1,64 mm
|
| 18. |
VOE11700337
|
[REQ] |
Cylinder head gasket
|
1,74 mm
|
| 19. |
VOE11700334
|
[18] |
Screw
|
|
| 2. |
VOE20459962
|
[4] |
Valve seat
|
|
| 20. |
VOE11700367
|
[1] |
Bearing bracket
|
|
| 21. |
VOE11700368
|
[3] |
Bearing bracket
|
|
| 22. |
VOE11700369
|
[1] |
Bearing bracket
|
|
| 23. |
VOE20459853
|
[14] |
Screw
|
|
| 24. |
VOE21432929
|
[8] |
Rocker Arm
|
|
| 25. |
VOE945495
|
[8] |
Snap ring
|
21x1,2
|
| 26. |
VOE20405524
|
[8] |
Screw
|
|
| 27. |
VOE11700373
|
[8] |
Nut
|
|
| 28. |
VOE20412588
|
[1] |
Gasket
|
|
| 29. |
ZM2906924
|
[1] |
Valve Cover
|
|
| 3. |
VOE20714469
|
[4] |
Inlet valve
|
|
| 30. |
VOE20412590
|
[1] |
Cap
|
|
| 31. |
ZM2900334
|
[1] |
Filler cap
|
|
| 32. |
ZM2906925
|
[9] |
Screw
|
|
| 33. |
ZM5225782
|
[3] |
Screw
|
|
| 34. |
ZM2900487
|
[1] |
Plate
|
|
| 4. |
VOE20459963
|
[4] |
Valve seat
|
|
| 5. |
VOE20565912
|
[4] |
Exhaust Valve
|
|
| 6. |
VOE20405897
|
[8] |
Valve guide
|
|
| 7. |
VOE11700348
|
[8] |
O-ring
|
|
| 8. |
VOE11700347
|
[8] |
Valve spring
|
|
| 9. |
VOE11700346
|
[8] |
Washer
|
|
