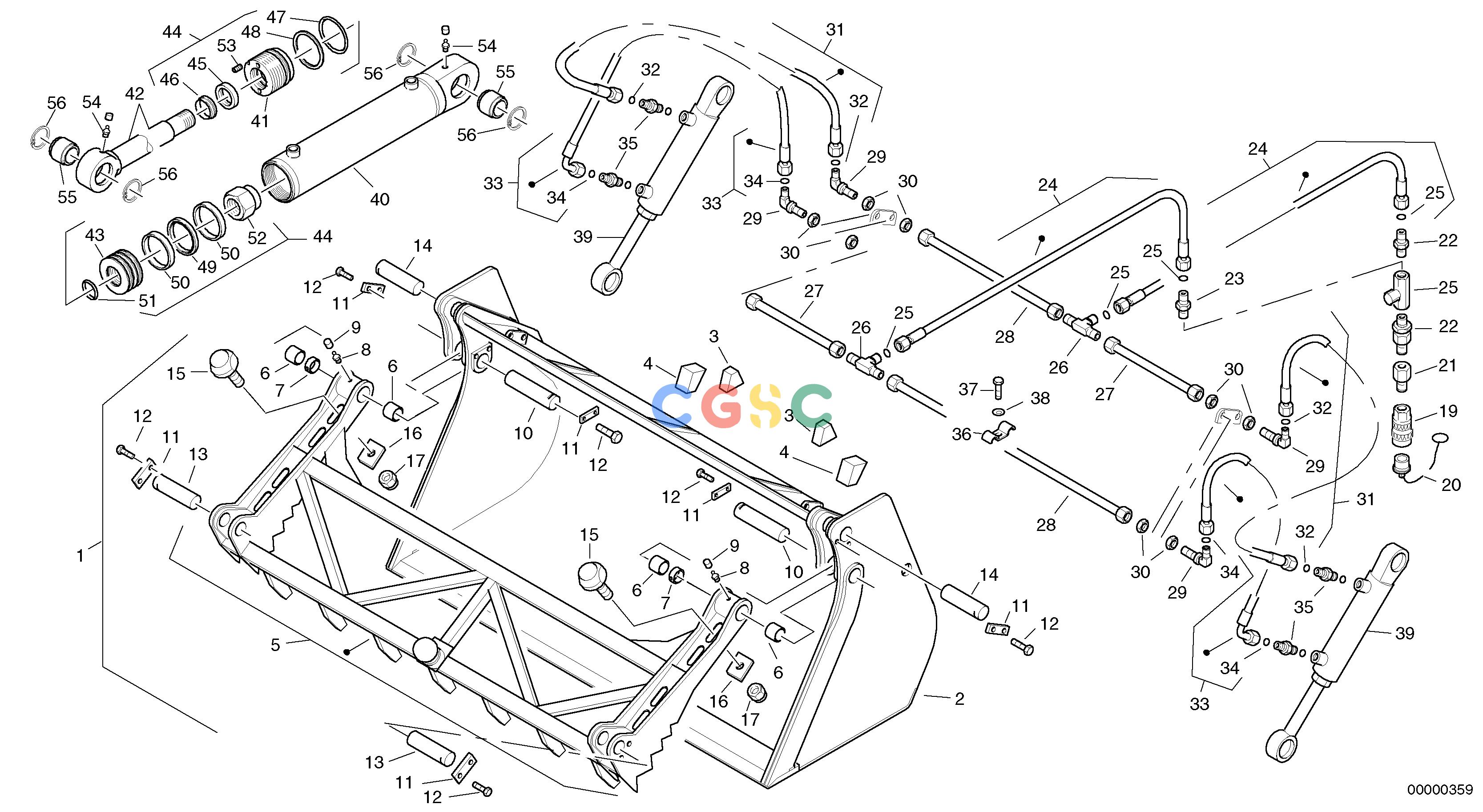

沃尔沃零件查询L40 Grab bucket - TpvTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2878550
|
[1] |
Bucket
|
2250 mm
|
| 8. |
VOE14023568
|
[2] |
Lubricating nipple
|
AM10x1
|
| 9. |
ZM4384287
|
[2] |
Plug
|
|
| 10. |
ZM2095030
|
[2] |
Bolt
|
|
| 11. |
ZM1022370
|
[6] |
Locking plate
|
|
| 12. |
VOE983244
|
[12] |
Hexagon screw
|
M8x30
|
| 13. |
VOE11306391
|
[2] |
Bolt
|
|
| 14. |
VOE11306396
|
[2] |
Bolt
|
|
| 15. |
ZM2814320
|
[2] |
Bucket stop
|
|
| 16. |
ZM2814321
|
[4] |
Base
|
|
| 17. |
ZM7098397
|
[2] |
Nut
|
M16
|
| 1. |
ZM2878551
|
[1] |
Bucket
|
2250 mm
|
| 18. |
ZM2812923
|
[2] |
Valve
|
|
| 19. |
VOE11043021
|
[2] |
Sleeve
|
|
| 20. |
ZM2814836
|
[2] |
Dust cover
|
|
| 21. |
VOE11305310
|
[2] |
Fitting
|
|
| 22. |
VOE11305198
|
[2] |
Fitting
|
|
| 23. |
ZM4339658
|
[4] |
Screw-in socket
|
L15G1/2 B
|
| 24. |
ZM2800040
|
[2] |
Hose
|
|
| 25. |
ZM2259050
|
[4] |
O-ring
|
13x2
|
| 26. |
VOE957125
|
[2] |
T-nipple
|
L15
|
| 27. |
ZM2809110
|
[2] |
Pipe
|
|
| 2. |
ZM2815368
|
[1] |
Bucket, 1600 l
|
|
| 28. |
ZM2814310
|
[2] |
Tube
|
|
| 29. |
VOE957097
|
[4] |
Elbow nipple
|
L15
|
| 30. |
VOE957020
|
[8] |
Hexagon nut
|
M22x1,5
|
| 31. |
VOE11305089
|
[2] |
Hose assembly
|
|
| 32. |
ZM2259050
|
[4] |
O-ring
|
13x2
|
| 33. |
ZM2812552
|
[2] |
Hose
|
|
| 34. |
ZM2259050
|
[4] |
O-ring
|
13x2
|
| 35. |
VOE11305361
|
[4] |
Nipple
|
|
| 36. |
VOE11306390
|
[1] |
Tube clamp
|
|
| 37. |
VOE983244
|
[1] |
Hexagon screw
|
M8x30
|
| 2. |
ZM2815370
|
[1] |
Bucket, 1400 l
|
|
| 38. |
ZM7098750
|
[1] |
Washer
|
B 8,4
|
| 39. |
ZM2814106
|
[2] |
Hydraulic cylinder
|
|
| 40. |
ZM2907614
|
[1] |
Cylinder pipe
|
|
| 41. |
ZM2901116
|
[1] |
Guide bush
|
|
| 42. |
ZM2907613
|
[1] |
Piston rod
|
|
| 43. |
ZM2905138
|
[1] |
Piston
|
|
| 44. |
ZM2907611
|
[1] |
Repair set, cpl.
|
|
| 45. |
ZM2901118
|
[1] |
Seal
|
|
| 46. |
ZM2901119
|
[1] |
Scraper
|
|
| 47. |
ZM2907612
|
[1] |
O-ring
|
|
| 3. |
ZM2804495
|
[2] |
Stop
|
|
| 48. |
ZM2901117
|
[1] |
Ring
|
|
| 49. |
ZM2901115
|
[1] |
Seal
|
|
| 50. |
ZM2901114
|
[2] |
Guide band
|
|
| 51. |
ZM3402854
|
[1] |
O-ring
|
|
| 52. |
ZM2286101
|
[1] |
Nut
|
M27x2
|
| 53. |
ZM7096424
|
[1] |
Screw
|
|
| 54. |
VOE983718
|
[1] |
Lubricating nipple
|
AM8x1
|
| 55. |
VOE6645259
|
[1] |
Link bearing
|
|
| 56. |
VOE11305258
|
[1] |
Retaining ring
|
|
| 4. |
ZM2803782
|
[2] |
Reinforcing plate
|
|
| 5. |
ZM2810572
|
[1] |
Grab Fork
|
|
| 6. |
VOE11305362
|
[4] |
Bushing
|
|
| 7. |
VOE11306062
|
[2] |
Spacer ring
|
|
