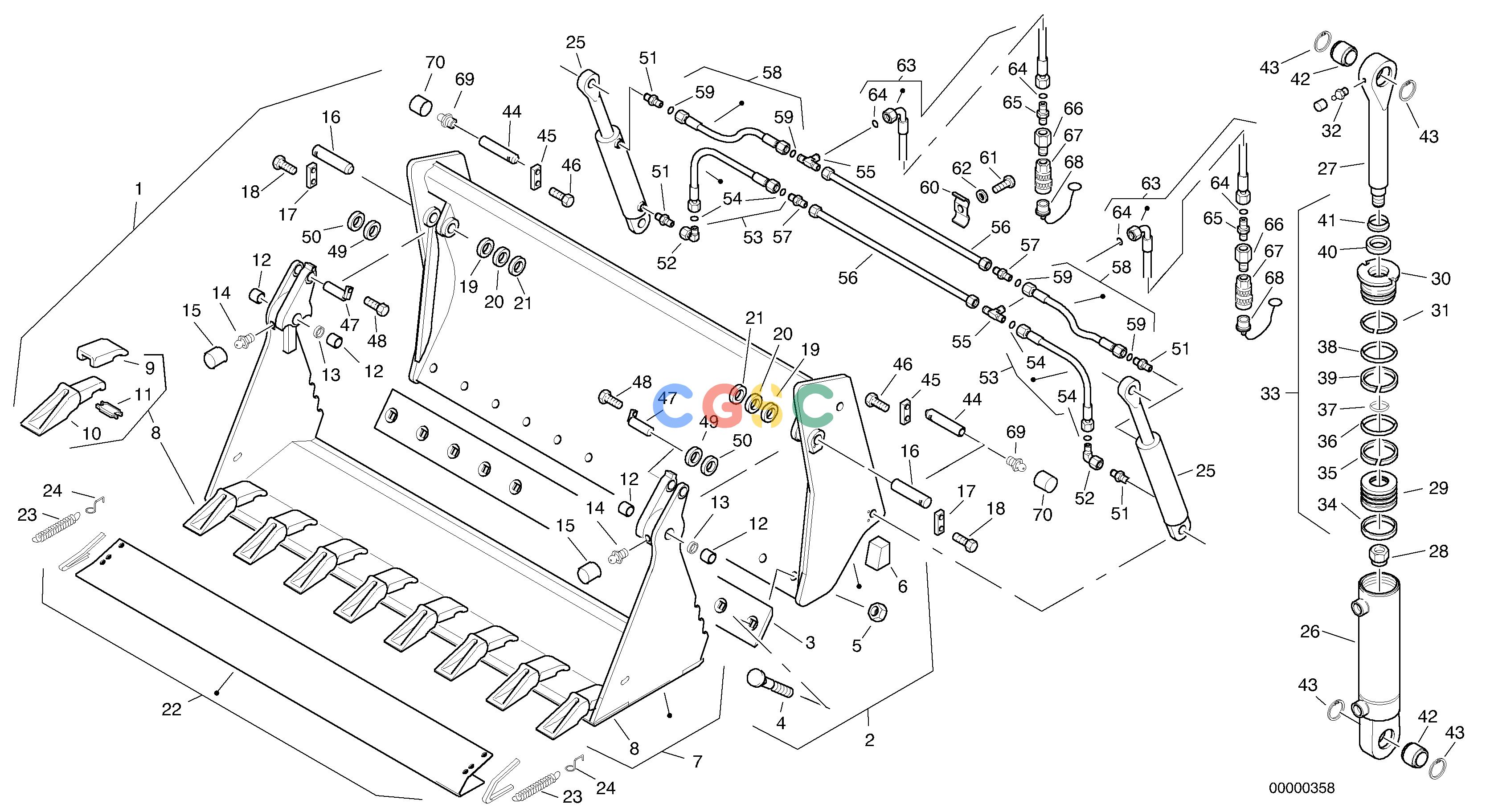

沃尔沃零件查询L40 Combined bucket - TpvTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2878554
|
[1] |
Bucket
|
2250 mm
|
| 8. |
ZM4410667
|
[1] |
Wearing plate
|
|
| 9. |
ZM2078110
|
[8] |
Sleeve
|
|
| 10. |
ZM2078100
|
[8] |
Tooth
|
|
| 11. |
ZM2078120
|
[8] |
Lock pin
|
|
| 12. |
VOE11305101
|
[4] |
Bushing
|
FG40/50x32
|
| 13. |
VOE11305100
|
[2] |
Spacer washer
|
|
| 14. |
VOE983718
|
[2] |
Lubricating nipple
|
AM8x1
|
| 15. |
ZM4384287
|
[2] |
Plug
|
|
| 16. |
ZM2810019
|
[2] |
Bolt
|
|
| 17. |
ZM1022370
|
[2] |
Locking plate
|
|
| 1. |
ZM2878555
|
[1] |
Bucket
|
2250 mm
|
| 18. |
VOE983243
|
[4] |
Hexagon screw
|
M8x25
|
| 19. |
VOE11305005
|
[REQ] |
Washer
|
0,5 mm
|
| 20. |
VOE11305006
|
[REQ] |
Washer
|
1,0 mm
|
| 21. |
VOE11305007
|
[REQ] |
Washer
|
2,5 mm
|
| 22. |
ZM2811020
|
[1] |
Guard
|
|
| 23. |
VOE11315002
|
[2] |
Tension spring
|
|
| 24. |
ZM2801364
|
[2] |
Eye
|
|
| 25. |
VOE11305084
|
[2] |
Hydraulic cylinder
|
|
| 26. |
ZM2290842
|
[1] |
Cylinder pipe
|
|
| 27. |
ZM2290846
|
[1] |
Rod
|
|
| 2. |
ZM2814272
|
[1] |
Bucket breast
|
|
| 28. |
ZM2290856
|
[1] |
Nut
|
|
| 29. |
ZM2290851
|
[1] |
Piston
|
|
| 30. |
ZM2290847
|
[1] |
Bushing
|
|
| 31. |
ZM2290850
|
[1] |
Fusible Link
|
|
| 32. |
ZM7092353
|
[1] |
Grease nipple
|
BM8x1
|
| 33. |
VOE17206689
|
[1] |
Sealing kit
|
|
| 34. |
ZM2290855
|
[1] |
Ring
|
|
| 35. |
ZM2290854
|
[1] |
Seal
|
|
| 36. |
ZM2290853
|
[1] |
O-ring
|
|
| 37. |
ZM2290852
|
[1] |
O-ring
|
|
| 3. |
VOE11307646
|
[1] |
Cutting edge/teeth
|
|
| 38. |
ZM2079481
|
[1] |
O-ring
|
|
| 39. |
ZM2223790
|
[1] |
Ring
|
|
| 40. |
ZM2290849
|
[1] |
Grooved ring
|
|
| 41. |
ZM2290848
|
[1] |
Scraper
|
|
| 42. |
VOE11305086
|
[2] |
Link bearing
|
|
| 43. |
VOE914526
|
[4] |
Retaining ring
|
47x1,75
|
| 44. |
ZM2810020
|
[2] |
Bolt
|
|
| 45. |
ZM2810797
|
[2] |
Locking plate
|
|
| 46. |
ZM7095370
|
[4] |
Screw
|
M8x16
|
| 47. |
VOE11305081
|
[2] |
Bolt
|
|
| 4. |
VOE11305094
|
[13] |
Screw
|
|
| 48. |
ZM7095370
|
[2] |
Screw
|
M8x16
|
| 49. |
VOE11305105
|
[2] |
Washer
|
30
|
| 50. |
VOE960150
|
[2] |
Plain washer
|
B31
|
| 51. |
ZM7091971
|
[4] |
Nipple
|
L15
|
| 52. |
ZM8092741
|
[2] |
Angular fitting
|
L15
|
| 53. |
VOE11305118
|
[2] |
Hose assembly
|
|
| 54. |
ZM2259050
|
[4] |
O-ring
|
13x2
|
| 55. |
VOE957125
|
[2] |
T-nipple
|
L15
|
| 56. |
ZM2802728
|
[2] |
Tube
|
|
| 57. |
VOE957057
|
[2] |
Nipple
|
L15
|
| 5. |
VOE11305093
|
[13] |
Hexagon nut
|
|
| 58. |
ZM2811277
|
[2] |
Hose
|
|
| 59. |
ZM2259050
|
[4] |
O-ring
|
13x2
|
| 60. |
VOE11305087
|
[2] |
Tube fitting
|
|
| 61. |
VOE983242
|
[2] |
Hexagon screw
|
M8x20
|
| 62. |
ZM7098750
|
[2] |
Washer
|
B 8,4
|
| 63. |
ZM2800528
|
[2] |
Hose
|
|
| 64. |
ZM2259050
|
[4] |
O-ring
|
13x2
|
| 65. |
ZM4339658
|
[2] |
Screw-in socket
|
L15G1/2 B
|
| 66. |
VOE11305310
|
[2] |
Fitting
|
|
| 67. |
VOE11043021
|
[2] |
Sleeve
|
|
| 6. |
ZM2805217
|
[2] |
Stop
|
|
| 68. |
ZM2814836
|
[2] |
Dust cover
|
|
| 69. |
VOE983718
|
[2] |
Lubricating nipple
|
AM8x1
|
| 70. |
ZM4384287
|
[2] |
Plug
|
|
| 7. |
ZM2812980
|
[1] |
Bucket cover
|
1100 l
|
| 7. |
ZM2811350
|
[1] |
Bucket cover
|
1200 l
|
