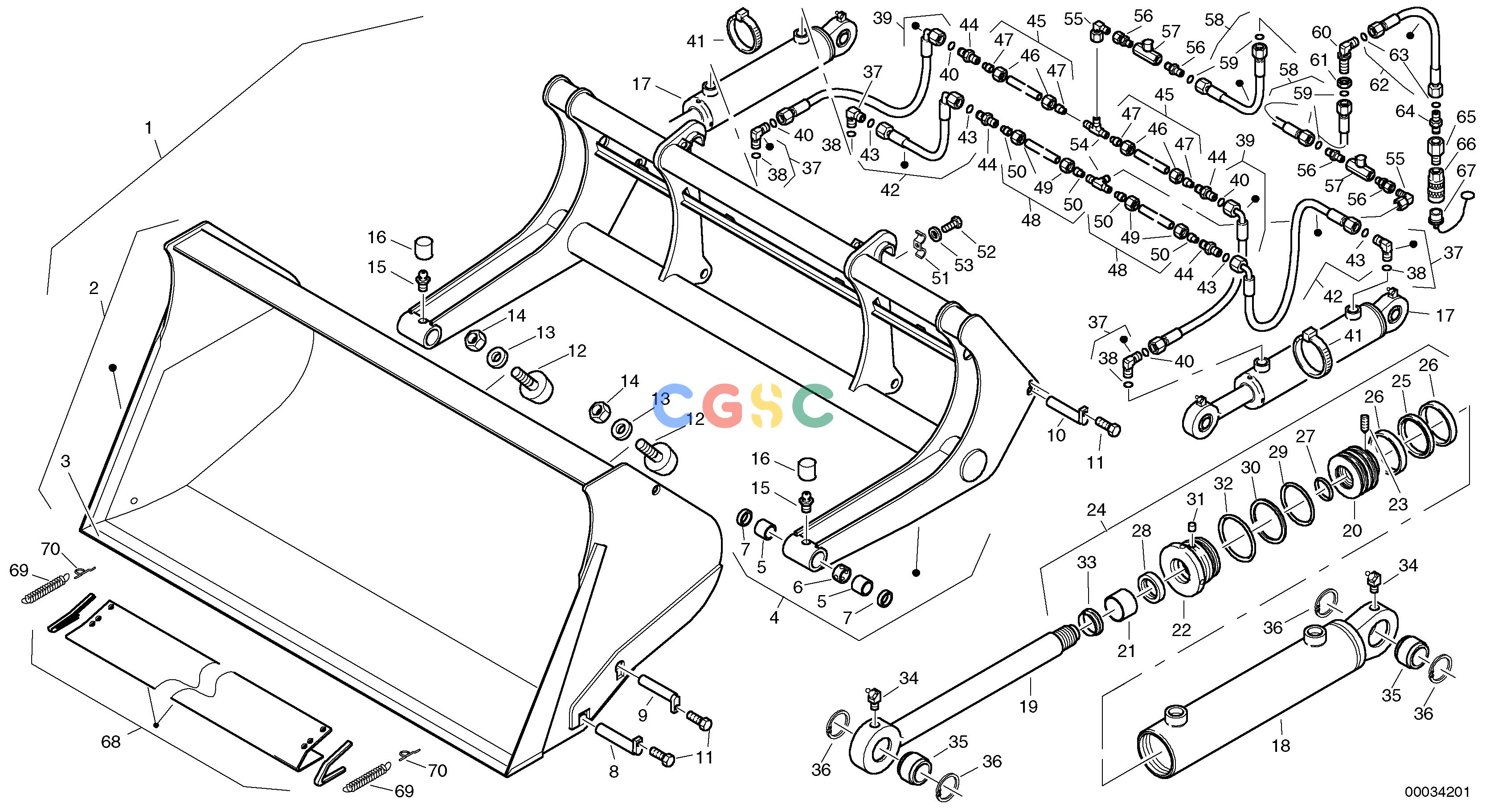

沃尔沃零件查询L40 Tipping bucket - TpvTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online

广数供应链运营团队, 14 02月, 2025,浏览:

Pos. Part No Qty Parts name Comments
1.   ZM2878547   [1]   High tipping bucket   2250 mm
4.   ZM2815395   [1]   Support, 3000 l
5.   VOE11305617   [4]   Bushing   FG 50/60x40
6.   ZM2808533   [2]   Spacer pipe
7.   VOE11305616   [4]   Scraper ring
8.   ZM2814075   [2]   Bolt
9.   ZM2812596   [2]   Bolt
10.   VOE11305354   [2]   Bolt
11.   ZM4327161   [6]   Screw   M12x25
12.   ZM2137380   [2]   Stop buffer
13.   VOE60110353   [2]   Washer   B13
1.   ZM2878548   [1]   High tipping bucket   2250 mm
14.   ZM7098030   [2]   Nut   M12
15.   VOE983718   [2]   Lubricating nipple   AM8x1
16.   ZM4384287   [2]   Plug
17.   ZM2804265   [2]   Cylinder
18.   ZM2903271   [1]   Cylinder tube
19.   ZM2903272   [1]   Piston rod
20.   ZM2903273   [1]   Piston
21.   VOE15190540   [1]   Piston rod seal
22.   ZM2903274   [1]   Bush
23.   ZM5225285   [1]   Screwed pin
1.   ZM2878855   [1]   Bucket, cpl. 3000 l   2400 mm
24.   ZM2903276   [1]   Gasket kit
25.   ZM2903277   [1]   Seal
26.   ZM2903278   [2]   Ring
27.   ZM2903279   [1]   O-ring
28.   ZM2903280   [1]   Seal
29.   ZM2284072   [1]   O-ring
30.   ZM2284071   [1]   Ring
31.   ZM2285799   [1]   Plug
32.   ZM2903281   [1]   O-ring
33.   ZM2903282   [1]   Ring
2.   ZM2814292   [1]   Bucket   2250 mm, 4.494901
34.   ZM7092353   [2]   Grease nipple   BM8x1
35.   VOE6645259   [2]   Link bearing
36.   VOE11305258   [4]   Retaining ring
37.   VOE11305199   [4]   Fitting
38.   ZM1027595   [1]   O-ring   15,3x24
39.   VOE11305752   [2]   Hose assembly   2200 mm
39.   VOE11305401   [2]   Hose assembly   2000 mm
40.   ZM2259050   [2]   O-ring   13x2
41.   ZM2809866   [2]   Cable tie
42.   VOE11305637   [2]   Hose assembly   2100 mm
2.   ZM2814082   [1]   Bucket   2250 mm, 4.496001
43.   ZM2259050   [2]   O-ring   13x2
44.   VOE957057   [4]   Nipple   L15
45.   ZM2809013   [2]   Pipe   1800 mm
45.   ZM2812598   [2]   Pipe, cpl.
46.   VOE956985   [2]   Fitting nut   AL15
47.   VOE956971   [2]   Ferrule   L15
48.   ZM2808478   [2]   Pipe, cpl.
48.   ZM2808487   [2]   Pipe, cpl.
49.   VOE956985   [2]   Fitting nut   AL15
50.   VOE956971   [2]   Ferrule   L15
2.   ZM2815372   [1]   Bucket   2400 mm, 4.496201
51.   VOE11305087   [4]   Tube fitting
52.   VOE983244   [4]   Hexagon screw   M8x30
53.   ZM7098750   [4]   Washer   B 8,4
54.   VOE945546   [2]   T-nipple   L15
55.   ZM8092741   [2]   Angular fitting   L15
56.   ZM4339658   [4]   Screw-in socket   L15G1/2 B
57.   ZM2812923   [2]   Valve
58.   ZM2811276   [2]   Hose
59.   ZM2259050   [2]   O-ring   13x2
60.   VOE957097   [2]   Elbow nipple   L15
3.   VOE11305611   [1]   Cutting edge/teeth   2250 mm
61.   VOE957020   [2]   Hexagon nut   M22x1,5
62.   ZM2800040   [2]   Hose
63.   ZM2259050   [2]   O-ring   13x2
64.   ZM4339658   [2]   Screw-in socket   L15G1/2 B
65.   VOE11305310   [2]   Fitting
66.   VOE11043021   [2]   Sleeve
67.   ZM2814836   [2]   Dust cover
68.   ZM2814077   [1]   Guard   2250 mm
68.   ZM2815393   [1]   Guard   2400 mm
69.   VOE11315002   [2]   Tension spring
3.   ZM2811523   [1]   Cutting edge   2400 mm
70.   ZM2801364   [2]   Eye
4.   ZM2814276   [1]   Frame
