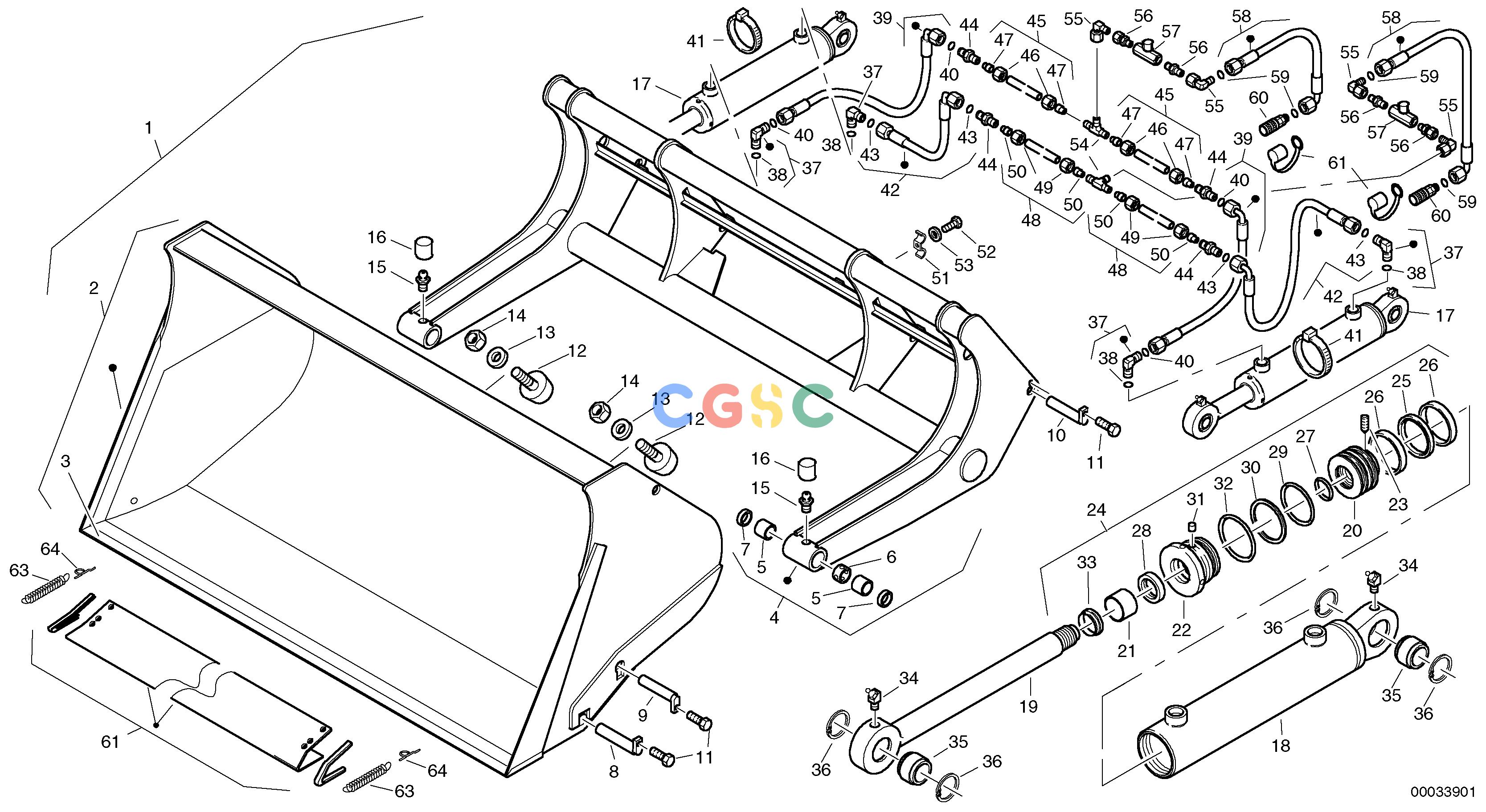

沃尔沃零件查询L40 Tipping bucket - TpzTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2878819
|
[1] |
Bucket, cpl. 1900 l
|
2100 mm
|
| 2. |
ZM2814082
|
[1] |
Bucket
|
2250 mm, 4.496001
|
| 2. |
ZM2815182
|
[1] |
Bucket, 2500 l
|
2400 mm, 4.496101
|
| 2. |
ZM2815372
|
[1] |
Bucket
|
2400 mm, 4.496201
|
| 3. |
ZM2815163
|
[1] |
Wearing plate
|
2100 mm
|
| 3. |
VOE11305611
|
[1] |
Cutting edge/teeth
|
2250 mm
|
| 3. |
ZM2811523
|
[1] |
Cutting edge
|
2400 mm
|
| 4. |
ZM2815240
|
[1] |
Support, 1300 l
|
|
| 4. |
ZM2815165
|
[1] |
Support, 1900 l
|
|
| 4. |
ZM2814059
|
[1] |
Support
|
|
| 4. |
ZM2815381
|
[1] |
Support, 2500l/3000 l
|
|
| 1. |
ZM2878847
|
[1] |
Bucket, cpl. - 1300 l
|
2250 mm
|
| 5. |
VOE11305617
|
[4] |
Bushing
|
FG 50/60x40
|
| 6. |
ZM2808533
|
[2] |
Spacer pipe
|
|
| 7. |
VOE11305616
|
[4] |
Scraper ring
|
|
| 8. |
ZM2814075
|
[2] |
Bolt
|
|
| 9. |
ZM2812596
|
[2] |
Bolt
|
|
| 10. |
VOE11305354
|
[2] |
Bolt
|
|
| 11. |
ZM4327161
|
[6] |
Screw
|
M12x25
|
| 12. |
ZM2137380
|
[2] |
Stop buffer
|
|
| 13. |
VOE60110353
|
[2] |
Washer
|
B13
|
| 14. |
ZM7098030
|
[2] |
Nut
|
M12
|
| 1. |
ZM2878529
|
[1] |
Bucket, cpl. 2000 l
|
2250 mm
|
| 15. |
VOE983718
|
[2] |
Lubricating nipple
|
AM8x1
|
| 16. |
ZM4384287
|
[2] |
Plug
|
|
| 17. |
ZM2804265
|
[2] |
Cylinder
|
|
| 18. |
ZM2903271
|
[1] |
Cylinder tube
|
|
| 19. |
ZM2903272
|
[1] |
Piston rod
|
|
| 20. |
ZM2903273
|
[1] |
Piston
|
|
| 21. |
VOE15190540
|
[1] |
Piston rod seal
|
|
| 22. |
ZM2903274
|
[1] |
Bush
|
|
| 23. |
ZM5225285
|
[1] |
Screwed pin
|
|
| 24. |
ZM2903276
|
[1] |
Gasket kit
|
|
| 1. |
ZM2878530
|
[1] |
High tipping bucket
|
2250 mm
|
| 25. |
ZM2903277
|
[1] |
Seal
|
|
| 26. |
ZM2903278
|
[2] |
Ring
|
|
| 27. |
ZM2903279
|
[1] |
O-ring
|
|
| 28. |
ZM2903280
|
[1] |
Seal
|
|
| 29. |
ZM2284072
|
[1] |
O-ring
|
|
| 30. |
ZM2284071
|
[1] |
Ring
|
|
| 31. |
ZM2285799
|
[1] |
Plug
|
|
| 32. |
ZM2903281
|
[1] |
O-ring
|
|
| 33. |
ZM2903282
|
[1] |
Ring
|
|
| 34. |
ZM7092353
|
[2] |
Grease nipple
|
BM8x1
|
| 1. |
ZM2878730
|
[1] |
Bucket, cpl. 2500 l
|
2400 mm
|
| 35. |
VOE6645259
|
[2] |
Link bearing
|
|
| 36. |
VOE11305258
|
[4] |
Retaining ring
|
|
| 37. |
VOE11305199
|
[4] |
Fitting
|
|
| 38. |
ZM1027595
|
[1] |
O-ring
|
15,3x24
|
| 39. |
VOE11305752
|
[2] |
Hose assembly
|
2200 mm
|
| 39. |
VOE11305401
|
[2] |
Hose assembly
|
2000 mm
|
| 40. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 41. |
ZM2809866
|
[2] |
Cable tie
|
|
| 42. |
VOE11305637
|
[2] |
Hose assembly
|
2100 mm
|
| 43. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 1. |
ZM2878731
|
[1] |
Bucket, cpl. 3000 l
|
2400 mm
|
| 44. |
VOE957057
|
[4] |
Nipple
|
L15
|
| 45. |
ZM2809013
|
[2] |
Pipe
|
1800 mm
|
| 45. |
ZM2812598
|
[2] |
Pipe, cpl.
|
|
| 45. |
ZM2802728
|
[2] |
Tube
|
|
| 46. |
VOE956985
|
[2] |
Fitting nut
|
AL15
|
| 47. |
VOE956971
|
[2] |
Ferrule
|
L15
|
| 48. |
ZM2808478
|
[2] |
Pipe, cpl.
|
|
| 48. |
ZM2808487
|
[2] |
Pipe, cpl.
|
|
| 48. |
ZM2815170
|
[2] |
Pipe, cpl.
|
|
| 49. |
VOE956985
|
[2] |
Fitting nut
|
AL15
|
| 2. |
ZM2815160
|
[1] |
Bucket, 1900 l
|
2100 mm, 2.686101
|
| 50. |
VOE956971
|
[2] |
Ferrule
|
L15
|
| 51. |
VOE11305087
|
[4] |
Tube fitting
|
|
| 52. |
VOE983244
|
[4] |
Hexagon screw
|
M8x30
|
| 53. |
ZM7098750
|
[4] |
Washer
|
B 8,4
|
| 54. |
VOE945546
|
[2] |
T-nipple
|
L15
|
| 55. |
ZM8092741
|
[4] |
Angular fitting
|
L15
|
| 56. |
ZM4339658
|
[4] |
Screw-in socket
|
L15G1/2 B
|
| 57. |
ZM2812923
|
[2] |
Valve
|
|
| 58. |
VOE11305486
|
[2] |
Hose assembly
|
|
| 59. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 2. |
ZM2815719
|
[1] |
Bucket, 1300 l
|
2250 mm, 2.689501
|
| 60. |
ZM2800538
|
[2] |
Quick-coupling
|
|
| 61. |
VOE11305090
|
[2] |
Dust cover
|
|
| 62. |
ZM2815349
|
[1] |
Guard
|
2100 mm
|
| 62. |
ZM2814077
|
[1] |
Guard
|
2250 mm
|
| 62. |
ZM2815393
|
[1] |
Guard
|
2400 mm
|
| 63. |
VOE11315002
|
[2] |
Tension spring
|
|
| 64. |
ZM2801364
|
[2] |
Eye
|
|
| 2. |
ZM2814292
|
[1] |
Bucket
|
2250 mm, 4.494901
|
