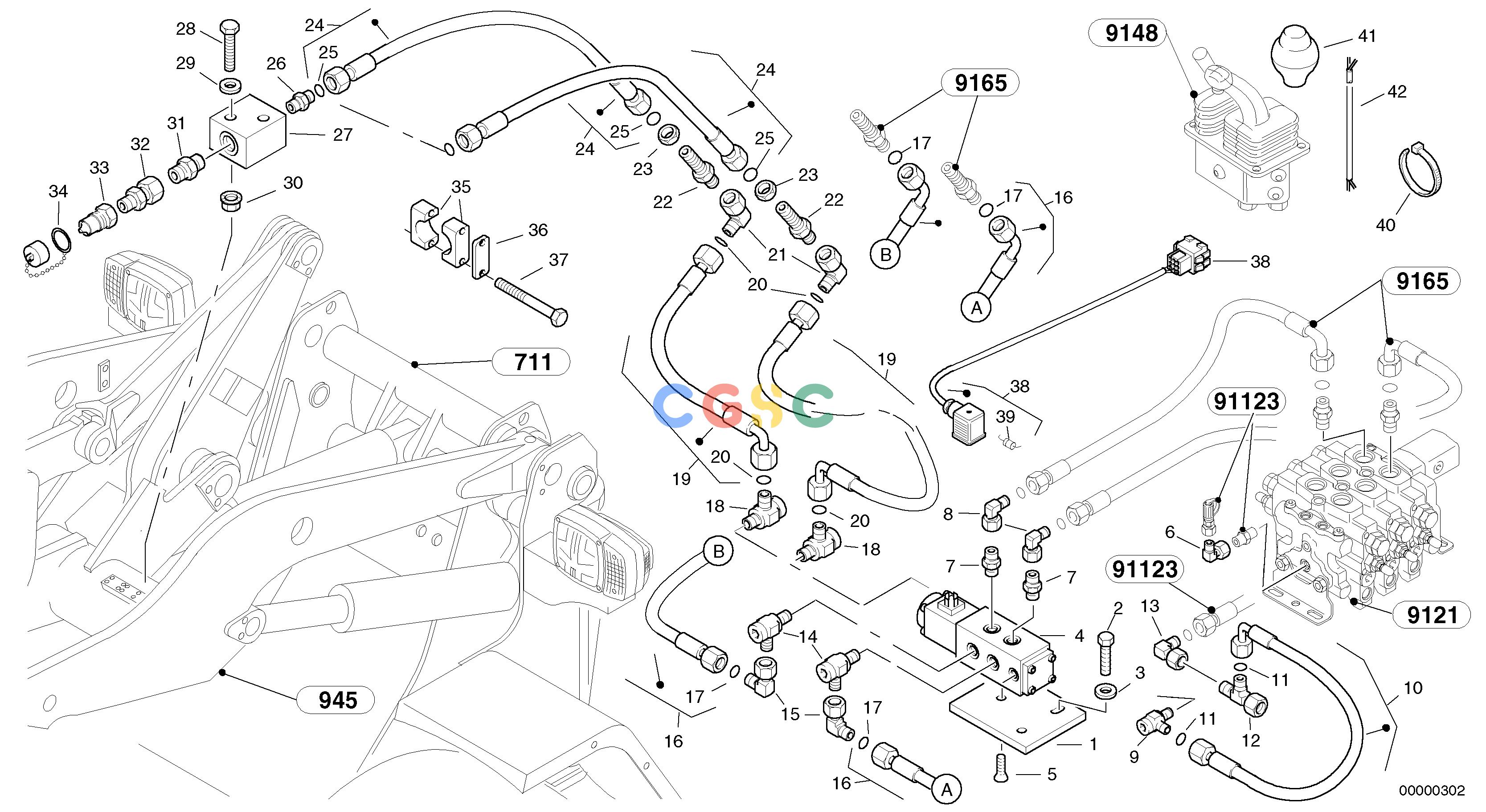

沃尔沃零件查询L40 Hydraulic function - Nr. 4TYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813667
|
[1] |
Plate
|
|
| 10. |
VOE11305386
|
[1] |
Hose assembly
|
|
| 11. |
ZM1089232
|
[2] |
O-ring
|
|
| 12. |
VOE944525
|
[1] |
T-nipple
|
L10
|
| 13. |
ZM7092347
|
[1] |
Angular fitting
|
L10
|
| 14. |
VOE11306366
|
[2] |
Fitting
|
DSVW18LR
|
| 15. |
VOE946390
|
[2] |
Elbow nipple
|
L18
|
| 16. |
ZM2811760
|
[2] |
Hose
|
|
| 17. |
VOE11706795
|
[4] |
O-ring
|
15x2
|
| 18. |
VOE11306366
|
[2] |
Fitting
|
DSVW18LR
|
| 19. |
ZM2803360
|
[2] |
Hose
|
|
| 2. |
VOE983244
|
[2] |
Hexagon screw
|
M8x30
|
| 20. |
VOE11706795
|
[4] |
O-ring
|
15x2
|
| 21. |
VOE946390
|
[2] |
Elbow nipple
|
L18
|
| 22. |
VOE11306368
|
[2] |
Nipple
|
L18
|
| 23. |
VOE957021
|
[2] |
Hexagon nut
|
M26x1,5
|
| 24. |
ZM2801742
|
[2] |
Hose
|
|
| 25. |
VOE11706795
|
[4] |
O-ring
|
15x2
|
| 26. |
VOE11306367
|
[2] |
Fitting
|
L18G1/2 B
|
| 27. |
ZM2806600
|
[2] |
Distributor
|
|
| 28. |
VOE955280
|
[4] |
Hexagon screw
|
M6x60
|
| 29. |
VOE955892
|
[4] |
Plain washer
|
B6,4
|
| 3. |
ZM7098750
|
[2] |
Washer
|
B 8,4
|
| 30. |
VOE977222
|
[4] |
Rivet nut
|
M6x16
|
| 31. |
VOE11306935
|
[2] |
Nipple
|
S20G3/4 B
|
| 32. |
VOE11305557
|
[2] |
Fitting
|
|
| 33. |
VOE11043022
|
[2] |
Nipple
|
|
| 34. |
VOE11147586
|
[2] |
Dust cover
|
|
| 35. |
ZM2801725
|
[4] |
Clamp
|
|
| 36. |
ZM2801723
|
[4] |
Cover
|
|
| 37. |
VOE955284
|
[8] |
Hexagon screw
|
M6x80
|
| 38. |
ZM2813669
|
[1] |
Electric wire
|
|
| 39. |
ZM4374365
|
[1] |
Diode
|
|
| 4. |
ZM2812919
|
[1] |
Change-over valve
|
|
| 40. |
ZM4375500
|
[15] |
Cable clamp
|
|
| 41. |
VOE11306365
|
[1] |
Operating button
|
|
| 5. |
ZM7096462
|
[1] |
Screw
|
M8x16
|
| 6. |
ZM7092347
|
[1] |
Angular fitting
|
L10
|
| 7. |
VOE11306367
|
[2] |
Fitting
|
L18G1/2 B
|
| 8. |
VOE946390
|
[2] |
Elbow nipple
|
L18
|
| 9. |
VOE11305877
|
[1] |
Fitting
|
|
