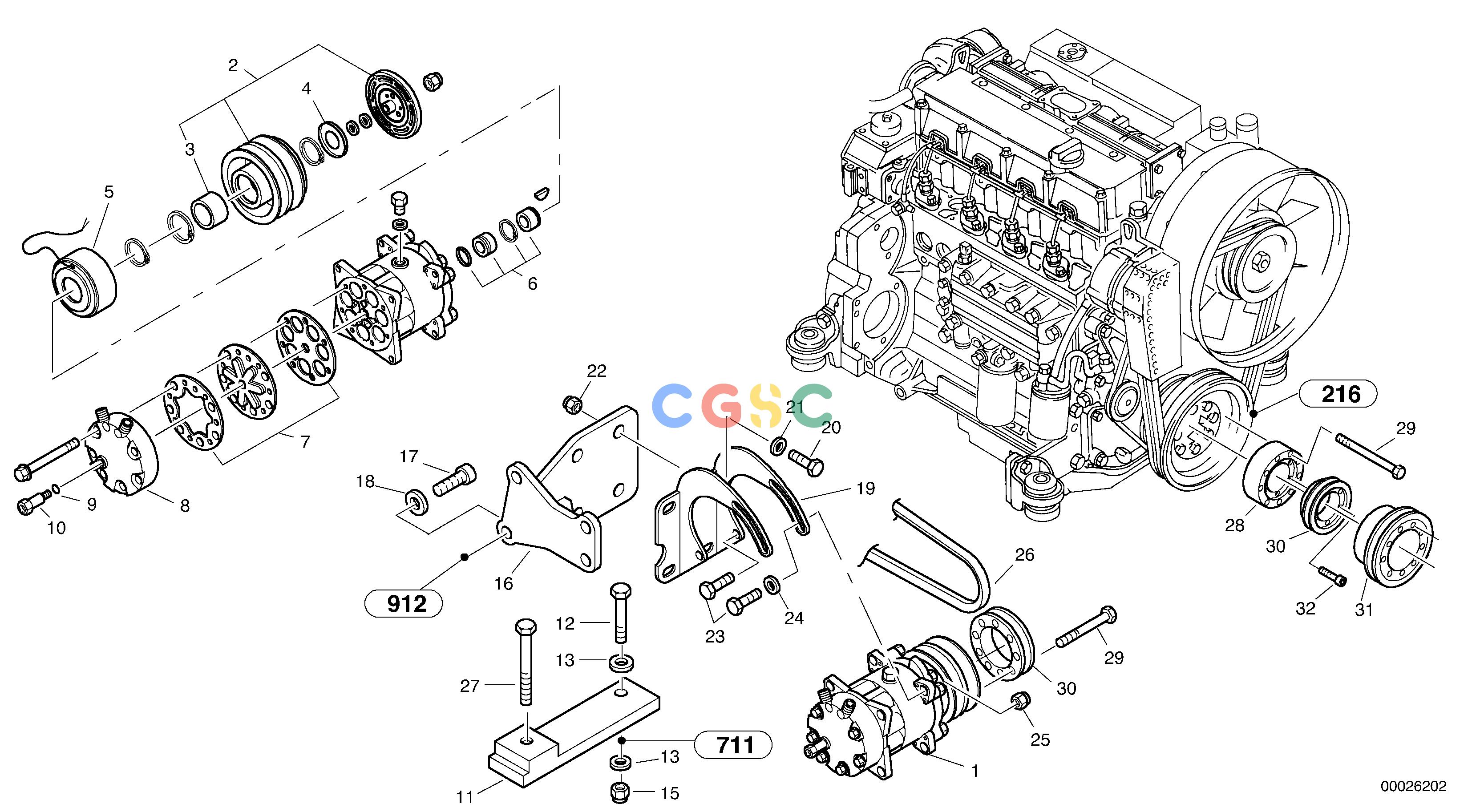

沃尔沃零件查询L40 CompressorTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11104512
|
[1] |
Compressor
|
|
| 10. |
ZM2904446
|
[1] |
Valve
|
|
| 11. |
VOE15620380
|
[1] |
Support plate
|
|
| 12. |
ZM2814181
|
[1] |
Hexagon screw
|
|
| 13. |
VOE11306650
|
[2] |
Washer
|
17
|
| 15. |
ZM7098399
|
[1] |
Nut
|
M14
|
| 16. |
ZM2815730
|
[1] |
Holder
|
|
| 17. |
ZM8096324
|
[2] |
Screw
|
M16x40
|
| 18. |
VOE13955900
|
[2] |
Washer
|
A17
|
| 19. |
ZM2815728
|
[1] |
Holder
|
|
| 20. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 2. |
ZM2904434
|
[1] |
V-belt pulley
|
|
| 21. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
| 22. |
VOE14370970
|
[4] |
Lock nut
|
M10
|
| 23. |
VOE11307042
|
[4] |
Hexagon screw
|
M10x35
|
| 24. |
VOE930842
|
[2] |
Plain washer
|
10,5
|
| 25. |
VOE14370970
|
[4] |
Lock nut
|
M10
|
| 26. |
ZM2810880
|
[1] |
V-belt
|
-1910156/-1920321
|
| 26. |
ZM2810881
|
[1] |
V-belt
|
1910157-/1920322-
|
| 27. |
ZM7096680
|
[1] |
Screw
|
M12x110
|
| 28. |
ZM2815603
|
[1] |
Ring
|
-1910156/-1920321
|
| 29. |
ZM7096010
|
[9] |
Screw
|
M10x140,
-1910156/-1920321
|
| 3. |
ZM2904440
|
[1] |
Bearing
|
|
| 29. |
VOE11306532
|
[9] |
Hexagon screw
|
M10x170
1910157-/1920322-
|
| 30. |
ZM2815604
|
[1] |
V-belt Pulley
|
-1910156/-1920321
|
| 31. |
ZM2814399
|
[1] |
V-belt pulley
|
1910157-/1920322-
|
| 32. |
ZM7096584
|
[6] |
Screw
|
M8x35, -1910156/-1920321
|
| 4. |
ZM2904439
|
[1] |
Dust gasket
|
|
| 5. |
ZM2904441
|
[1] |
Magnet, 24 V
|
|
| 6. |
ZM2904442
|
[1] |
Gasket
|
|
| 7. |
ZM2904443
|
[1] |
Gasket set
|
|
| 8. |
ZM2904444
|
[1] |
Cylinder head
|
|
| 9. |
ZM2904445
|
[1] |
O-ring
|
|
![]()
