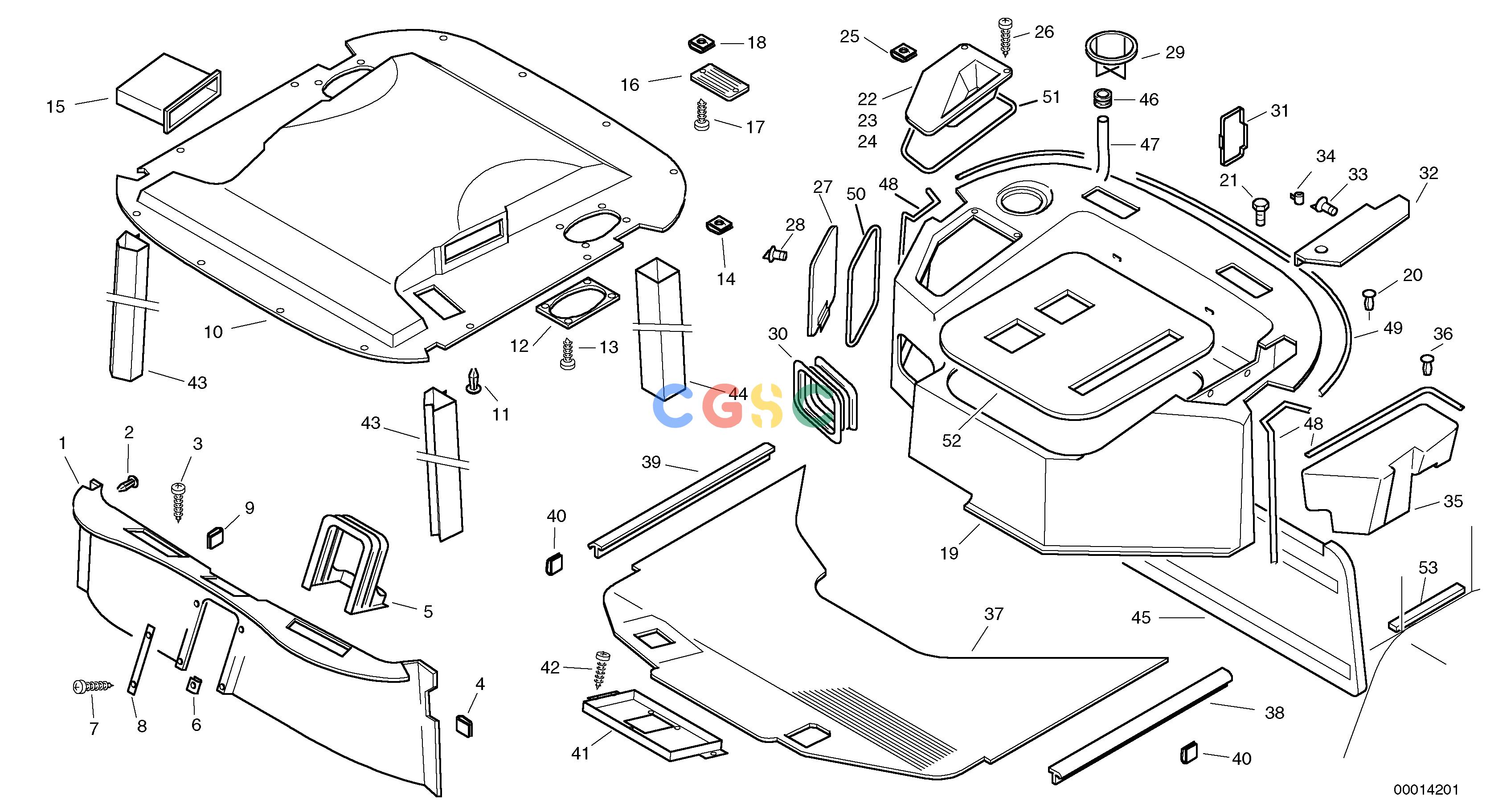

沃尔沃零件查询L40 Isolation - CabineTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2907120
|
[1] |
Trim plate
|
|
| 10. |
ZM2907125
|
[1] |
Roof casing
|
|
| 11. |
ZM2907126
|
[10] |
Plug
|
|
| 12. |
ZM2907127
|
[2] |
Protecting plate
|
|
| 13. |
ZM2907095
|
[8] |
Screw
|
4,2x20
|
| 14. |
ZM2906639
|
[8] |
Nut
|
|
| 15. |
ZM2907129
|
[2] |
Box
|
|
| 16. |
ZM2907130
|
[1] |
Vent
|
|
| 17. |
ZM2907460
|
[2] |
Screw
|
2,9x16
|
| 18. |
ZM2907132
|
[2] |
Nut
|
|
| 19. |
ZM2907133
|
[1] |
Seat Cover
|
|
| 2. |
VOE2906710
|
[4] |
Rivet
|
|
| 20. |
ZM2907134
|
[4] |
Expansion Plug
|
|
| 21. |
VOE13955272
|
[2] |
Screw
|
M6x20
|
| 23. |
ZM2907472
|
[1] |
Storage Tray
|
|
| 24. |
ZM2907473
|
[1] |
Storage Tray
|
|
| 25. |
ZM2906639
|
[3] |
Nut
|
|
| 26. |
ZM2907095
|
[3] |
Screw
|
4,2x20
|
| 27. |
ZM2907136
|
[1] |
Maintenance flap
|
|
| 28. |
ZM2907137
|
[1] |
Plug
|
|
| 29. |
ZM2907138
|
[1] |
Cup Holder
|
|
| 3. |
ZM2907095
|
[3] |
Screw
|
4,2x20
|
| 30. |
ZM2907139
|
[1] |
Bellows
|
|
| 31. |
ZM2907140
|
[2] |
Wire retainer
|
|
| 32. |
ZM2907141
|
[1] |
Cover
|
|
| 33. |
ZM2907142
|
[2] |
Blind rivet
|
|
| 34. |
ZM2907143
|
[1] |
Lock
|
|
| 35. |
ZM2907144
|
[1] |
Bag Retainer
|
|
| 36. |
VOE2906710
|
[1] |
Rivet
|
|
| 37. |
ZM2907145
|
|
Floor mat
|
|
| 37. |
ZM2907563
|
[1] |
Floor mat
|
|
| 38. |
ZM2907146
|
[1] |
Molding, left
|
|
| 4. |
ZM2907121
|
[2] |
Double clamp
|
|
| 39. |
ZM2907147
|
[1] |
Molding, right
|
|
| 40. |
ZM2907148
|
[6] |
Clamp
|
|
| 41. |
ZM2907149
|
|
Pedal Arrange
|
|
| 41. |
ZM2907564
|
[1] |
Pedal Arrange
|
|
| 42. |
VOE983242
|
[3] |
Hexagon screw
|
M8x20
|
| 43. |
ZM2907152
|
[1] |
Cover
|
|
| 44. |
ZM2907153
|
[1] |
Cover
|
|
| 45. |
ZM2812116
|
[1] |
Damping material
|
|
| 46. |
ZM2907928
|
[3] |
Sleeve
|
|
| 47. |
ZM2907929
|
[1] |
Hose
|
1000
|
| 5. |
ZM2907122
|
[1] |
Rubber Bellows
|
|
| 48. |
ZM2907930
|
[3] |
Sealing bande
|
400
|
| 49. |
ZM2907931
|
[1] |
Sealing bande
|
1200
|
| 50. |
ZM2908991
|
[1] |
Sealing moulding
|
700
|
| 51. |
ZM2907933
|
[1] |
Moulding
|
600
|
| 52. |
ZM2907934
|
[1] |
Cover Plate
|
|
| 53. |
ZM2815735
|
[1] |
Damping material
|
|
| 6. |
ZM2907123
|
[4] |
Nut
|
|
| 7. |
VOE11370128
|
[4] |
Screw
|
4,2x16
|
| 8. |
ZM2907124
|
[2] |
Attaching plate
|
|
| 9. |
ZM2907121
|
[2] |
Double clamp
|
|
![]()
