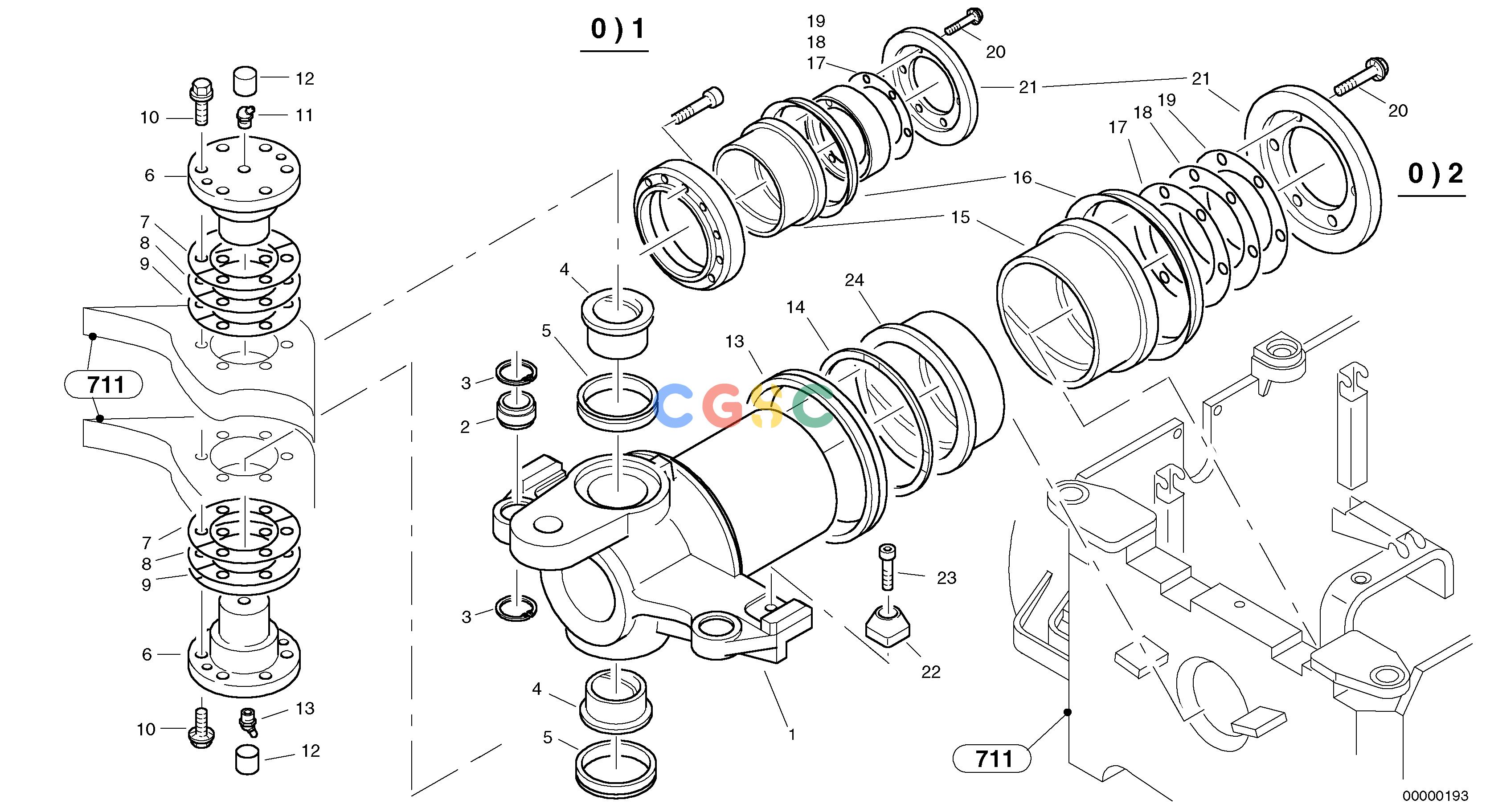

沃尔沃零件查询L40 Articulation pointTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2814426
|
[1] |
Pivot pin
|
|
| 10. |
VOE11306526
|
[12] |
Lock screw
|
M12x35
|
| 11. |
VOE11306484
|
[2] |
Lubricating nipple
|
CM10x1
|
| 12. |
ZM4384287
|
[1] |
Plug
|
|
| 13. |
VOE11103209
|
[1] |
Sealing ring
|
|
| 14. |
ZM2814356
|
[1] |
Washer
|
|
| 15. |
ZM2814375
|
[1] |
Grommet
|
-191.../-192... o)1
|
| 15. |
ZM2814373
|
[1] |
Bush
|
191...-/192...-, o)2
|
| 16. |
ZM2809131
|
[1] |
V-ring
|
|
| 17. |
VOE11306740
|
[REQ] |
Washer
|
0,3 mm
|
| 18. |
VOE11306741
|
[REQ] |
Washer
|
0,5 mm
|
| 2. |
VOE183433
|
[2] |
Spherical plain bearing
|
GE30
|
| 19. |
VOE11306742
|
[REQ] |
Washer
|
1,5 mm
|
| 20. |
ZM2814178
|
[6] |
Screw
|
M14x110
|
| 20. |
VOE16271754
|
[6] |
Lock Screw
|
M14x80
|
| 21. |
ZM2814352
|
[1] |
Cover
|
|
| 22. |
ZM2805284
|
[2] |
Buffer
|
|
| 23. |
ZM7096548
|
[2] |
Screw
|
M10x20
|
| 24. |
ZM2814374
|
[1] |
Bush
|
|
| 3. |
VOE914526
|
[4] |
Retaining ring
|
47x1,75
|
| 4. |
ZM2811211
|
[2] |
Collar bush
|
|
| 5. |
VOE13949268
|
[2] |
Sealing ring
|
|
| 6. |
VOE15234987
|
[2] |
Bearing Bolt
|
|
| 7. |
ZM2808719
|
[REQ] |
Washer
|
0,3 mm
|
| 8. |
ZM2808720
|
[REQ] |
Washer
|
0,5 mm
|
| 9. |
ZM2808721
|
[REQ] |
Washer
|
1,0 mm
|
![]()
