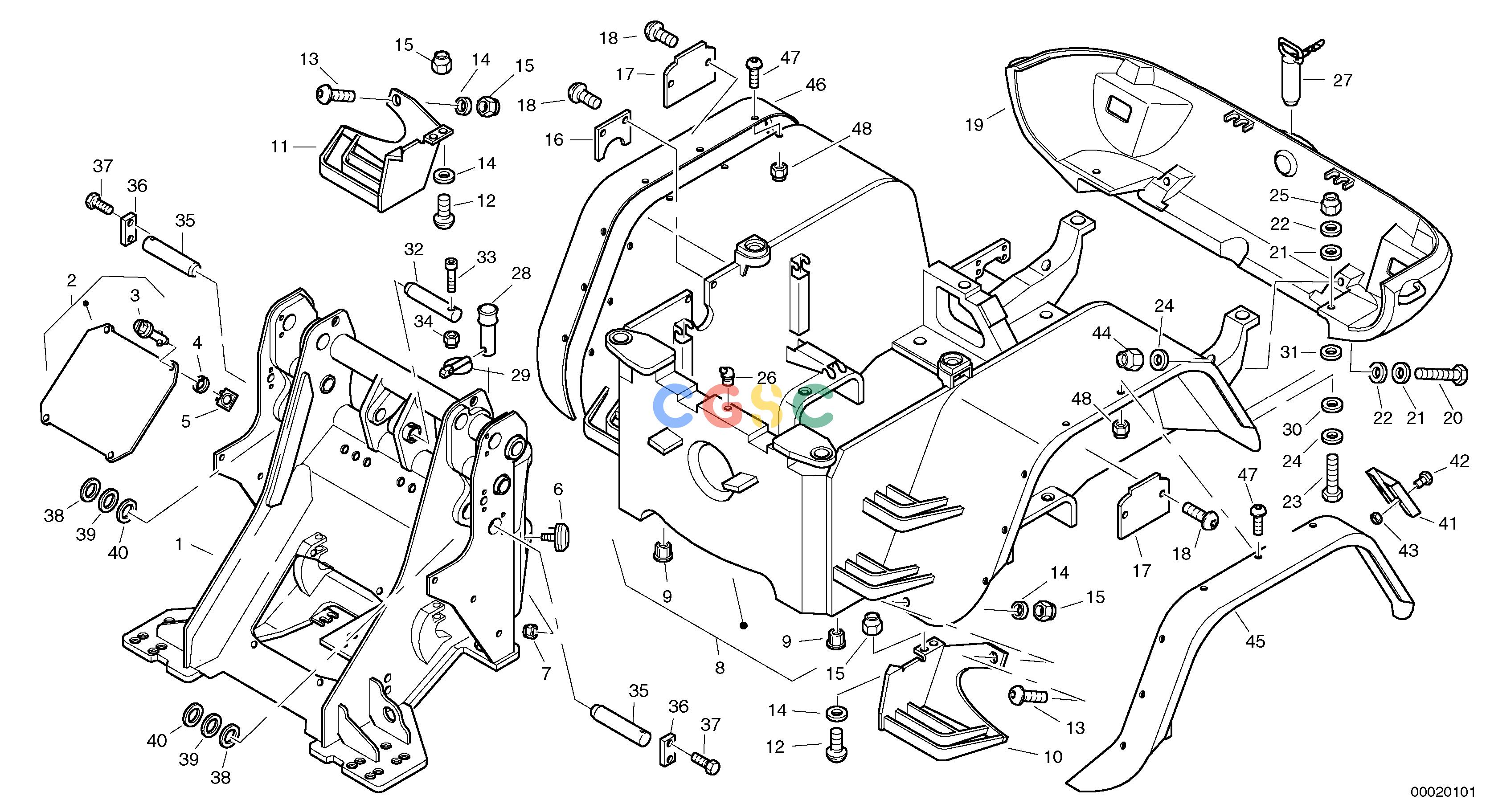

沃尔沃零件查询L40 FrameTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813224
|
[1] |
Front frame
|
|
| 2. |
VOE15213321
|
[1] |
Cover
|
|
| 3. |
ZM2806396
|
[4] |
Locking pin
|
|
| 4. |
ZM2806398
|
[4] |
Washer
|
|
| 5. |
ZM2806397
|
[4] |
Retaining cam
|
|
| 6. |
ZM2802876
|
[2] |
Stop dog
|
|
| 7. |
ZM2801368
|
[2] |
Nut
|
M16
|
| 8. |
ZM2814357
|
[1] |
Frame, rear part
|
-1910124/-1920244
|
| 8. |
ZM2815851
|
[1] |
Frame, rear part
|
1910125-/1920245-
|
| 9. |
ZM2806267
|
[10] |
Nut
|
M8x21
|
| 10. |
ZM2814124
|
[1] |
Stair
|
|
| 11. |
ZM2814203
|
[1] |
Stair
|
12x25
|
| 12. |
ZM2810334
|
[4] |
Screw
|
M10x25
|
| 13. |
ZM2810334
|
[2] |
Screw
|
M10x25
|
| 14. |
VOE930842
|
[6] |
Plain washer
|
10,5
|
| 15. |
VOE14370970
|
[6] |
Lock nut
|
M10
|
| 16. |
ZM2813120
|
[1] |
Plate
|
|
| 17. |
ZM2812989
|
[2] |
Plate
|
|
| 18. |
ZM2810331
|
[6] |
Screw
|
M8x25
|
| 19. |
ZM2807849
|
[1] |
Rear Section
|
|
| 20. |
ZM8097262
|
[2] |
Screw
|
M20x1,5x90
-1910124/-1920244
|
| 20. |
VOE11306752
|
[2] |
Hexagon screw
|
1910125-/1920245-
|
| 21. |
VOE11306748
|
[4] |
Washer
|
|
| 22. |
VOE11306749
|
[4] |
Washer
|
C21
|
| 23. |
ZM8097262
|
[2] |
Screw
|
M20x1,5x90
-1910124/-1920244
|
| 23. |
ZM8096969
|
[2] |
Screw
|
M20x90, 1910125-/1920245-
|
| 24. |
VOE14375330
|
[4] |
Washer
|
21
|
| 25. |
VOE11306512
|
[2] |
Lock nut
|
M20x1,5
-1910124/41920244
|
| 25. |
VOE982489
|
[2] |
Lock nut
|
VM20, 1910125-/1920245-
|
| 26. |
VOE11306484
|
[1] |
Lubricating nipple
|
CM10x1
|
| 27. |
ZM2811408
|
[1] |
Bolt with chain
|
|
| 28. |
VOE15210170
|
[1] |
Bolt
|
|
| 29. |
VOE11305249
|
[1] |
Lock pin
|
12x55
|
| 30. |
ZM2813544
|
[2] |
Washer
|
4 mm
|
| 31. |
ZM2813543
|
[2] |
Washer
|
2 mm
|
| 32. |
ZM2813287
|
[1] |
Bolt
|
|
| 33. |
ZM2804589
|
[1] |
Screw
|
M16x100
|
| 34. |
ZM2801368
|
[1] |
Nut
|
M16
|
| 35. |
ZM2801814
|
[2] |
Pin
|
|
| 36. |
ZM2801815
|
[2] |
Striker plate
|
|
| 37. |
VOE997446
|
[4] |
Hexagon screw
|
M12x30
|
| 38. |
VOE11306272
|
[REQ] |
Washer
|
0,50 mm
|
| 39. |
VOE14370919
|
[REQ] |
Washer
|
1,00 mm
|
| 40. |
VOE11306270
|
[REQ] |
Washer
|
2,50 mm
|
| 41. |
ZM2813407
|
[1] |
Holder
|
|
| 42. |
VOE997434
|
[2] |
Hexagon screw
|
M10x20
|
| 43. |
VOE983304
|
[2] |
Hexagon nut
|
M10
|
| 44. |
VOE982489
|
[2] |
Lock nut
|
1910125-/1920245-
|
| 45. |
ZM2815175
|
[1] |
Dissemination, left-hand
|
SPECIAL
|
| 46. |
ZM2815176
|
[1] |
Dissemination, right-hand
|
SPECIAL
|
| 47. |
ZM2810334
|
[16] |
Screw
|
M10x25, SPECIAL
|
| 48. |
VOE14370970
|
[16] |
Lock nut
|
M10, SPECIAL
|
![]()
