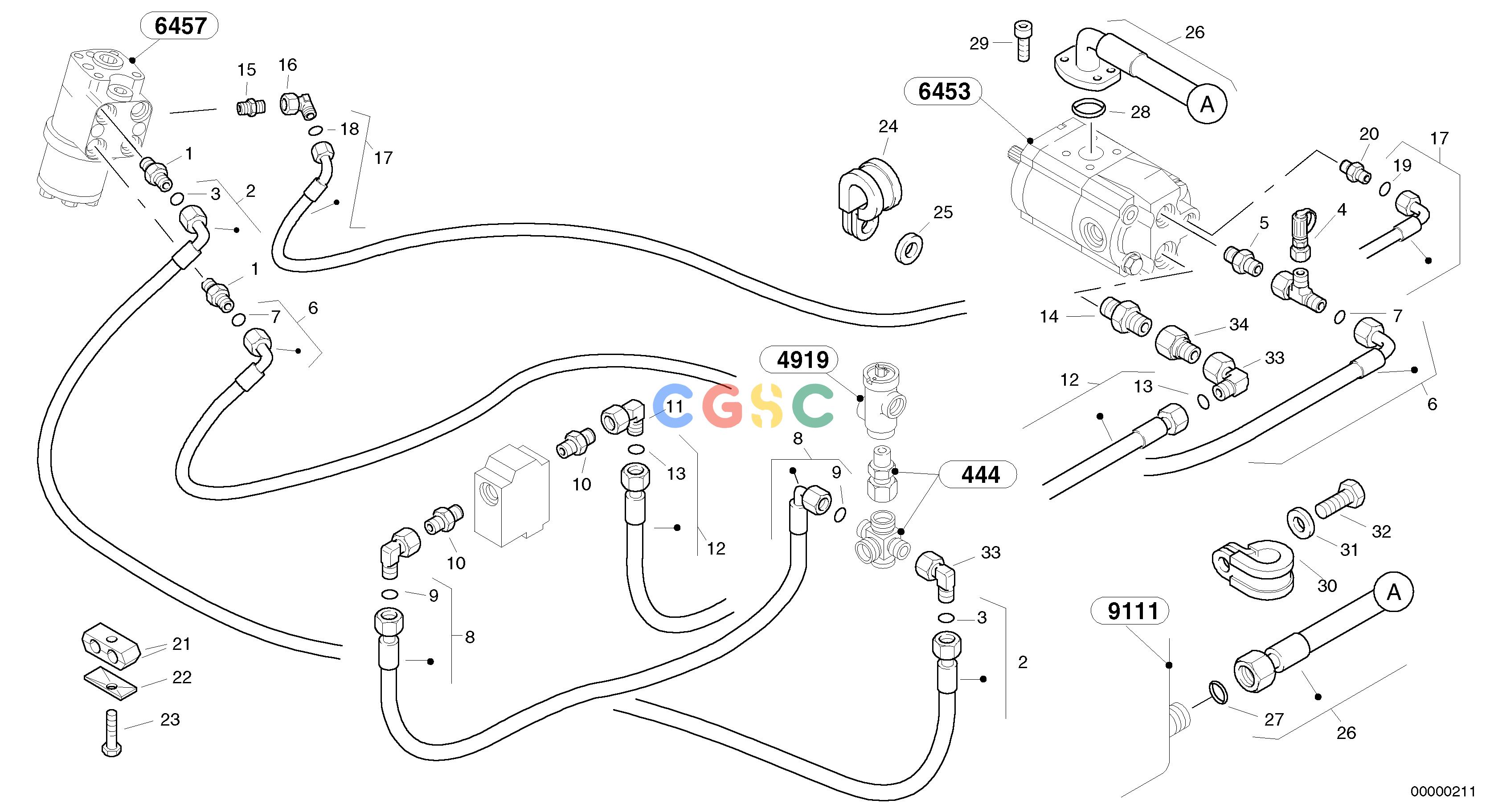

沃尔沃零件查询L40 Steering-hydraulic equipment - rear vehicleTYPE 191, 192 SER NO - 10001910001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11305361
|
[2] |
Nipple
|
|
| 10. |
ZM7091971
|
[2] |
Nipple
|
L15
|
| 11. |
ZM8092741
|
[1] |
Angular fitting
|
L15
|
| 12. |
VOE11305322
|
[1] |
Hose assembly
|
|
| 13. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 14. |
VOE11306490
|
[1] |
Nipple
|
|
| 15. |
ZM2812484
|
[1] |
Nipple
|
|
| 16. |
VOE13963371
|
[1] |
Nipple
|
L8
|
| 17. |
ZM2814815
|
[1] |
Hose
|
|
| 18. |
ZM2259051
|
[1] |
O-ring
|
6,5x1,5
|
| 19. |
ZM1089232
|
[1] |
O-ring
|
|
| 2. |
ZM2812027
|
[1] |
Hose
|
|
| 20. |
VOE11306488
|
[1] |
Fitting
|
|
| 21. |
VOE11305384
|
[1] |
Clamp
|
|
| 22. |
ZM4343143
|
[1] |
Plate
|
|
| 23. |
VOE14370277
|
[1] |
Hexagon screw
|
M8x40
|
| 24. |
VOE14371733
|
[1] |
Clamp
|
60x25
|
| 25. |
VOE960148
|
[1] |
Plain washer
|
B10,5
|
| 26. |
ZM2812547
|
[1] |
Hose
|
-1910109
|
| 26. |
ZM2813360
|
[1] |
Hose
|
1910110-
|
| 27. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 28. |
ZM7099975
|
[1] |
O-ring
|
25x2,5, -1910109
|
| 3. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 28. |
VOE11707740
|
[1] |
O-ring
|
1910110-
|
| 29. |
ZM7096458
|
[4] |
Screw
|
M6x16, -1910109
|
| 29. |
VOE11305407
|
[4] |
Allen Hd Screw
|
M8x20, 1910110-
|
| 30. |
ZM2096850
|
[1] |
Clip
|
|
| 31. |
VOE11305837
|
[1] |
Washer
|
B 8,4
|
| 32. |
ZM7095370
|
[1] |
Screw
|
M8x16
|
| 33. |
ZM8092741
|
[2] |
Angular fitting
|
L15
|
| 34. |
VOE11305566
|
[1] |
Reduction nipple
|
|
| 4. |
ZM2807417
|
[1] |
Testing sleeve
|
|
| 5. |
ZM2812482
|
[1] |
Nipple
|
|
| 6. |
ZM2812028
|
[1] |
Hose
|
|
| 7. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 8. |
ZM2800528
|
[1] |
Hose
|
|
| 9. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
![]()
