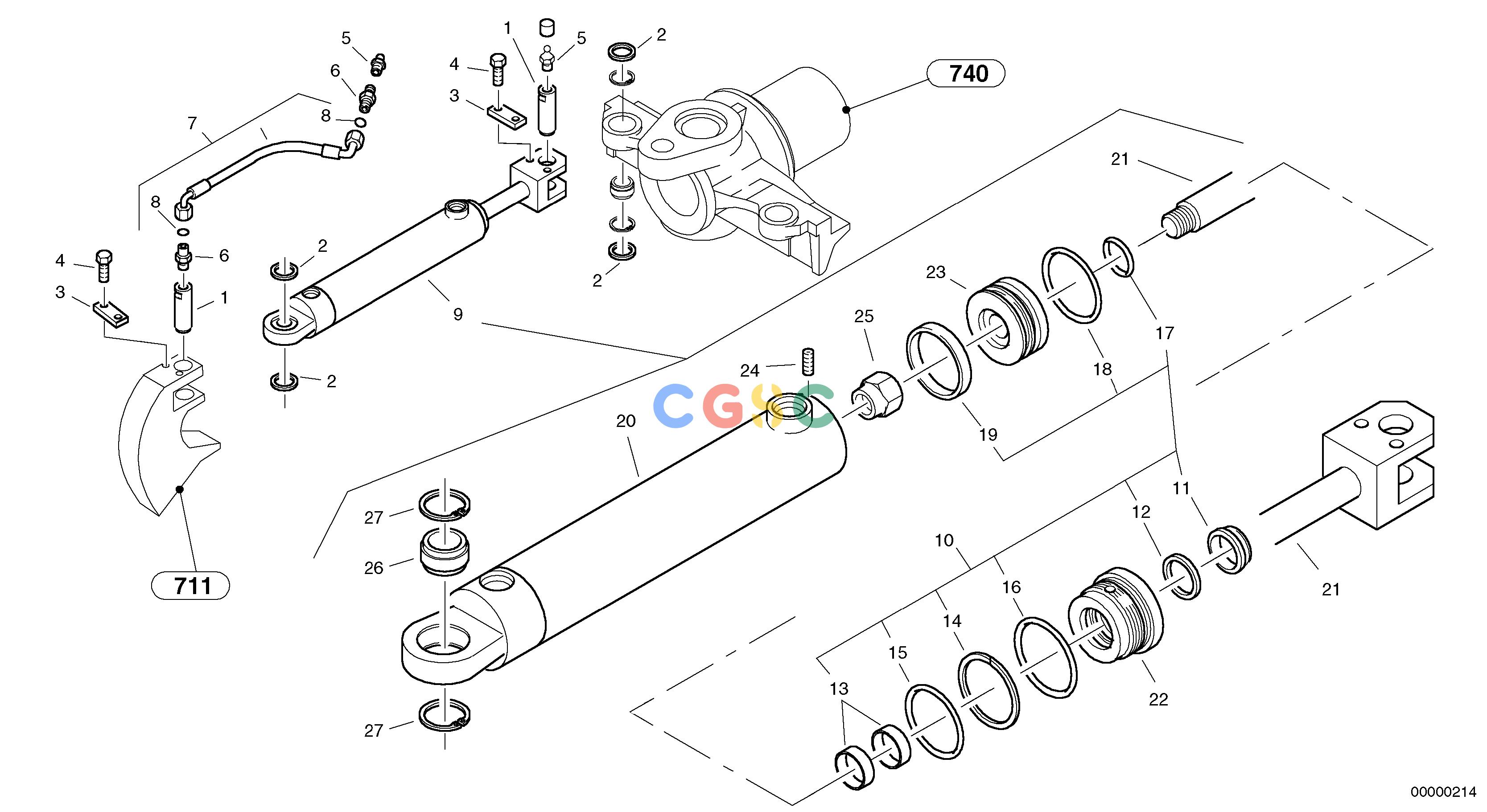

沃尔沃零件查询L40 Steering cylinderTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE16278337
|
[2] |
Bolt
|
|
| 9. |
ZM2808059
|
[1] |
Steering cylinder
|
|
| 10. |
ZM2906622
|
[1] |
Gasket set
|
|
| 11. |
ZM2193540
|
[1] |
Wiper ring
|
|
| 12. |
ZM2902205
|
[1] |
Gasket
|
|
| 13. |
ZM2906616
|
[2] |
Guide ring
|
|
| 14. |
ZM2223790
|
[1] |
Ring
|
|
| 15. |
ZM2079481
|
[1] |
O-ring
|
|
| 16. |
ZM2906617
|
[1] |
O-ring
|
|
| 17. |
ZM2906619
|
[1] |
O-ring
|
|
| 18. |
ZM2906620
|
[1] |
Piston gasket
|
|
| 2. |
ZM2807920
|
[REQ] |
Adjusting washer
|
1,00 mm
|
| 19. |
ZM2906621
|
[1] |
Guide ring
|
|
| 20. |
ZM2906613
|
[1] |
Cylinder tube
|
|
| 21. |
ZM2906614
|
[1] |
Piston rod
|
|
| 22. |
ZM2906615
|
[1] |
Guide bushing
|
|
| 23. |
ZM2906618
|
[1] |
Piston
|
|
| 24. |
ZM2285799
|
[1] |
Plug
|
|
| 25. |
ZM2902199
|
[1] |
Safety nut
|
|
| 26. |
VOE183433
|
[1] |
Spherical plain bearing
|
GE30
|
| 27. |
ZM2906623
|
[2] |
Safety ring
|
|
| 2. |
ZM2811160
|
[REQ] |
Adjusting washer
|
3,00 mm
|
| 3. |
ZM2810797
|
[2] |
Locking plate
|
|
| 4. |
ZM7095370
|
[4] |
Screw
|
M8x16
|
| 5. |
VOE14023568
|
[2] |
Lubricating nipple
|
AM10x1
|
| 6. |
ZM7091978
|
[2] |
Nipple
|
L6MB
|
| 7. |
ZM2812032
|
[1] |
Hose
|
|
| 8. |
ZM8098911
|
[2] |
O-ring
|
4x1,5
|
![]()
