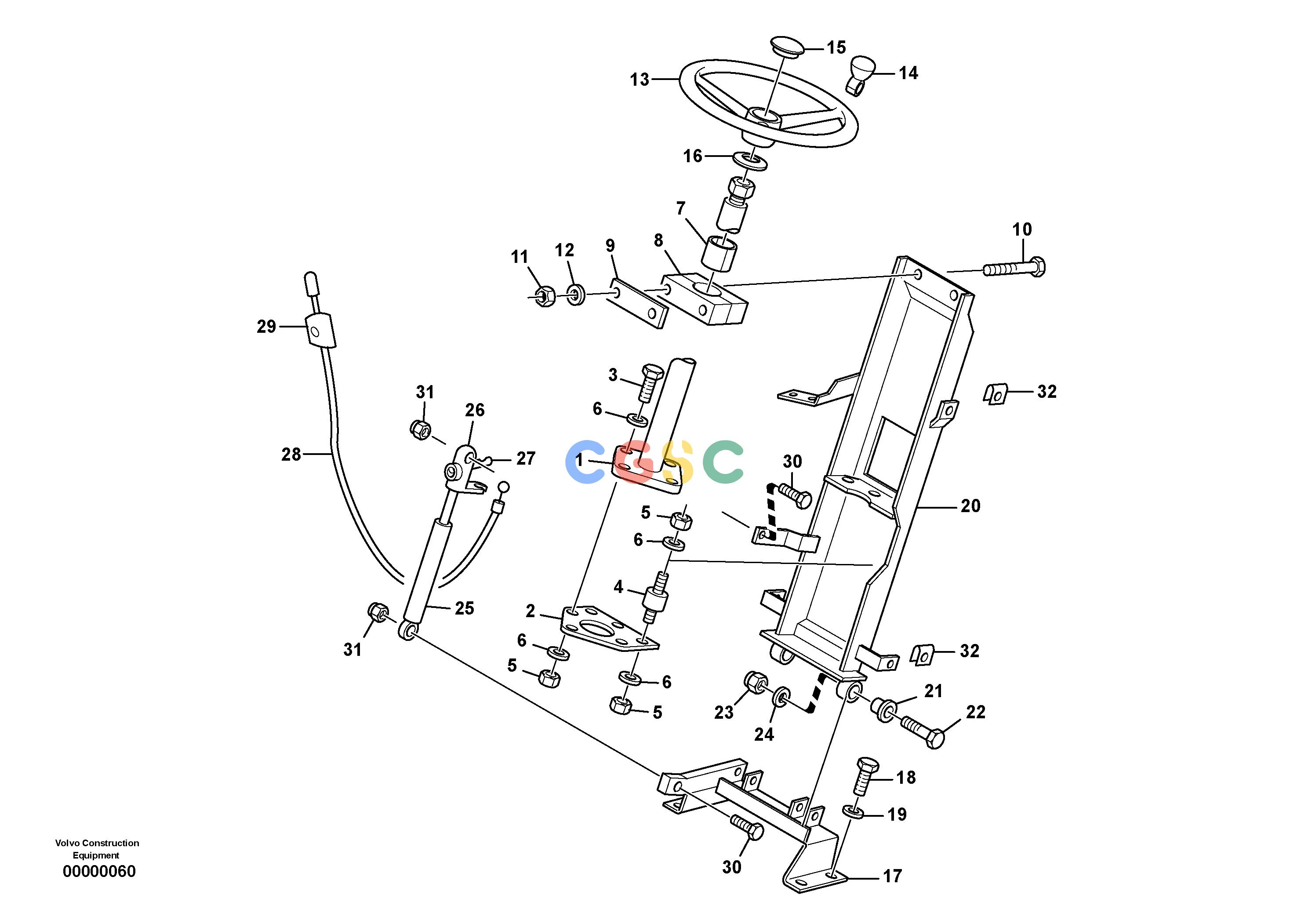

沃尔沃零件查询L40 Steering assemblyTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE2906629
|
[1] |
Steering column
|
|
| 10. |
ZM7096045
|
[2] |
Screw
|
M10x90
|
| 11. |
ZM7098002
|
[2] |
Nut
|
M10
|
| 12. |
VOE960148
|
[2] |
Plain washer
|
B10,5
|
| 13. |
VOE15206493
|
[1] |
Steering wheel
|
|
| 14. |
VOE15176373
|
[1] |
Knob
|
|
| 15. |
VOE14371493
|
[1] |
Cap
|
|
| 16. |
ZM2908523
|
[1] |
Ring
|
|
| 17. |
ZM2906631
|
[1] |
Support bridge
|
|
| 18. |
VOE983242
|
[4] |
Hexagon screw
|
M8x20
|
| 19. |
VOE20460271
|
[4] |
Lock washer
|
A8
|
| 2. |
ZM2906630
|
[1] |
Intmd Plate
|
|
| 20. |
ZM2906632
|
[1] |
Strg Col Cover
|
|
| 21. |
ZM2906633
|
[2] |
Bushing
|
|
| 22. |
ZM2906634
|
[2] |
Fitting Screw
|
|
| 23. |
VOE981315
|
[2] |
Lock nut
|
M12
|
| 24. |
VOE11306826
|
[2] |
Spring ring
|
A12
|
| 25. |
ZM2906635
|
[1] |
Strg Whl Adj
|
|
| 26. |
ZM2907424
|
[1] |
Release button
|
|
| 27. |
ZM2907427
|
[1] |
Lever
|
|
| 28. |
ZM2907426
|
[1] |
Wire
|
|
| 29. |
ZM2907425
|
[1] |
Release mechanism
|
|
| 3. |
VOE11307042
|
[3] |
Hexagon screw
|
M10x35
|
| 30. |
VOE983244
|
[2] |
Hexagon screw
|
M8x30
|
| 31. |
ZM8098397
|
[2] |
Nut
|
M8
|
| 32. |
ZM2906639
|
[4] |
Nut
|
|
| 4. |
ZM2805283
|
[2] |
Buffer
|
|
| 5. |
ZM7098002
|
[4] |
Nut
|
M10
|
| 6. |
VOE960148
|
[6] |
Plain washer
|
B10,5
|
| 7. |
ZM2806372
|
[1] |
Rubber bush
|
|
| 8. |
ZM2805720
|
[2] |
Clamp shoe
|
|
| 9. |
ZM2806373
|
[1] |
Plate
|
|
![]()
