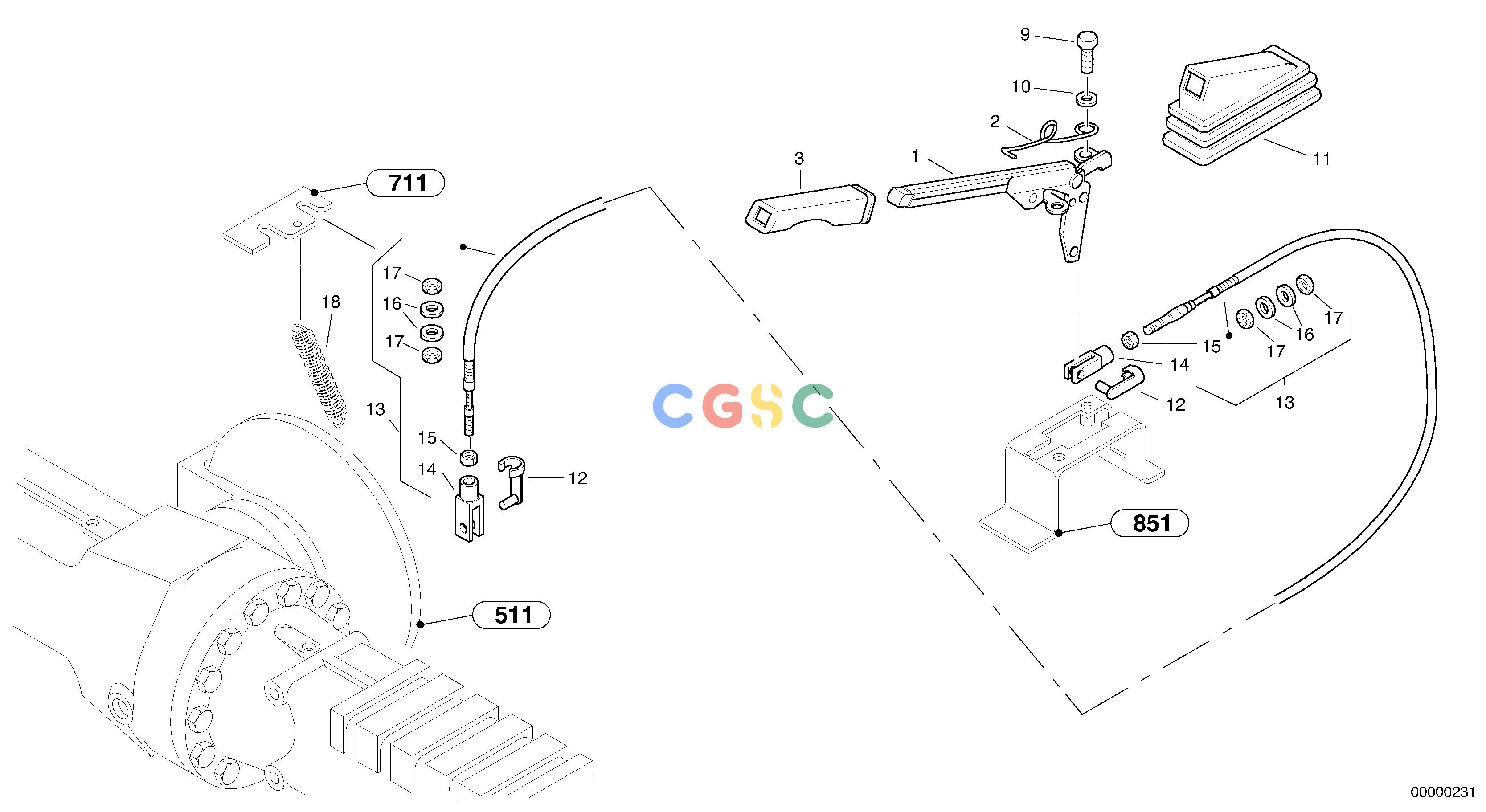

沃尔沃零件查询L40 Hand brakeTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2808934
|
[1] |
Handbrake lever
|
|
| 15. |
ZM7098010
|
[2] |
Nut
|
M8
|
| 16. |
VOE11306295
|
[4] |
Washer
|
B13
|
| 17. |
ZM7098077
|
[4] |
Nut
|
M12x1
|
| 18. |
VOE11315002
|
[1] |
Tension spring
|
199
|
| 2. |
ZM2805381
|
[1] |
Spring
|
|
| 3. |
ZM2808931
|
[1] |
Handle
|
|
| 9. |
VOE983243
|
[2] |
Hexagon screw
|
M8x25
|
| 10. |
VOE11307560
|
[2] |
Washer
|
B8,4
|
| 11. |
ZM2812121
|
[1] |
Bellow
|
|
| 12. |
VOE11306787
|
[2] |
Yoke Bolt
|
8x32
|
| 13. |
ZM2807863
|
[1] |
Wire Control
|
|
| 14. |
ZM7091356
|
[2] |
Yoke end
|
G8x32
|
![]()
