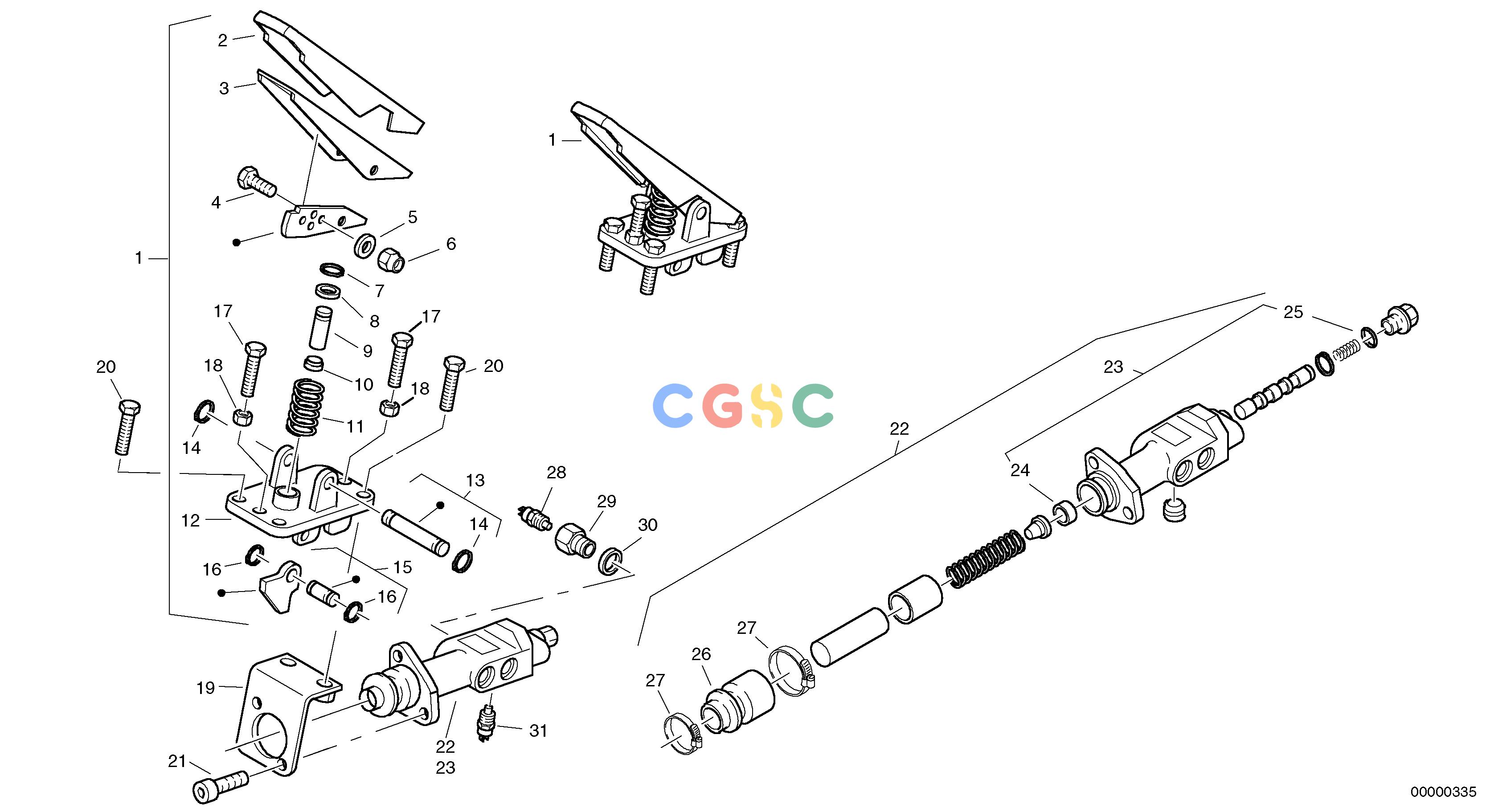

沃尔沃零件查询L40 Foot brake valveTYPE 191, 192 SER NO - 10001910001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2810709
|
[1] |
Pedal, cpl.
|
|
| 10. |
ZM5242093
|
[1] |
Scraper
|
|
| 11. |
ZM5242092
|
[1] |
Spring
|
|
| 12. |
ZM5242088
|
[1] |
Plate
|
|
| 31. |
VOE14370894
|
[1] |
Pressure switch
|
|
| 13. |
ZM5230772
|
[1] |
Bolt
|
|
| 14. |
VOE914446
|
[2] |
Snap ring
|
12x1
|
| 15. |
ZM5242090
|
[1] |
Bolt
|
|
| 16. |
ZM7094955
|
[2] |
Ring
|
10x1
|
| 17. |
VOE983244
|
[2] |
Hexagon screw
|
M8x30
|
| 18. |
VOE982116
|
[2] |
Hexagon nut
|
BM8
|
| 19. |
ZM2811740
|
[1] |
Holder
|
|
| 2. |
ZM2907553
|
[1] |
Plate
|
|
| 20. |
VOE983244
|
[4] |
Hexagon screw
|
M8x30
|
| 21. |
VOE11305407
|
[2] |
Allen Hd Screw
|
M8x20
|
| 22. |
ZM2801609
|
[1] |
Brake valve
|
|
| 23. |
VOE11998444
|
[1] |
Sealing kit
|
|
| 24. |
ZM2903266
|
[1] |
Seal
|
A8x18x5
|
| 25. |
ZM2903267
|
[1] |
O-ring
|
11x2
|
| 26. |
ZM5239492
|
[1] |
Bellow
|
|
| 27. |
ZM2903270
|
[2] |
Hose clamp
|
|
| 28. |
ZM2810114
|
[1] |
Switch
|
|
| 29. |
VOE11306957
|
[1] |
Lock plug
|
|
| 3. |
|
[1] |
Pedal Lever
|
|
| 30. |
VOE13947622
|
[1] |
Plane gasket
|
A16x20
|
| 4. |
ZM7095321
|
[1] |
Screw
|
|
| 5. |
ZM7098659
|
[1] |
Washer
|
A8
|
| 6. |
ZM8098397
|
[1] |
Nut
|
M8
|
| 7. |
VOE914448
|
[1] |
Snap ring
|
14x1
|
| 8. |
ZM2903265
|
[1] |
Spring Plate
|
|
| 9. |
ZM5242091
|
[1] |
Pin
|
|
![]()
