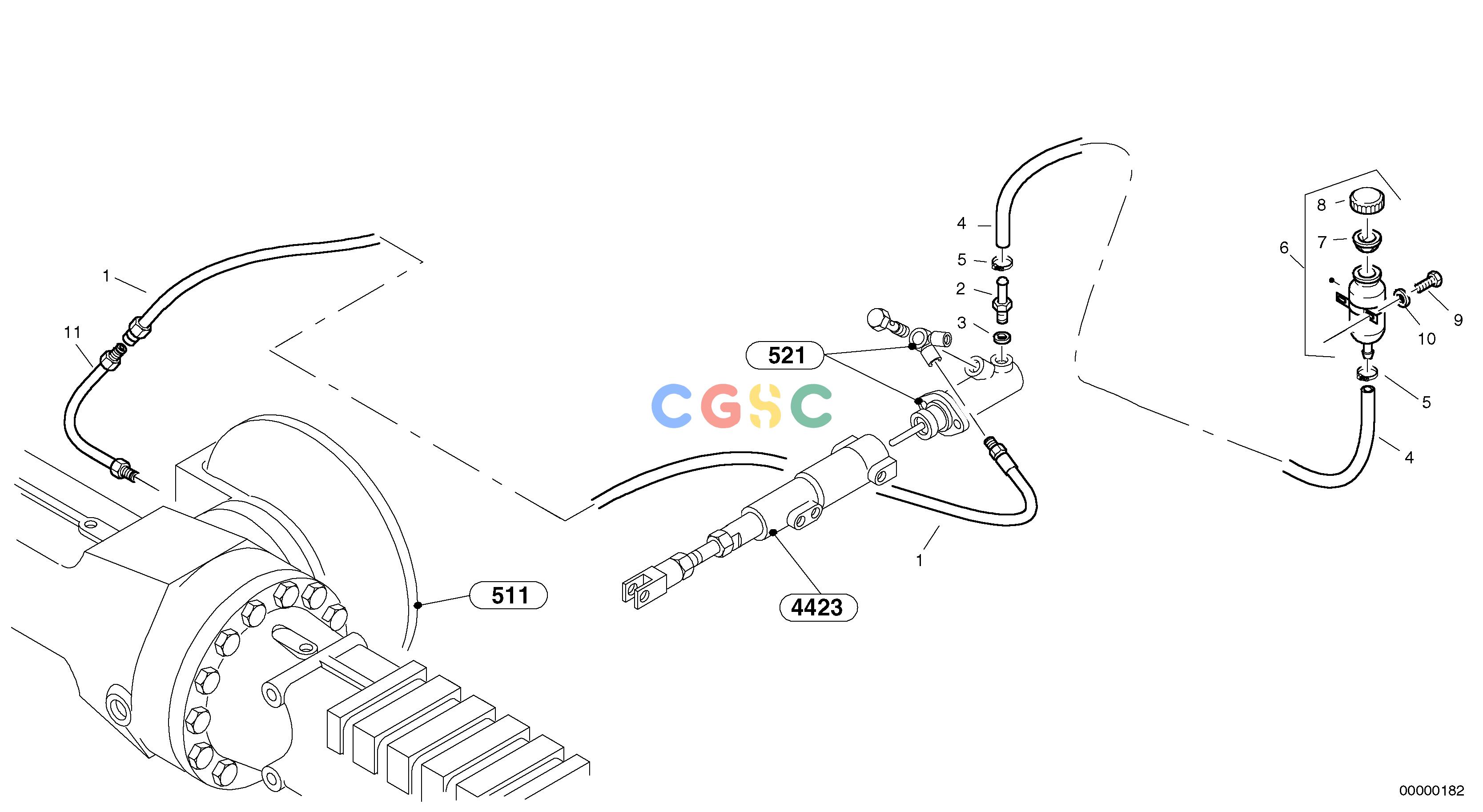

沃尔沃零件查询L40 Brake linesTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11306478
|
[1] |
Brake hose
|
BE10x2000
|
| 2. |
ZM2812009
|
[1] |
Pipe end
|
|
| 3. |
VOE13947282
|
[1] |
Gasket
|
A12x18
|
| 4. |
ZM4383202
|
[1] |
Hose
|
L = 1170MM
|
| 5. |
ZM2060781
|
[2] |
Clip
|
12x9
|
| 6. |
VOE11306479
|
[1] |
Expansion tank
|
|
| 7. |
ZM2188960
|
[1] |
Screen
|
|
| 8. |
ZM2188970
|
[1] |
Closure
|
|
| 9. |
VOE13946544
|
[2] |
Screw
|
M6x16
|
| 10. |
VOE955892
|
[2] |
Plain washer
|
B6,4
|
| 11. |
VOE11306480
|
[1] |
Brake pipe
|
|
![]()
