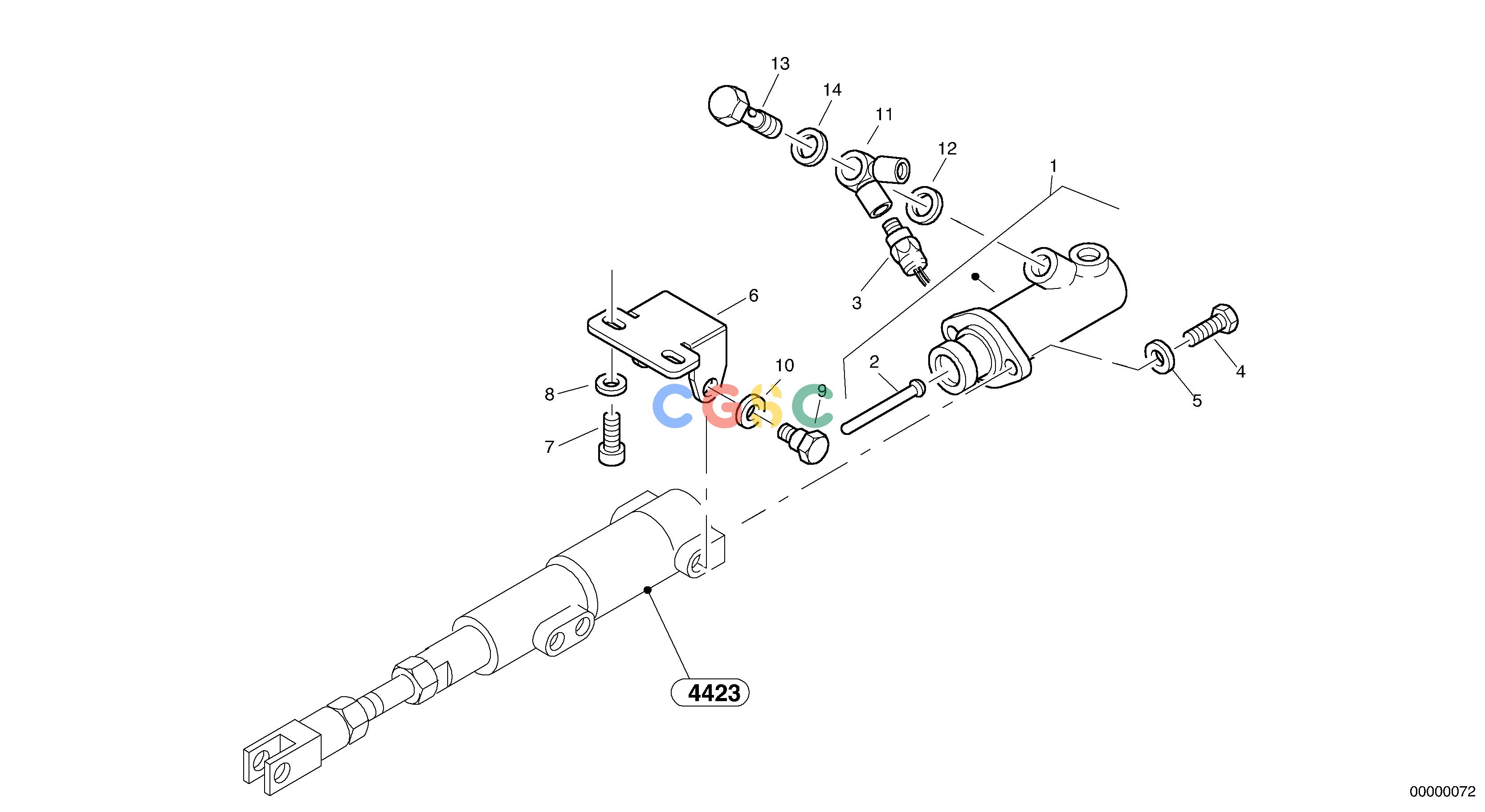

沃尔沃零件查询L40 Brake cylinderTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2814128
|
[1] |
Brake cylinder
|
|
| 10. |
ZM2807632
|
[1] |
Ring fitting
|
|
| 11. |
VOE13947282
|
[1] |
Gasket
|
A12x18
|
| 12. |
ZM2807630
|
[1] |
Hollow screw
|
|
| 13. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 2. |
ZM2812008
|
[1] |
Control plunger
|
|
| 3. |
VOE14370894
|
[1] |
Pressure switch
|
|
| 4. |
VOE983242
|
[2] |
Hexagon screw
|
M8x20
|
| 5. |
ZM2812006
|
[1] |
Holder
|
|
| 6. |
ZM7096548
|
[2] |
Screw
|
M10x20
|
| 7. |
VOE960148
|
[2] |
Plain washer
|
B10,5
|
| 8. |
ZM2812007
|
[2] |
Bolt
|
|
| 9. |
VOE13955900
|
[2] |
Washer
|
A17
|
![]()
